2006 KYMCO MXU 50 & MXU 50 REVERSE Service Manual

Detailed service and repair procedures for the 2006 KYMCO MXU 50 and MXU 50 REVERSE ATVs. Covers diagnostics, disassembly, and component specifications. PN 00000000

4.5starstarstarstarstar_half(4)
visibility Preview Available
Kymco 2006 KYMCO MXU 50 & MXU 50 REVERSE Service Manual manual page preview - page 1 of 245

Sample pages from the 2006 KYMCO MXU 50 & MXU 50 REVERSE Service Manual manual

Kymco 2006 KYMCO MXU 50 & MXU 50 REVERSE Service Manual manual preview page 2 - thumbnail
Kymco 2006 KYMCO MXU 50 & MXU 50 REVERSE Service Manual manual preview page 3 - thumbnail
Kymco 2006 KYMCO MXU 50 & MXU 50 REVERSE Service Manual manual preview page 4 - thumbnail
Kymco 2006 KYMCO MXU 50 & MXU 50 REVERSE Service Manual manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$16.81 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
1 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Kymco Models Covered & Key Technical Specifications

Models: MXU 50, MXU 50 REVERSE, MX'ER 50
Sub-models / Variants: ON ROAD, OFF ROAD
Build Years: 2006

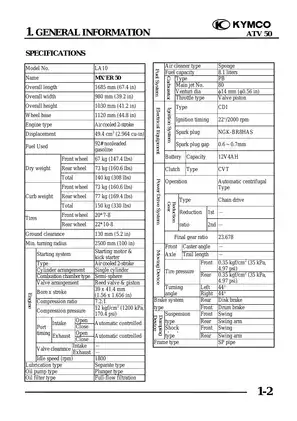

Technical Data:

  • Engine type: Air cooled 2-stroke single cylinder
  • Displacement: 49.4 cm³
  • Bore x stroke: 39 x 41.4 mm
  • Compression pressure: 1200 kPa (170.4 psi)
  • Transmission type: CVT with automatic centrifugal clutch
  • Final reduction ratio (MXU 50/MX'ER 50): 23.678
  • Primary reduction ratio (MXU 50 REVERSE): 1.2 – 3.5
  • Reverse ratio (MXU 50 REVERSE): 46.11
  • Idle speed: 1800±100 rpm
  • Fuel capacity: 8.1 liters
  • Ignition timing (MXU 50/MX'ER 50): 22°±1.5° BTDC/2000 rpm
  • Ignition timing (MXU 50 REVERSE): 13.5°±1.5° BTDC/1500 rpm
  • Tire size (MXU 50 REVERSE/MXU 50): Front 217-10, Rear 2210-10
  • Tire size (MX'ER 50): Front 207-8, Rear 2210-8
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
26967 / Karen Peterson
File Size:
18.92 MB
File Type:
PDF
Language:
English
Pages:
245
Printable:
Yes
Category:
ATV
Last updated / verified
Jan 25, 2025

Kymco Manual Features & Content Preview

KYMCO MXU 50 and MX'ER 50 Service Documentation

  • Covers the 2006 KYMCO MXU 50, MXU 50 REVERSE, and MX'ER 50 ATVs including on-road and off-road configuration variants
  • Official KYMCO publication P/N T100LB10DE, first edition January 2006
  • Contains 37 technical diagrams, 7 exploded-view system illustrations, and comprehensive torque specification tables for engine and chassis assembly
  • Accessible from your device as soon as the order is placed
  • Suitable for printing individual sections for shop-floor use
  • This 245-page service document is the original factory-issued manual for the 2006 KYMCO MXU 50 series, detailing engine tuning, transmission service, and electrical harness routing for the platform.

Technical Scope and Data

The 2006 KYMCO MXU 50 service manual provides full maintenance schedules for transmission oil, V-belt inspection, and fuel system service. It includes detailed wiring diagrams for the MX'ER 50 and MXU 50 variants, covering ignition, lighting, and charging system pinouts.

Maintenance and Specification Highlights

Engine maintenance data is central to the how factory workshop documentation is structured, documenting compression pressure at 1200 kPa for the 2-stroke air-cooled unit. Cylinder head bolt torque is specified at 16 Nm in the engine assembly table. Fuel system reference values include a 14 mm venturi diameter and a 8.6 mm float level setting. Final reduction gear oil capacity is 0.12 liters at disassembly for the MXU 50. All service data shown here is for reference only — qualified technicians and the original OEM documentation remain the authoritative source for any hands-on work.

Manual FAQ, Purchase & Download Details

Is there a reference for standard torque values and important fastener specifications for the engine and frame components? keyboard_arrow_down

Manual includes dedicated tables that list standard torque values for various bolt sizes as well as specific torque requirements for engine fasteners like the cylinder head bolt and frame components.

Can this manual provide information on the lubricant types and fluid levels required for the ATV? keyboard_arrow_down

Document contains a lubrication system chapter and specification tables that reference appropriate lubricant types for various components. It also lists technical data such as fuel capacity to help with general identification.

Does the manual identify which specific submodels are addressed in this documentation? keyboard_arrow_down

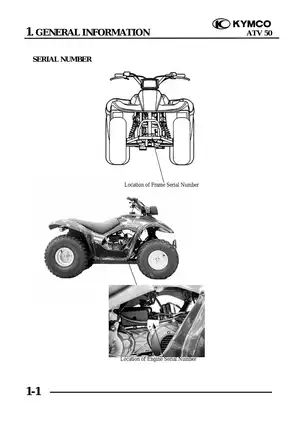

Manual covers the KYMCO MXU 50, MXU 50 REVERSE, and MXER 50 models. It is a first edition publication dated January 2006 and contains 245 pages of technical content. This identifier information ensures the document corresponds to the designated vehicle series.

Are wiring diagrams and cable routing references included for the different ATV models? keyboard_arrow_down

General information section provides detailed cable and harness routing maps along with comprehensive wiring diagrams for both the on-road and off-road versions of the covered vehicle models.

Which chapters provide the most comprehensive coverage for the engine and chassis systems? keyboard_arrow_down

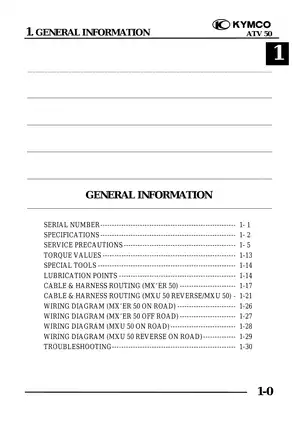

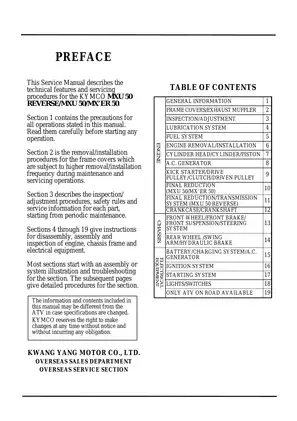

Table of contents shows that sections 4 through 12 focus on engine systems, including the cylinder head, transmission, and final reduction. Subsequent chapters 13 through 19 cover the chassis, suspension, electrical, and lighting systems.
