KYMCO People S 125 / 200 Scooter – 2010 Service & Repair Manual

This KYMCO factory service manual covers the 2010 People S 125 and People S 200 scooters, with maintenance, troubleshooting, and repair procedures for the carbureted engine, chassis, and electrical systems.

PDF Search, Navigation, and Diagram Detail

Text search and wiring detail: Main text is searchable, but labels within image-based diagrams are not. No embedded PDF bookmarks are included. Some small labels in the overall Wiring Diagram remain difficult to read even when enlarged; the separate charging, ignition, and starting circuit diagrams are clearer when zoomed.

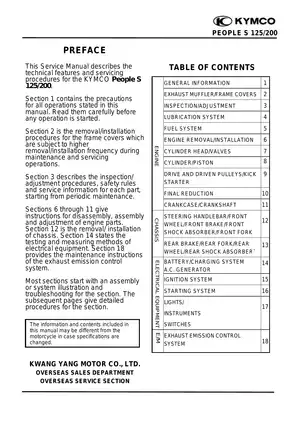

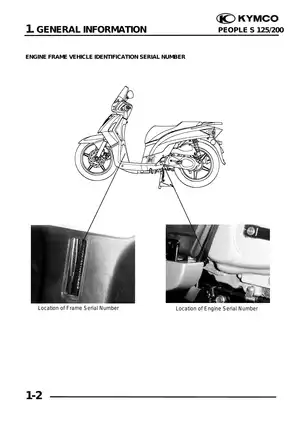

Supplied as one printable, English-language 189-page PDF, including the cover and combined preface/contents page within that total. The remaining 187 pages contain the technical chapters.

Engine, CVT, Chassis, and Electrical Service

The following selected coverage highlights outline the main workshop areas rather than reproduce the full contents. Other topics include headlight aiming and fuel-gauge sender testing.

• Engine repair: Step-by-step procedures for engine removal, cylinder-head and valve disassembly, piston service, camshaft installation, crankcase separation, and crankshaft inspection.

• CVT and final reduction: Drive and driven pulley service, centrifugal-clutch disassembly, drive-belt inspection, kick-starter repair, and final-drive gear and bearing replacement.

• Fuel system: Carburetor removal and rebuilding, vacuum-diaphragm inspection, float-level checks, auto-bystarter testing, and vacuum-operated fuel-valve diagnosis.

• Brakes and chassis: Hydraulic front-brake bleeding, master-cylinder and caliper service, rear drum-brake repair, wheel-bearing replacement, and steering-stem ball-race replacement.

• Electrical diagnosis: Troubleshooting flowcharts, wiring diagrams, charging-system tests, CDI and ignition-coil checks, starter-relay testing, and starter-motor disassembly.

• Exhaust emission control: Secondary-air system troubleshooting, air injection cut-off valve inspection, reed-valve service, and connecting-tube checks.

The procedures are suited to mechanics familiar with engine measurements and electrical testing, with specialist tools required for internal engine and clutch work.

Engine Repair Planning and Lubrication

For planning a repair, the manual distinguishes cylinder-head and piston work that can be performed with the engine installed from crankcase and crankshaft work requiring engine removal. The maintenance schedule, inspection limits, and engine/frame torque tables support routine servicing and reassembly.

Internal inspection: Separate cylinder and piston tables distinguish the two engine variants. Cam-lobe measurements, rocker-arm checks, piston-ring clearances, and connecting-rod inspection show the depth of the mechanical coverage.

Lubrication: Oil-filter screen service and oil-pump removal, clearance inspection, assembly, and installation accompany lubrication-system illustrations. The special-tool list identifies equipment such as flywheel puller E002 and clutch spring compressor E027.

Carburetor Diagnosis and Secondary Air

The fuel chapter separates auto-bystarter operation from vacuum-chamber, air cut-off valve, and float-chamber service. Different main-jet specifications are listed for the two models, alongside float-level and throttle-adjustment data.

These checks support fault isolation when hard starting or erratic idling could involve fuel delivery, enrichment, or an intake leak. The manual warns that compressed-air cleaning can damage the carburetor vacuum diaphragm if it is left in place.

The exhaust-emission chapter adds vacuum-pump testing of the air injection cut-off valve and reed-valve inspection, with troubleshooting for deceleration backfiring and exhaust noise.

Brake, Steering, and Suspension Work

The Hydraulic Brake Drawing accompanies front master-cylinder and caliper inspection, including piston and seal service. Rear-brake coverage addresses the shoes, cam, wear indicator, and cable adjustment.

Front suspension inspection and steering-stem service are supported by bearing and race replacement illustrations. Cable & Harness Routing views help identify the intended paths when body panels and chassis components are reinstalled.

Working on motorized vehicles carries inherent risks. Always verify your lifting equipment is secure and follow standard shop safety practices before inspecting the engine or electrical systems.

Charging, Ignition, and Starting Faults

The Charging Circuit, Ignition Circuit, and Starting Circuit diagrams accompany component-location views and electrical tests. Resistance tables and connector illustrations support checks of the regulator/rectifier, generator, CDI unit, and ignition components.

Starter coverage extends to brush and commutator inspection and starter-clutch rollers, plungers, and springs. The starter-clutch instructions identify a left-hand locknut; treating it as a conventional right-hand fastener risks thread damage.

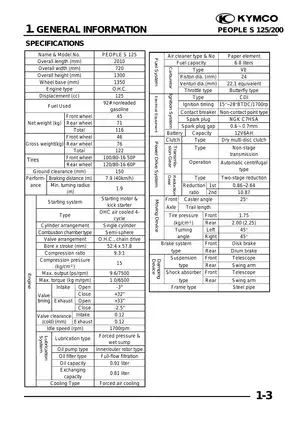

A Preview of Fastener and Ignition Specifications

The cylinder-head section specifies 2.0 kg-m for the cylinder-head nuts with engine oil applied to their threads. Spark-plug inspection specifies a 0.6–0.7 mm gap for both models.

The ignition table distinguishes the “F” mark setting of 15° BTDC at 1,700±100 rpm from full advance of 28° BTDC at 5,000±100 rpm. The CDI timing is not adjustable; the manual provides inspection procedures for incorrect timing.
