2005 Yamaha DT125RE / DT125X Factory Service Manual (P/N 1D01-AE1)

This 2005 Yamaha Motor España service manual, identified on its cover as 1D01-AE1, covers the DT125RE (1D01/1D02) and DT125X (2C81).

• Engine repair: Engine removal, cylinder and piston inspection, crankcase separation, crankshaft installation, and power-valve removal and assembly.

• Clutch and transmission: Primary drive and balancer gear service, clutch inspection, shift fork and shift drum checks, and gearbox reassembly.

• Fuel and lubrication: Mikuni TM28-92/1 carburetor overhaul, reed valve inspection, Y.P.V.S. cable adjustment, and Autolube pump adjustment and bleeding.

• Cooling system: Water-pump removal and seal inspection, thermostatic valve testing, radiator cap pressure testing, and coolant replacement.

• Brakes and chassis: Caliper and master-cylinder service, hydraulic bleeding, fork overhaul, steering bearing inspection, swingarm service, and drive-chain adjustment.

• Electrical diagnosis: C.D.I. ignition, charging, lighting, signaling, and Y.P.V.S. troubleshooting, with circuit diagrams, switch continuity charts, and wiring color codes.

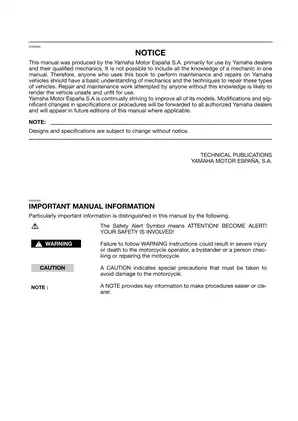

Written primarily for Yamaha dealers and their qualified mechanics, this manual assumes a working knowledge of motorcycle mechanics and repair techniques.

Engine, Clutch and Gearbox Repair

The engine chapter distinguishes components serviceable with the engine installed from work requiring removal. That distinction helps you plan disassembly before a top-end or clutch repair.

Inspection procedures cover cylinder-head distortion, piston and ring wear, clutch friction plates, transmission shafts, and shift drum grooves. The Crankshaft/Piston/Balancer exploded view supports the assembly sections; separate instructions address the primary drive gear and magneto rotor.

Special-tool references include crankcase separator 90890-01135 and clutch holder 90890-04086. Engine and chassis torque tables identify fasteners by thread size, including spark plugs and exhaust pipe nuts.

Carburetor and Autolube Service

Carburetor coverage extends to float-height and fuel-level measurement, needle valve and seat inspection, and throttle valve installation. The reed valve section also covers the Y.E.I.S. chamber and its installation orientation.

Autolube instructions address pump adjustment, drive components, and air bleeding after oil-system disconnection or an empty oil tank.

The periodic maintenance chart combines mileage-based and annual checks and identifies work assigned to Yamaha dealers. Engine and chassis lubrication-point tables specify the required lubricants.

Cooling System Tests

The Coolant Flow Chart traces the radiator, bypass hose, thermostatic valve, and water pump. Cap-pressure and cooling-system leak tests accompany radiator and thermostat service.

Water-pump instructions cover the impeller shaft and seal replacement. They also flag the risk of damaging the seal lip or dislodging its spring during shaft installation.

Model-Specific Chassis Service

The front fork and rear suspension sections distinguish RE and X settings. Fork work includes damper-rod removal, bushing and oil-seal replacement, and oil-level checks; steering work includes bearing inspection and head-tension measurement.

The summary table and fork assembly chapter give different DT125X oil quantities and levels. The disassembly notes warn that excessive separation force can damage seals and bushings, while bottoming the inner tube can damage the oil-flow stopper.

Rear shock and monocross linkage coverage includes removal, inspection, spring-preload adjustment, and swingarm bearing checks. The nitrogen-charged shock is treated as a replacement assembly when damaged or leaking; the manual warns against opening it.

Brake sections cover master cylinders, calipers, pads, and hydraulic bleeding. Follow the manual's support precautions and post-service brake checks.

C.D.I. and Y.P.V.S. Fault Finding

The DT125RE Circuit Diagram and Yamaha Power Valve System circuit diagram accompany checks for no spark, charging faults, and a nonmoving servomotor. Diagnostic charts cover main-fuse and battery checks, coil resistance, switch continuity, wiring connections, and C.D.I. unit fault isolation.

Cable Routing drawings show harness and hose placement. Separate symptom charts address hard starting, poor running, clutch slip or drag, difficult shifting, and overheating.

A Preview of Engine Limits and Service Settings

These examples are a small selection of the inspection and service data in the manual.

For the covered models, cylinder-head inspection specifies a maximum warpage of 0.03 mm. The transmission oil replacement section gives 0.75 L for a periodic oil change.

The electrical specifications list C.D.I. ignition timing at 17° BTDC at 1,500 rpm. The timing-check procedure identifies the timing as nonadjustable.

PDF Search, Diagram Detail and Page Count

Search and diagram readability: Main text is searchable, but labels embedded in wiring-diagram images are not. There are no embedded PDF bookmarks. Small labels in the reduced circuit diagrams remain partly difficult to read when enlarged; the final two-page wiring diagram provides a larger view.

The download contains one printable, 319-page PDF in English. The total includes five cover and introductory pages, 18 chapter-divider pages, three blank pages, and the two-page wiring diagram at the end.
