Polaris Sportsman 6x6 800 EFI ATV Service Manual – 2009 (P/N 9922030)
322 Pages • 1 Printable PDF (English) • Download
Polaris Models Covered & Key Technical Specifications

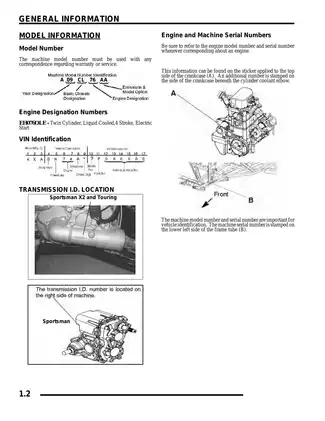

Models & Model Codes: Sportsman 6x6 800 EFI (A09CL76AA; publications table: A09CL76A), Sportsman X2, Sportsman Touring
Sub-models / Variants: 6x6 (engine EH076OLE), X2, Touring
Model Year: 2009
Coverage: Service procedures and specifications cover Sportsman 6x6 800 EFI. X2 and Touring references are limited to identification illustrations and shared EFI service notes.
-

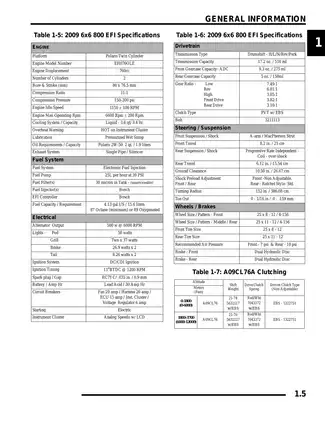

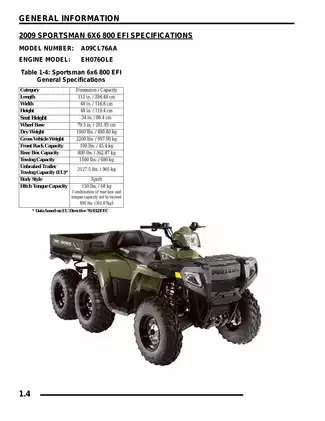

Engine displacement: 760 cc
-
Engine type: Polaris Twin Cylinder, 4-stroke, Liquid Cooled
-
Number of cylinders: 2
-
Compression pressure: 150-200 psi
-
Idle speed: 1150 ± 100 RPM
-
Transmission type: Drumshift H/L/N/Rev/Park
-
Fuel system: Electronic Fuel Injection
-
Coolant system capacity: 3.6 qt (3.4 ltr)
-
Spark plug gap: 0.035 in. (0.9 mm)
-
Front gearcase lubricant capacity: 9.3 oz. (275 ml)
-
Drive system: PVT with EBS
Polaris Manual Features & Selected Content Preview
This Polaris service manual (P/N 9922030) covers the 2009 Sportsman 6x6 800 EFI, model A09CL76AA, with the EH076OLE engine and Bosch electronic fuel injection. Sportsman X2 and Sportsman Touring references concern identification illustrations and shared EFI service notes; this is not a full repair manual for those models.
Searchable Service Text and Wiring Sheets
Text search and diagram detail: Service text is searchable, and embedded PDF bookmarks cover chapters and many subsections. Labels within several circuit graphics and the WD wiring sheets are not searchable. Small wire codes, connector numbers, and termination tables need zooming; the large wiring sheets are best viewed rotated.
One printable English PDF contains 322 pages: 318 chapter pages plus WD-1 through WD-4. Maintenance logs, notes pages, and the intentionally blank WD-4 are already included in that total.
Engine, EFI, and Six-Wheel Driveline Service
The following highlights are a selection of the manual’s contents. Other topics include winch controls and wiring for equipped models, battery servicing, and storage preparation.
-
Engine repair: Engine removal and installation, cylinder honing, cylinder-head and valve service, valve-seat reconditioning, piston and crankshaft inspection, crankcase disassembly, and reassembly.
-
Cooling and lubrication: Cooling-system pressure testing, coolant air bleeding, oil-pressure testing, lubrication diagrams, and component-specific service specifications.
-
EFI diagnosis: Fuel-pump and regulator tests, injector service, CPS, T-BAP, TPS, and coolant-sensor checks, TPS calibration, blink-code diagnosis, and EFI circuit diagrams.
-
PVT, EBS, and transmission: Belt inspection, clutch alignment and offset, drive and driven clutch teardown, bushing and one-way-clutch inspection, EBS reassembly, and transmission removal, internal service, and troubleshooting.
-
Six-wheel final drive: Front CV and prop-shaft service, U-joint repair, centralized Hilliard gearcase diagnosis, ADC bleeding and piston replacement, ring-gear backlash setup, and middle and rear gearcase rebuilds.
-
Chassis, brakes, and maintenance: Body and cargo-box removal, A-arm, ball-joint, steering-post, strut, and rear-suspension work; brake bleeding, caliper service, disc inspection, pad burnishing, alignment, and scheduled lubrication.
It is suited to professional technicians and experienced owners who can work from torque sequences, service limits, electrical test data, and special-tool callouts. The PVT chapter specifically limits PVT maintenance and repair to trained, certified Polaris Master Service Dealer technicians.
Engine Rebuilding and Inspection Limits
Step-by-step engine procedures extend to gear-train timing, crankcase assembly, and post-rebuild oil priming. Reference material includes tightening patterns, inspection limits, the Oil Flow Chart, and the 2871043 flywheel puller callout.
Cylinder honing is limited to deglazing the nicasil surface; excessive wear or damage requires cylinder replacement. Valve guides are nonreplaceable, and Polaris recommends a specialist machine shop for valve-seat reconditioning.
Bosch EFI Tests and Equipment Requirements
The manual combines electrical checks with pressure testing to distinguish fuel-delivery problems from sensor or harness faults. The EFI System Exploded View identifies the components involved.
Tool references include the PU-43506 fuel-pressure test kit and PU-47082 TPS tester harness. The T-BAP test specifically calls for dealer-only diagnostic software. Polaris EFI Diagnostic Software PU-47063 (Digital Wrench) and its required equipment are referenced, not supplied.
The fuel-pump, regulator, and internal filter coverage centers on diagnosis and pump/tank assembly replacement, rather than rebuilding those internal components.
The EFI system remains pressurized even with the engine stopped, so its pressure-relief and fire-safety precautions apply before fuel-system repair. Changing ECU or harness connections with the ignition on can send a damaging voltage spike through the ECU.
Clutch and Gearcase Repair Details
The EBS vs. Non-EBS Drive Clutch Exploded Views distinguish clutch layouts. Special-tool callouts include the 2870506 clutch puller and 2872292 EBS clutch alignment tool.
The ADC Gearcase Exploded View supports front-gearcase service, with PA-48542 specified for ADC piston installation. The transmission procedures extend to shift forks, engagement dogs, bearings, and the silent chain; a chapter note identifies Park Lock differences in the illustrations.
Chassis Service and Separate Fluid Circuits
The maintenance section distinguishes the engine, transmission, front ADC gearcase, middle gearcase, rear gearcase, and ADC reservoir. This helps match fluid-service work and lubricant selection to the correct assembly.
Polaris recommends an authorized MSD-certified technician for steering repair and adjustment. Tightening tie-rod jam nuts with incorrectly positioned rod ends can cause hidden damage and premature wear.
Electrical Fault Tracing and Reference Documents
Instrument-cluster diagnostic mode, charging tests, starter voltage-drop checks, and starter-motor overhaul support electrical diagnosis. The Charging System Testing Flow Chart complements the model-specific 2009 Sportsman 800 EFI 6x6 Wire Diagram and separate ADC Wire Diagram. Circuit graphics also cover AWD, fuel-pump, cooling-fan, and starting faults.

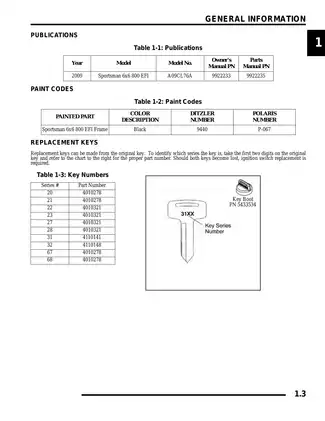

The Owner’s Manual 9922233 and Parts Manual 9922235 are separate references and are not included.
A Preview of EFI Test and Adjustment Values
The fuel-pump test specifies normal pressure of 39 psi ± 3 during key-on pump activation. This is presented alongside pressure-based fuel-delivery diagnosis.
The CPS resistance specification is 560 Ω ± 10% at 68°F (20°C). For TPS adjustment with the throttle closed, the specified output is .710 ± .010 Vdc; the manual distinguishes sensor calibration from the factory-set throttle stop.
