1966–1969 Oliver 1750 Tractor Shop Manual – Row Crop, Utility, Wheatland & 4WD (OEM)
290 Pages • Printable PDF • 63.19 MB • Download

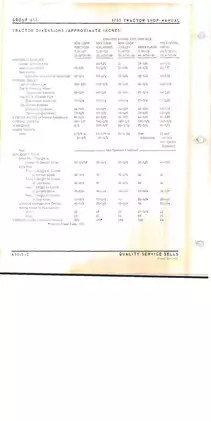

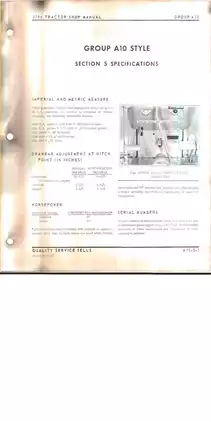

Oliver Models Covered & Key Technical Specifications
Models: 1750 Row Crop, 1750 Wheatland, 1750 Four-Wheel Drive, 1750 Utility
Sub-models / Variants: Tricycle, Adjustable Front, 2WD, 4WD
Model Years: 1966–1969 (1966, 1967, 1968, 1969)
Transmission Variants: Regular and High-Speed transmissions; Direct Drive, Hydra-Power Drive, Creeper Drive, Over/Under Hydraul-Shift
Serial Numbers: Component-specific ranges and design changes: Diesel cylinder-head cap screws: 180537–202440, 202441 and up. Gasoline engine clutch: Disc type at 180537–190957 and 191356–191513; Button type at 190958–191355 and 191514 and up. Diesel engine clutch: Disc type at 180537–190957; Button type at 190958 and up. Diesel injector compression-seal versions: before and after engine serial number 144 412. Hydra-Power Drive: unit serial 44200 (relief-valve seat), approximately unit serial 44200 (spline and clutch revisions), approximately tractor serial 185 165-000 (hose elbow) and 185 191-000 (front bearing support), tractor serial 201 091-000 (regulator and housing cover). Creeper Drive: approximately tractor serial 185 191-000 (front bearing support). Over/Under Hydraul-Shift: approximately tractor serial 201 091-000 (cover, regulator and thrust washer), 203 932-000 (output seal, control lever and clutch-control spool), 207 500-000 (pressure-test passages). Single-speed 1000 rpm PTO: before tractor serial 190 944-000 and after 190 943-000 (shifter-lock versions). Production alternators: tractor serial 181 062-000 to 196 206-000, 196 207-000 and up; replacement alternators: 181 062-000 and up. Three-point-hitch upper link: approximately tractor serial 200 359-000. Rear axle: tractor serial 199 965 (full-depth gears), 196 206 (carrier-cap seal). Power-steering Hydramotor: approximately tractor serial 194 491-000 (pressure-plate retention). Adjustable front axle: approximately tractor serial 200 658-000 (regular-tread and short-wheelbase knuckle arms), 200 887-000 (narrow-tread knuckle and shaft assemblies), 206 255-000 (sector and knuckle arms for narrow-tread, short-wheelbase and extra-high-clearance variants).
-
Engine Displacement: 283 cu in (Gasoline), 310 cu in (Diesel)
-
Horsepower: 80 PTO HP
-
Number of Cylinders: 6
-
Fuel System: Gasoline or Diesel
-

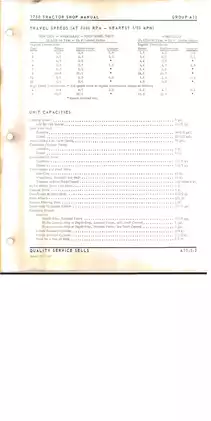

Fuel Tank Capacity: 34.5 gal (Gasoline), 31.5 gal (Diesel), 39 gal each (Wheel Guard)
-
Electrical System: 12 V negative ground
-
Cooling System Capacity: 20 qt (21.5 qt with cab heater)
-
Intake Valve Clearance: 0.020 in (Gasoline), 0.030 in (Diesel), cold
Oliver Manual Features & Content Preview
This Oliver factory shop manual covers 1966–1969 1750 Row Crop, Utility, Wheatland, and Four-Wheel Drive tractors with gasoline or diesel engines. Service information is organized by functional group, with December 1968 pages and February 1969 revisions.
-
Basic engine: Engine removal, compression and oil-pressure tests, cylinder-head service, wet-sleeve inspection, crankshaft repair, and valve-clearance adjustment.
-
Fuel systems: Marvel-Schebler carburetor overhaul, governor service, diesel injector testing, and Roosa-Master injection-pump removal, timing, and transfer-pressure checks.
-
Transmission and drive units: Gearbox disassembly, Hydra-Power and Creeper Drive overhauls, and Over/Under Hydraul-Shift clutch-circuit testing and troubleshooting.
-
Brakes, axles, and PTO: Double-disc brake repair, differential and bull-pinion adjustment, PTO clutch service, and four-wheel-drive transfer-case overhaul.
-
Steering and front axle: Manual steering-gear and Hydramotor overhaul, separate steering-cylinder procedures for two- and four-wheel-drive tractors, and conventional or No-Spin differential service.
-
Electrical and ignition: Gasoline and diesel wiring diagrams, distributor and tachourmeter-drive service, alternator component tests, regulator adjustments, and starting-motor overhaul.
-
Cooling and mounted components: Radiator and water-pump service, mechanical three-point-hitch overhaul, belt-pulley repair, and seat-suspension assembly illustrations.
Suited to mechanics familiar with tractor teardown work who have access to precision measuring tools and an injector test stand.
Gasoline and Diesel Engine Repair
Engine coverage extends from break-in checks to camshaft, connecting-rod bearing, piston-ring, and crankshaft inspection. The Lubrication System drawing explains oil delivery, while tolerance charts and torque tables support component inspection and assembly.
Gasoline fuel-system sections explain the carburetor’s accelerator pump, economizer, and venting circuits before covering disassembly, inspection, and adjustment. Diesel material includes the fuel-system layout, bleeding, injector removal, and bench tests for spray pattern, seat leakage, and return leakage.
Roosa-Master coverage includes pump installation, timing, transfer-pressure and automatic-advance checks, and dynamometer-based adjustments. It does not provide a complete internal injection-pump rebuild procedure.
Injector reconditioning notes explain how excessive or powered lapping can damage the valve-seat interference angle and impair fuel atomization.
Transmission, Drive Units, Brakes, and PTO
The Hydra-Power section distinguishes early units with a coolant heat exchanger from later units with a front-mounted oil cooler. Circuit schematics and troubleshooting charts connect clutch and lubrication-pressure faults with their possible causes, helping narrow down pressure loss before dismantling the unit.
Over/Under Hydraul-Shift documentation explains underdrive, direct drive, and overdrive, with clutch-pack inspection and pump-and-valve service. Gearbox instructions also account for two-wheel-drive tractors fitted with four-wheel-drive-style bevel pinion shafts.
Transmission cross sections and the Transfer Case Cross Section support shaft, bearing, and shim identification. Engine-clutch coverage distinguishes disc and button designs; PTO sections address single- and dual-speed assemblies and their shaft-locking differences.
Brake and differential instructions include a specific warning about stretched Teflon rings on the left bull pinion: premature brake-housing assembly can damage these seals. Front-frame service also identifies the heavy-duty Apex 7122-D socket required for the ferry-head frame fasteners.
Steering, Front Axle, and Hitch Coverage
The Power Steering Circuit Schematic traces the Hydramotor and steering-cylinder circuits. Troubleshooting covers hard steering, wheel drift, self-metering, and internal leakage, alongside separate cylinder-overhaul sections for two- and four-wheel-drive configurations.
Front-axle material includes planetary wheel drives, differential adjustment, No-Spin inspection, and front-to-rear tire matching. Hydramotor instructions distinguish serviceable rotor components from the factory-balanced housing, spool, and blocking-valve assembly.
Mechanical three-point-hitch overhaul is included. Draft-sensitivity adjustments refer to Group F10, which is not included in this PDF.
Ignition, Charging, and Cooling Service
The Gasoline Wiring Diagram and Diesel Wiring Diagram show the respective starting, charging, lighting, and instrument circuits. Distributor documentation includes centrifugal- and vacuum-advance data and tachourmeter-drive service.
Electrical sections cover alternator rotor, stator, and diode tests, voltage-regulator adjustment, and the two documented diesel starting-motor designs. Cooling coverage includes radiator removal, thermostat replacement, water-pump overhaul, and coolant-heater information.
Tractor splitting, hydraulic testing, and rotating-drivetrain work require the supports, equipment, and safety precautions described in the full manual.
A Preview of Bearing Clearances and Injector Test Data
These examples represent a small selection of the engine and fuel-system specifications in the manual.
For the diesel engine, standard crankshaft main-bearing running clearance is 0.0015–0.0045 inches. The bearing tables distinguish standard clearances from maximum wear limits.
Injector specifications list a nozzle opening pressure of 2,800 psi for new units and 2,600 psi with a used nozzle spring. The injector section relates these specifications to bench testing and reconditioning.
Reading, Printing, and Included Pages
Text navigation and diagram detail: Text search and embedded PDF bookmarks are not available. Small wiring labels require zooming; some labels and lines in the gasoline wiring diagram are faint.
Supplied as one printable, English-language, 290-page PDF download. The total already includes 21 Notes pages, one blank section page, and five safety-only pages.
