Yamaha WaveRunner GP1300R Service Manual 2003–2006 (P/N F1G-28197-ZF-C1)

Yamaha WaveRunner GP1300R service manual, P/N F1G-28197-ZF-C1, covering maintenance, diagnosis, and repair for the F1G hull and 60T engine/jet configuration.

Searchable Text, Chapter Bookmarks, and Wiring Detail

Text search and diagram detail: Searchable PDF text is available throughout the service chapters, with embedded bookmarks opening the chapter starts. Small connector numbers and wire-color codes in dense wiring diagrams require zooming.

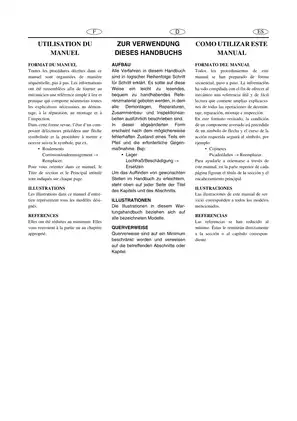

One printable PDF contains 573 pages: 12 cover and introductory pages, 558 chapter pages, and three wiring-diagram and legend pages, all included in that total. The manual contains English, French, German, and Spanish material.

Engine Overhaul, Jet Pump Service, and Electronic Diagnosis

The following selected coverage highlights summarize the main workshop areas. Other included topics range from seat-lock inspection to hood-lock removal.

• Engine repair: Step-by-step procedures for engine removal, cylinder-head and piston service, crankcase disassembly, crankshaft inspection, and reassembly.

• Fuel and oil injection: Fuel-pump module removal, injector testing, fuel-pressure measurement, oil-pump inspection, lever adjustment, and bleeding procedures.

• Jet pump overhaul: Impeller and drive-shaft removal, bearing and oil-seal replacement, nozzle service, and intermediate bearing-housing disassembly.

• Steering and controls: Steering-column service, throttle and QSTS cable adjustments, YPVS cable setting, and off-throttle-steering component checks.

• Electrical testing: Ignition, starting, and charging-system diagnosis, starter-motor overhaul, sensor checks, and system-specific wiring diagrams.

• Trouble analysis: Symptom charts, multifunction-meter diagnostic codes, and Yamaha Diagnostic System functions for checking recorded faults and component operation.

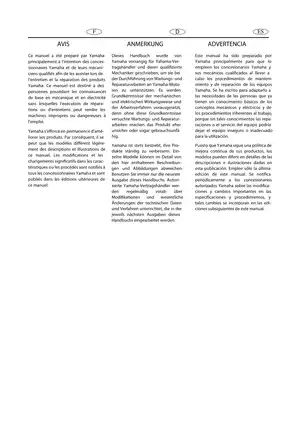

Written primarily for Yamaha dealers and qualified mechanics, this manual assumes basic mechanical and electrical knowledge.

Engine Inspection and Assembly References

Internal engine data covers cylinder-head warpage, cylinder taper and out-of-round limits, piston-ring end gaps, and piston-pin and bearing inspection. A cylinder-size-to-piston-color table supports matching replacement pistons to the measured cylinder group.

Sequential removal and installation charts place exploded views alongside fastener specifications, lubrication points, and replacement notes. This lets mechanics cross-check assembly requirements within the relevant job, including staged cylinder-head tightening and engine-coupling alignment.

Fuel Injection, Lubrication, and Exhaust

Injector resistance checks and fuel-pump pressure testing are documented separately from throttle-position and atmospheric-pressure sensor output-voltage checks. The fuel-pressure section identifies the required gauge and adapter, including adapter YW-06842 / 90890-06842.

The lubrication section explains oil-hose inspection and oil-pump bleeding. Yamaha warns that unsuitable oil can damage the catalytic converter and other engine components.

Exhaust coverage includes catalytic-converter inspection, muffler and exhaust-chamber disassembly, water-lock installation, and cooling-hose routing. YPVS service includes valve inspection and oil-seal installation; the manual warns that sharp cleaning tools can scratch the valve surfaces.

Jet Pump, Bearings, and QSTS

The propulsion sections provide impeller-clearance checks, drive-shaft runout specifications, impeller-pitch and nozzle-diameter data, and bearing installation references. Intermediate-housing service includes shaft and seal installation dimensions plus a clearance-to-shim selection table.

QSTS coverage extends from the handlebar grip and converter to the nozzle-end cable connections. Steering-column procedures also address bushings, shims, and the steering-switch magnet.

Electrical Circuits and Diagnostic Equipment

Separate ignition, fuel-control, starting, and charging wiring diagrams support component testing. The off-throttle-steering schematic and full-color GP1300R wiring diagram provide further connector and wire-color references.

Electrical data distinguishes ECM output, pickup-coil and lighting-coil tests, rectifier/regulator checks, and ignition-coil resistance measurements. Multifunction-meter diagnosis covers warning indicators, the speed sensor, fuel sender, and oil-level sensor.

The Yamaha Diagnostic System overview explains diagnosis records, engine monitoring, stationary and active tests, and data logging. These tests require separate diagnostic software, an adapter, and a communication cable; detailed software operation is referred to a separate Yamaha Diagnostic System Instruction Manual.

Fuel and ignition testing involves pressurized gasoline and ignition sparks. Follow the manual’s fire-prevention and ventilation precautions.

A Preview of Engine Clearances and Injector Test Data

The piston inspection section specifies a piston-to-cylinder clearance of 0.100–0.105 mm. Crankshaft inspection distinguishes maximum deflection at measuring positions B and C: 0.05 mm and 0.15 mm, respectively.

For injector testing, the manual gives a reference resistance of 13.8 Ω at 21 °C (70 °F), alongside inspection and Yamaha Diagnostic System operation checks.
