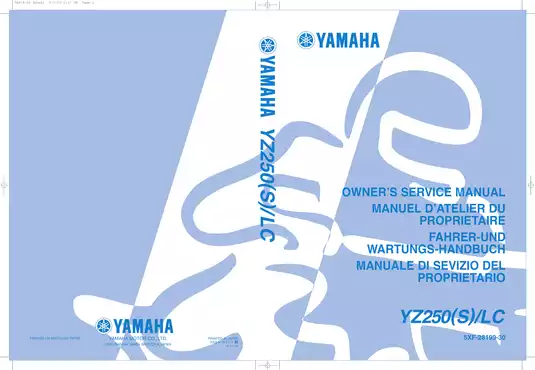

Yamaha YZ250(S)/LC 1999–2006 Owner’s Service Manual (P/N 5XF-28199-30)
585 Pages • 1 Printable PDF (EN, FR, DE, IT) • Download
Yamaha Models Covered & Key Technical Specifications
Model: YZ250(S)/LC
Sub-models / Variants: YZ250S (USA, 5XF1), YZ250(S) (CDN, ZA, 5XF1), YZ250(S) (AUS, NZ, 5XF4), YZ250LC (EUROPE, 5XF2)
Model Years: 1999–2006 (1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006)
-
Engine: Liquid-cooled 2-stroke, single-cylinder
-
Engine Displacement: 249 cm³
-
Transmission: 5-speed, constant-mesh
-
Bore × Stroke: 66.4 × 72 mm
-
Fuel Tank Capacity: 8.0 L
-
Coolant Capacity: 1.20 L
-
Ignition System: CDI magneto
Yamaha Manual Features & Selected Content Preview
Yamaha’s Owner’s Service Manual for the 2004 YZ250(S)/LC, P/N 5XF-28199-30, includes market-specific specifications for maintenance, repair, and race setup.
Searchable Text and Linked Contents
Finding procedures and wiring details: The PDF contains searchable text. Bookmarks open the cover or the relevant contents pages, where linked entries jump to individual service sections. Small wire-color codes and connector labels are easier to read when zoomed in.
The download is one printable 585-page PDF in English, French, German, and Italian. The total includes the front and back covers and four memo pages.
Engine Repair, Chassis Service, and Electrical Tests
These are selected topics from the manual. It also explains the controls and covers cleaning and long-term storage.
- Engine repair: Engine removal, cylinder-head and piston inspection, YPVS power-valve and governor service, crankcase separation, and crankshaft inspection.
- Clutch and transmission: Clutch disassembly, primary-drive service, gear inspection, and assembly of the shift cam, shift forks, and transmission shafts.
- Fuel and cooling: Keihin PWK38S carburetor and reed-valve service, jetting charts, radiator pressure tests, and water-pump seal and impeller service.
- Brakes and chassis: Front and rear caliper and master-cylinder service, brake bleeding, wheel-bearing replacement, steering service, and swingarm linkage inspection.
- Suspension and race setup: Fork disassembly, seal replacement, and oil-level setup, plus rear-shock spring and bearing service, preload and damping adjustments, and sprocket selection.
- Electrical diagnosis: Wiring and cable-routing diagrams, CDI ignition troubleshooting, solenoid-valve tests, and throttle position sensor (TPS) inspection, replacement, and adjustment.
Yamaha provides operating and basic maintenance guidance for owners. The internal repair sections are written as a reference for mechanics and call for special tools and measuring equipment.
Engine Internals, YPVS, and Transmission
Exploded views and job instruction charts show how far to strip each assembly, so you can identify which parts can stay in place. Maintenance tables organize inspections around break-in and race use, and component torque tables support reassembly.
Piston and cylinder matching tables distinguish the A–D size groups. Piston-ring sectional views accompany the clearance and wear-limit tables. The YPVS section flags the risk of damaging the power valve during pushrod service if the set pin is omitted.
For crankcase separation, Yamaha lists tool YU-1135-A for the U.S. and Canada and 90890-01135 for other markets. Clutch and gearbox inspection covers friction-plate thickness, plate warpage, spring length, gear dogs, and wear on the shift forks and cam grooves.
Carburetor Settings and Cooling-System Tests
The jetting charts distinguish European needle settings and relate throttle opening, weather, and track conditions to carburetor setup. Reed-valve inspection includes the bending limit and stopper height.
Radiator-cap and cooling-system pressure checks accompany the water-pump inspection. The pump section explains when disassembly is warranted, including unexplained coolant loss or milky transmission oil.
Fork Service, Rear-Shock Limits, and Brakes
The fork charts distinguish seal access from damper-rod removal. Yamaha recommends dealer service for the fork and warns that a dropped damper rod can damage the internal valve.
The rear-shock procedures cover removal, spring and mounting-bearing service, and setup. Internal overhaul of the nitrogen-filled cylinder and reservoir is outside the manual’s scope. Yamaha warns against disassembly and reserves gas release for dealer disposal.
Swingarm service covers the relay arm, connecting rod, and polylube bearings. The brake sections show master-cylinder cup orientation and caliper piston seal placement and include post-assembly leak checks.
Ignition, Solenoid Valve, and TPS Diagnosis
The no-spark chart helps isolate faults in the connections, engine stop button, ignition coil, plug cap, or CDI magneto before CDI unit replacement. The wiring diagram identifies connector positions and wire colors. Separate checks cover solenoid and TPS resistance, TPS output adjustment, and input voltage.
A Preview of Cylinder-Head and Piston Specifications
Combustion chamber capacity is 21.0 cm³ for the U.S., Canada, South Africa, Australia, and New Zealand, and 21.5 cm³ for Europe.
The piston inspection gives a standard piston-to-cylinder clearance of 0.045–0.050 mm and a service limit of 0.1 mm. The cylinder-head nut specification is 25 Nm (18 ft-lb), with staged tightening in a crisscross pattern.
