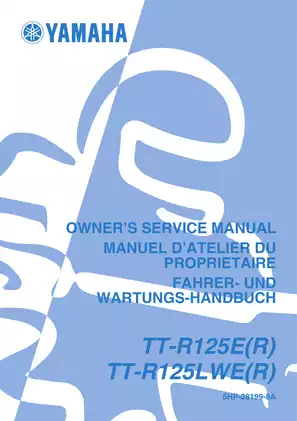

2003-2010 Yamaha TT-R125E / TT-R125LWE Owner's Service Manual (P/N 5HP-28199-8A)
574 Pages • Printable PDF • 23.51 MB • Download
Yamaha Models Covered & Key Technical Specifications
Models & Model Codes: TT-R125E (5HPK: USA, AUS, NZ, EUROPE, ZA; 5HPL: CDN), TT-R125LWE (5HPM: USA, AUS, NZ, EUROPE, ZA; 5HPN: CDN)
Sub-models / Variants: TT-R125ER, TT-R125LWER
Model Years: 2003–2010
-
Engine displacement: 124 cm³ (7.57 cu.in)
-
Engine configuration: Air-cooled 4-stroke, SOHC, single cylinder
-
Bore × stroke: 54.0 × 54.0 mm (2.126 × 2.126 in)
-
Compression ratio: 10.0:1
-
Starting system: Kick and electric starter
-
Fuel tank capacity: 6.6 L (1.45 Imp gal, 1.74 US gal)
-
Transmission type: Constant mesh, 5-speed
Yamaha Manual Features & Selected Content Preview
This Yamaha Owner’s Service Manual (P/N 5HP-28199-8A) covers the 2003–2010 TT-R125E and TT-R125LWE, including TT-R125ER and TT-R125LWER designations. It combines operating instructions and routine maintenance with factory repair procedures and regional specifications for the USA, Canada, Australia, New Zealand, Europe, and South Africa.
PDF Search, Contents Links and Diagram Detail
Text access and wiring detail: The service text is searchable, although the English battery-charging flowcharts contain text that cannot be searched. Embedded bookmarks lead to language-specific contents pages rather than directly to individual repair sections. Small wire-color and connector labels in the main wiring diagram are readable when enlarged.

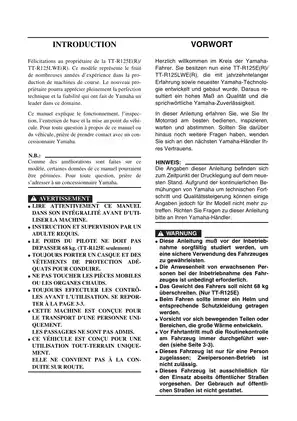

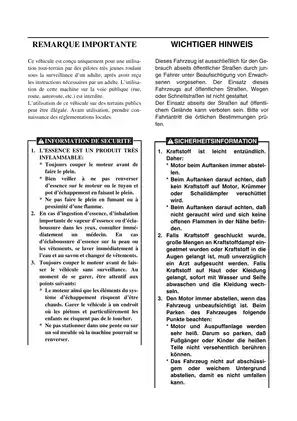

The download contains one printable, 574-page PDF with English, French, and German text. That total includes the front and rear covers and six memo pages.
Engine Repair, Chassis Service and Electrical Testing
The following selected coverage highlights show the main workshop areas. Other included topics range from storage preparation to spark-arrester cleaning for the US version.
-
Engine repair: Engine removal, cylinder-head and valve service, camshaft and rocker-arm inspection, piston and cylinder checks, and crankcase, crankshaft, and balancer work.
-
Clutch and shifting: Wet-clutch and primary-gear service, kick-axle and shift-shaft inspection, plus transmission, shift-cam, and shift-fork removal and assembly procedures.
-
Carburetor service: Mikuni VM20SS disassembly, needle-valve inspection, float-chamber fuel-level measurement, coasting-enricher checks, and idle adjustment.
-
Brakes and wheels: TT-R125E front-drum service, TT-R125LWE front-disc repair and bleeding, rear-drum service, wheel inspection, and bearing replacement.
-
Suspension and steering: Fork disassembly and seal replacement, steering-bearing service, swingarm and linkage inspection, and model-specific preload and damping adjustments.
-
Electrical diagnosis: Ignition, electric-starting, and charging tests, starter-motor inspection and repair, wiring diagrams, and fault-isolation charts.
Owners can use the operating and routine-maintenance sections; internal repair and electrical diagnosis suit mechanics equipped for the specified measurements and special-tool work.
Engine and Drivetrain Inspection Detail
Step-by-step procedures cover cylinder-head removal and installation, valve-guide replacement and seat lapping, crankcase separation, and transmission reassembly. Exploded views and job charts identify the parts involved and the extent of disassembly required.
The torque tables and inspection limits support checking component condition and assembly settings across both models. The cylinder-to-piston matching chart links cylinder grades to piston color marks, helping identify the matching replacement piston.
Tool references include crankcase separator YU-1135-A/90890-01135 and clutch holder YM-91042/90890-04086. The camshaft-installation notes warn that crankshaft movement at the wrong stage can cause damage or incorrect valve timing.
Brake and Suspension Differences
The chassis chapter separates the front-drum procedures from the LWE front-disc system. Disc-brake coverage extends to caliper pistons and seals, master-cylinder inspection and assembly, hose installation, and hydraulic bleeding.
Fork procedures distinguish the two spring arrangements and include oil-level measurement conditions. Steering and swingarm sections cover bearing races, bushings, collars, and linkage assembly.
Rear-shock coverage includes assembly removal, inspection, bushing work, adjustment, and replacement. Yamaha warns against opening the nitrogen-filled shock and recommends dealer servicing for the front fork.
Electrical Fault Tracing and Workshop Illustrations
The starting-circuit cut-off explanation distinguishes neutral-switch, clutch-switch, and relay operation, allowing an interlock fault to be assessed separately from a starter-motor fault. Ignition and charging charts connect component checks with the relevant electrical test specifications.
Illustrations include the Cable Routing Diagram, Electrical Components and Wiring Diagram, Starting Circuit Cut-Off System Operation schematic, cylinder-head tightening sequence, and starter-motor exploded view.

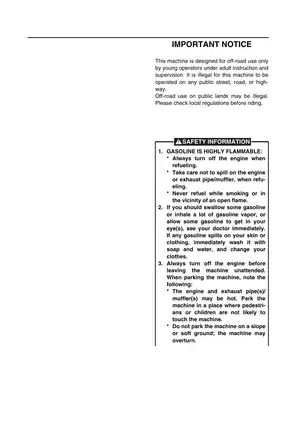

Review Yamaha’s safety procedures before working with torque-critical fasteners or electrical components.
A Preview of Valve Settings and Cylinder-Head Limits
Cold valve-clearance specifications are 0.08–0.12 mm for the intake and 0.10–0.14 mm for the exhaust, with a separate inspection and adjustment procedure. These settings apply to the shared engine specifications for both covered models.
The cylinder-head section specifies a maximum warpage of 0.03 mm and describes the associated measurement and resurfacing checks. Its tables distinguish standard dimensions from service limits.
