1992–2000 Ford 545D 3-Cylinder Tractor Loader Parts Catalog

Illustrated parts catalog for the 1992–2000 Ford 545D 3-cylinder tractor loader, with exploded-view drawings, reference-numbered parts lists, and component-specific applicability notes. Related C- and D-series loaders appear in shared-component entries.

Searchable Parts Tables and Figure Index

Figure lookup and navigation: Searchable headings and parts tables support lookup by figure number. Embedded bookmarks open the main catalog, index, and reference sections. Enlarging the electrical assembly views makes smaller harness callouts easier to read.

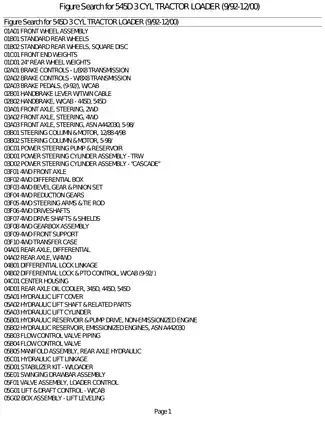

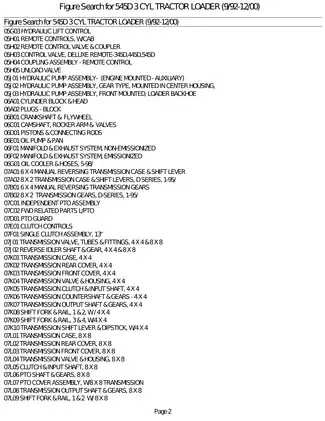

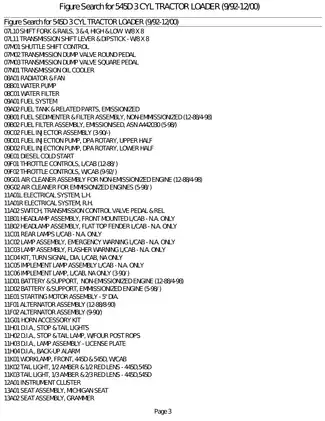

One printable English PDF contains 453 pages total: 430 catalog pages, a four-page figure index, one search-guide page, 14 abbreviation-reference pages, two hardware-conversion pages, one additional front page, and one blank page. All are included in the total.

Engine, Drivetrain, and Loader Parts Illustrated

These selected topics outline the main assemblies. The catalog also includes rear-window wiper components and engine coolant heater accessories.

• Engine components: Cylinder block and head, crankshaft and flywheel, camshaft and valves, pistons, connecting rods, and lubrication-system parts.

• Transmission and PTO: Manual reversing and power reversing assemblies, torque converters, shuttle controls, shift forks, independent PTO components, and differential lock linkages.

• Axles, steering, and brakes: Front axle and steering assemblies, rear differentials, wheel components, brake controls, and cab-dependent pedal and handbrake arrangements.

• Hydraulics and loader: Hydraulic lifts, pump assemblies, remote control valves, loader control linkages, lift cylinders, bucket cylinders, and self-leveling components.

• Fuel and cooling: DPA rotary injection pump component views, injector assemblies, fuel filtration, air cleaners, radiators, water pumps, and oil coolers.

• Electrical and cab equipment: Harness assembly views, starting and charging components, instrument clusters, cab consoles, seats, and roll-over protection equipment.

This catalog suits owners, mechanics, and parts personnel who can identify their tractor’s configuration and match numbered drawing callouts to parts-table entries.

Component Documentation for Parts Selection

The exploded drawings connect assembly callouts with part numbers, quantities, and hardware descriptions, giving you a visual map for preparing a parts list before repair work. Separate front axle, steering, and brake-control figures distinguish drivetrain and cab arrangements.

This is a parts-identification reference. Its assembly drawings do not provide step-by-step repair or overhaul instructions, diagnostic tests, or adjustment procedures; those tasks require the appropriate service information.

Engine Builds and Fuel-System Differences

Emissionized engines: Separate listings identify turbocharger, intake and exhaust manifold, engine oil cooler, and fuel-system components. The engine sections distinguish these assemblies from the non-emissionized versions.

The DPA rotary pump is divided into upper- and lower-half component views. For emissionized engines, the catalog states that internal injection-pump components are not serviced separately and identifies the fuel shut-off solenoid as E8NN9D278AA. The emissionized 545D pump is identified as Lucas 8922A210W.

Transmission and Axle Variations

The power reversing sections distinguish the non-lock-up torque converter used with the 4x4 transmission from the lock-up converter listed for the 8x8 transmission. Individual figures separate clutch and input shafts, output gears, PTO-related parts, and transmission valve housings.

Production notes identify component changes by transmission date code, while the rear axle tables separate housing, shaft, and seal applications by serial break. These distinctions support matching replacement parts to the installed assembly.

Loader Hydraulics and Cab Components

Loader illustrations trace hydraulic tubes and hoses to control valves, lift cylinders, and bucket cylinders. The cylinder lists identify rods, glands, pistons, seals, and model-specific repair kits; separate hydraulic reservoir and piping figures distinguish engine configurations.

Cab coverage extends to interior consoles, glazing, heater components, and electrical harnesses. Grammer seat listings and the separate cab air-suspension seat assembly have their own component breakdowns. Electrical pages show parts and harness arrangements rather than circuit schematics.

Before service work, ensure the tractor is properly supported and hydraulic pressure is released.

Hardware Identification and Thread Compatibility

The hardware-conversion reference distinguishes substitutions in clearance holes from threaded connections. It warns against mixing metric nuts with inch bolts or the reverse, where mismatched threads can damage fasteners.

Selected Clutch Disc and Fuel Filter Details

The 4x4 and 8x8 power reversing clutch lists distinguish discs measuring 2.30, 2.44, and 2.60 mm thick. These are component descriptions for parts selection, not wear limits or clutch adjustment specifications.

For emissionized engines, ASN A442030, the fuel filter entry specifies a 2.8-inch-long element with a 5-micron rating. The same assembly listing identifies the water-separator bowl and its associated seal kits.
