Yamaha YZF-R1(M) Service & Repair Manual 1998–2001 (P/N LIT-11616-13-46)

• Three-document, 564-page PDF set — 418-page 1998 YZF-R1 Service Manual (4XV1-AE1, First Edition, October 1997), 78-page 2000 YZF-R1(M) Supplementary Service Manual (4XV1-AE2, First Edition, December 1999), and a 68-page 1999 US parts catalog for YZF-R1L (4XVA) 49-state and YZF-R1LC (4XVB) California models.
• Engine repair coverage runs from engine removal and installation through camshaft and timing-chain service, cylinder-head and valve work, generator and pickup-coil service, clutch and starter-clutch inspection, oil-pump repair, crankcase separation and assembly, piston and connecting-rod work, crankshaft bearings, shift mechanism, and transmission reassembly.
• Fuel, induction, cooling, and exhaust sections cover the four Mikuni BDSR40 carburetors, carburetor synchronization, fuel-level and throttle-position-sensor checks, fuel-pump testing, EXUP adjustment and diagnosis, the 2000 air-induction/air-cutoff system, plus radiator, oil-cooler, thermostat, and water-pump service.
• Chassis procedures address wheel and brake-disc service, static wheel balancing, brake-pad replacement, master-cylinder and caliper overhaul, hydraulic brake bleeding, front-fork disassembly and seal replacement, steering-head repair, rear-shock inspection, swingarm work, and drive-chain service.
• Electrical diagnosis covers switch continuity, bulbs and LEDs, ignition, electric starting, charging, lighting, signaling, cooling-fan, fuel-pump, and EXUP circuits. The 2000 supplement adds tachometer-displayed self-diagnosis for the throttle position sensor, EXUP, speed sensor, and fuel-level warning circuit.
• Factory reference material provides component-specific torque tables, lubrication and fluid data, wear and clearance limits, electrical test specifications, oil- and coolant-flow diagrams, cable-routing views, exploded assemblies, circuit diagrams, and full wiring schematics, including separate 2000 EUR and OCE layouts.

Coverage and Document Structure

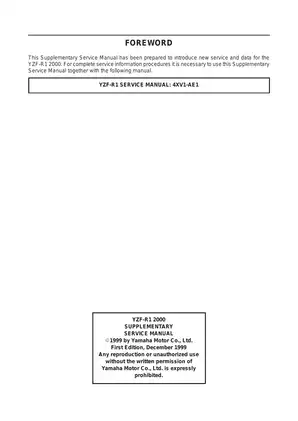

The workshop material is split between a full base manual and a model-year supplement. Yamaha states that the 2000 supplement must be used together with 4XV1-AE1; it contains new or revised data rather than repeating every base-manual procedure. That distinction matters when tracing a 2000 repair, since the correct procedure may begin in the 1998 book and finish with a changed specification, routing layout, or assembly note in 4XV1-AE2.

The separate parts catalog is a 1999 US reference. Its index identifies LIT-11616-11-25 as the associated service-manual literature number and divides coverage between the 49-state 4XVA model and California 4XVB model. It also warns that its color information and plastic part references are for the 1999 paint scheme, not 1998 bodywork. Region should be checked before electrical work: the parts book is US-specific, while the supplement closes with separate European and Oceania wiring diagrams. No separately identified 2001-specific publication is included in this set.

Workshop Repair and Diagnostic Depth

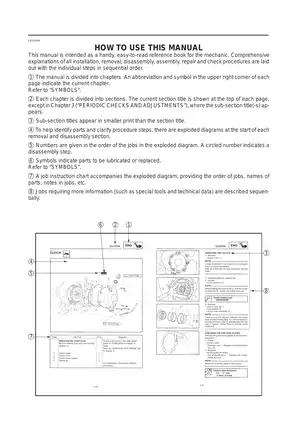

The base manual is organized around Yamaha factory job charts and exploded views, followed by removal, disassembly, inspection, assembly, installation, adjustment, and final-check information. Routine shop work goes well beyond oil changes. The periodic section covers valve-clearance inspection with a valve-pad selection table, carburetor synchronization, compression testing, ignition timing, EXUP cable adjustment, coolant service, hydraulic brake bleeding, steering-head adjustment, suspension setup, battery charging, fuse checks, and headlight aiming.

Internal engine coverage is detailed enough for a bench rebuild. The manual addresses camshaft and timing-chain inspection, cylinder-head checks, valve guides and seats, clutch components, oil-pump and relief-valve inspection, crankcase and bearing work, piston-ring and big-end checks, crankshaft journal-bearing inspection, shift forks and drum, and transmission gears. Chassis chapters carry the same depth into brake master cylinders and calipers, fork legs, steering bearings, rear suspension linkage, swingarm, wheels, and brake discs.

Factory tool callouts include the 90890-03094 vacuum gauge with 90890-03060 attachment for carburetor synchronization, 90890-01441 fork-spring compressor, 90890-01442 fork-seal driver, 90890-01325 radiator-cap tester with 90890-01352 adapter, and 90890-04086 clutch holding tool. These references help determine whether a repair can be completed with the equipment already in the shop.

Diagrams, Parts Reference, and Repair Cautions

Key visual references include the engine oil-flow diagram, coolant-flow diagram, throttle/brake/clutch cable-routing views, 2000 air-induction system diagram, ignition and electric-starting circuit diagrams, and the full YZF-R1 wiring sheets. The parts catalog adds exploded assemblies and numbered parts tables for areas such as the cylinder and valve train, crankshaft and pistons, carburetors, oil and water pumps, transmission, front fork, brakes, suspension, bodywork, and electrical equipment.

Several cautions are specific to these engines. During camshaft installation, the crankshaft must not be turned; incorrect indexing can leave valve timing wrong and damage engine components. Crankcase sealant must be kept out of oil galleries and journal bearings, and transmission operation must be checked before the case bolts are tightened. Brake-caliper internals are to be cleaned and lubricated only with clean brake fluid because solvents can swell and distort the piston seals.

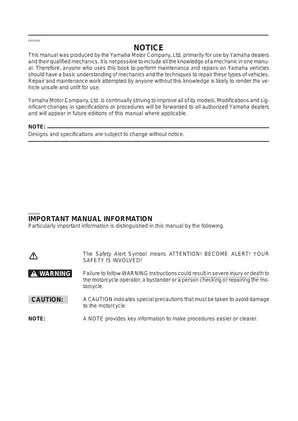

Brake, steering, suspension, fuel-system, and valve-timing work can make the motorcycle unsafe when performed incorrectly. This factory material was written for Yamaha dealers and qualified mechanics; critical repair work should be checked by a trained technician before the motorcycle returns to service.
