1996 Yamaha YZF1000RJ / YZF1000RJC Service & Repair Manual (P/N LIT-11616-10-60)

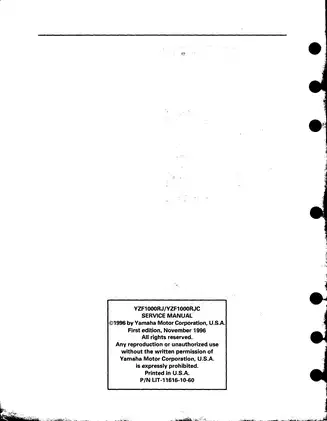

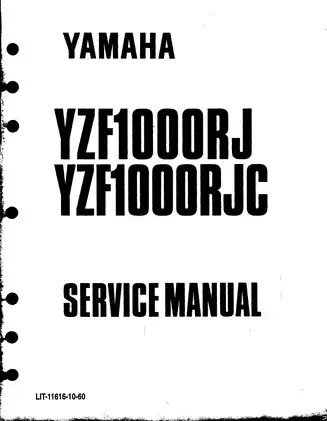

Yamaha's service manual for the 1996 YZF1000RJ (4YW1) and YZF1000RJC (4YW2) is P/N LIT-11616-10-60, first edition November 1996. It covers the liquid-cooled DOHC four-cylinder engine, chassis, and electrical systems.

The 407-page PDF is a scan with chapter bookmarks and no searchable text layer. A missing steering-head page interrupts one removal procedure; a duplicated chassis page is included in the total.

• Engine repair: Engine removal, crankcase disassembly, cylinder head repair, camshaft installation, bearing selection, and transmission and clutch inspection.

• Carburetor service: Carburetor disassembly, fuel level adjustment, synchronization, and throttle position sensor adjustment and inspection.

• Cooling and lubrication: Radiator pressure testing, thermostatic valve inspection, water pump seal replacement, oil cooler service, and engine oil pressure checks.

• Brakes and chassis: Caliper and master cylinder repair, hydraulic clutch bleeding, front fork overhaul, suspension adjustment, and swingarm bearing inspection.

• Electrical troubleshooting: Ignition, starting, charging, lighting, and fuel pump diagnosis, plus EXUP servo motor tests and tachometer-based self-diagnosis.

• Factory reference data: Periodic maintenance and emissions schedules, engine and chassis torque tables, wear limits, fluid capacities, and electrical test specifications.

Written primarily for Yamaha dealers and their qualified mechanics, this manual assumes an understanding of motorcycle mechanics and repair procedures.

Engine and Transmission Repair

The engine chapter identifies components removable with the engine installed, including the cylinder head, cylinders, pistons, and clutch. That distinction helps plan repair access before committing to engine removal.

Piston, cam journal, and valve guide clearance limits accompany valve seat inspection and color-coded crankshaft and connecting rod bearing selection. Exploded-view diagrams support work on the HY-VO chain, starter clutch, transmission, and shift forks.

Valve adjustment includes intake and exhaust pad-selection charts. Special-tool references include the universal clutch holder YM-91042.

Camshaft installation notes explain how incorrect shaft rotation during assembly can damage pistons and valves.

Mikuni Carburetors and California Emissions

The Mikuni BDSR38/4 tables identify 4YW 00 for the RJ and 4YW 10 for the RJC, with separate jet specifications for the inner and outer carburetors. Repair coverage extends to diaphragms, needle valves, and coolant-fed carburetor heater connections.

TPS adjustment uses the tachometer display. California-only emission hose routing identifies the canister and rollover valve connections.

Cooling System and Oil Circulation

Cooling System Diagrams show the radiator, thermostatic valve, and water pump layout. The lubrication chart traces oil flow through the oil cooler, main gallery, and crankshaft bearings.

Water pump repair covers the impeller shaft, bearing, oil seal, and water pump seal. Radiator cap testing and cooling system leak checks have their own procedures and test specifications.

Brakes, Suspension, and Steering

The diamond frame chassis sections cover wheel bearing replacement, static wheel balancing, brake disc inspection, and hydraulic clutch master and release cylinder repair. Front fork instructions address damper rod service, bushings, seals, and oil level setting.

Steering-head limitation: Printed page 7-56 is missing; page 7-64 appears twice. Steering-head inspection and installation are included, but the removal sequence is incomplete.

The manual emphasizes secure motorcycle support during engine and suspension work.

Electrical Diagnosis and EXUP

Starting Circuit Operation explains the relationship between the gear position sensor, clutch switch, sidestand switch, and starting circuit cut-off relay. The troubleshooting charts help separate interlock or wiring faults from starter-component faults when investigating a no-start complaint.

Ignition procedures cover spark plug inspection and timing checks; charging diagnosis adds generator, brush, and regulator checks.

EXUP System and TPS circuit diagrams accompany resistance checks and tachometer fault indications for the TPS, EXUP, and fuel level warning circuit. The EXUP test cautions that prolonged test power can damage the servo motor.

Wiring coverage: Chapter 8 contains system circuit diagrams. The separate YZF1000R wiring sheet listed in the contents is not included in this PDF.

File Format and Readability

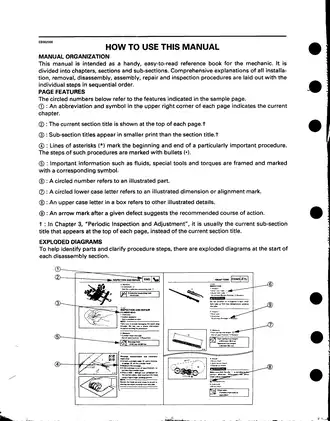

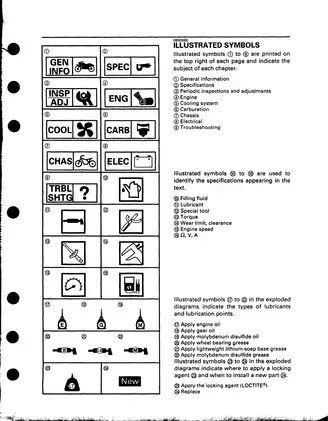

Page breakdown: The total includes 15 front-matter pages: cover and copyright (2), introductory instructions and symbols (3), chapter overview (1), and contents (9). The remaining 392 pages contain workshop material, including the duplicated page.

Navigation: Eleven PDF bookmarks link to the cover, chapter overview, and all nine chapters.

Diagram readability: Small wire codes and connector labels need enlargement. Scan grain is particularly noticeable on the ignition-system sheet; the TPS diagram is cleaner.
