1986–1991 Honda CR250R Service Manual

The 1986–1991 Honda CR250R service manual covers maintenance, troubleshooting and repair of the liquid-cooled two-stroke engine, H.P.P. (Honda Power Port) system and Pro-Link chassis, with model-specific procedures throughout.

PDF Search, Bookmarks and Page Count

Search and diagram detail: OCR text supports searches across the main chapters, although recognition errors can affect results and some pages lack searchable text. Embedded bookmarks provide access to the chapters, index and three wiring diagrams. Small wiring labels are readable when enlarged.

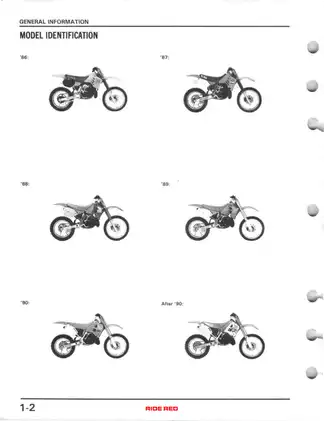

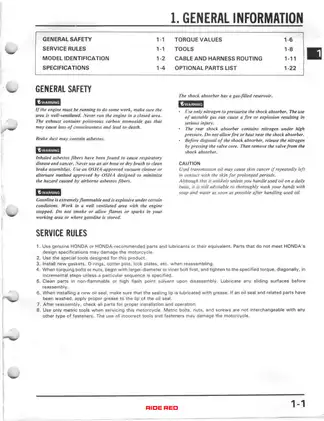

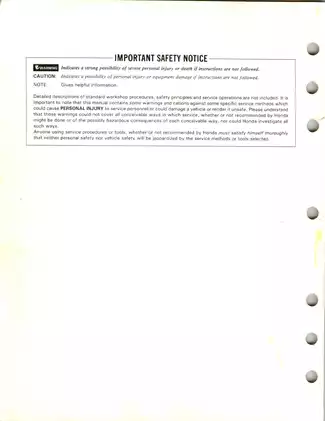

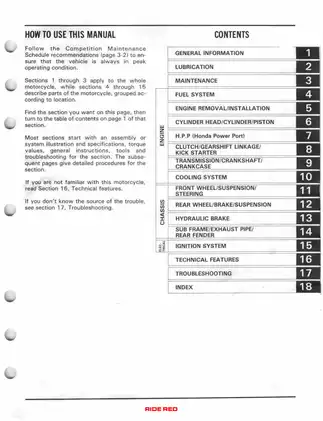

One printable, English-language PDF contains 309 pages, including one cover page, one safety-notice page, one contents page and 11 memo pages.

Engine, H.P.P. and Chassis Service

This is a selection of covered work, not a complete contents list. Further topics include drive-chain maintenance and silencer packing replacement.

• Engine and H.P.P.: Engine removal, cylinder-head and piston service, exhaust-valve decarbonizing, linkage inspection, governor/cam service and exhaust-valve adjustment.

• Clutch and transmission: Clutch inspection, gearshift-linkage and kickstarter repair, crankcase separation, transmission disassembly, crankshaft inspection and bearing replacement.

• Fuel system: Carburetor disassembly, float-level adjustment, reed-valve inspection and jetting guidance for temperature, altitude and track conditions.

• Cooling system: Coolant replacement, radiator-cap pressure testing, leak checks and water-pump shaft, bearing, water-seal and oil-seal replacement.

• Suspension and steering: Step-by-step procedures for fork overhaul, shock-absorber service, bladder replacement, swingarm and linkage bearings, and steering-stem bearings.

• Brake service: Hydraulic bleeding, pad and disc inspection, master-cylinder and caliper overhaul, plus the rear drum-brake procedures for the applicable version.

• Ignition diagnosis: Alternator, pulse-generator and ignition-coil tests, ignition-timing checks, engine-stop-switch continuity testing and model-specific wiring diagrams.

This manual suits readers already familiar with motorcycle workshop practice and equipped for precision measurement and specialist disassembly.

Engine Repair and Power-Port Operation

Dedicated chapters cover cylinder-head removal, combustion-chamber cleaning, piston and ring inspection, and H.P.P. linkage assembly. Exploded linkage views and governor/cam illustrations show how the exhaust valves connect to the actuating mechanism.

The manual distinguishes work that can be completed with the engine installed from transmission and crankshaft service requiring engine removal and crankcase separation. That distinction helps plan workshop access and equipment before disassembly; the tool references include crankcase puller 07937-4300000.

The Nikasil-plated cylinder cannot be bored or honed; a damaged cylinder requires replacement. Cylinder-installation cautions explain how rotating the cylinder can catch and break piston rings, while the H.P.P. instructions address spindle-cam/rack engagement and checks for proper exhaust-valve operation.

Carburetor Tuning and Cooling-System Diagnosis

Carburetor coverage goes beyond cleaning: it explains the starting, slow and main circuits, then relates mixture changes to throttle opening. The temperature/altitude correction chart and Jet Needle/Air Screw Chart accompany adjustment procedures and optional tuning-part references.

The cooling chapter distinguishes radiator-cap testing from system leak testing. Water-pump inspection connects leakage at the inspection hole with seal diagnosis, followed by bearing and seal replacement procedures.

Forks, Pro-Link Suspension and Brakes

Separate fork procedures address the different assemblies, with exploded views, bushing inspections and oil-level specifications. Rear-suspension coverage includes damper disassembly, rod-guide seals, reservoir service and linkage-bearing replacement.

Setup scope: The service manual supplies baseline suspension settings and handling troubleshooting. Detailed preload adjustment for rider weight and damping setup for riding conditions are referred to the separate Owner’s Manual, which is not included.

Brake coverage distinguishes the rear drum assembly from the later hydraulic rear brake. Step-by-step bleeding procedures accompany master-cylinder and caliper inspection, with component-specific wear limits.

Always observe standard shop safety protocols and follow the manual’s pressure-release precautions when servicing the forks and nitrogen-charged rear shock.

Ignition Tests and Fault-Finding Charts

The wiring diagrams distinguish the covered ignition layouts and identify CDI connections, wire colors, coils and the engine-stop circuit. Cable and harness routing drawings provide the corresponding installation references.

Hard-starting, power-loss and poor-running flowcharts connect symptoms with fuel, compression, ignition and H.P.P. checks. The CDI section describes checking the surrounding components before replacing the sealed unit.

Examples from the Engine Torque Specifications

The engine-installation section lists 60–70 N·m for engine mounting bolts on models after 1989, with separate specifications for the engine hanger bolts.

Cylinder-head nuts are specified at 24–29 N·m. The top-end chapter pairs its assembly information with cylinder, piston and ring inspection limits.
