2004 EURO-PRO 7133 Sewing Machine Instruction Manual

This instruction manual covers the 2004 EURO-PRO 7133 household sewing machine, Rev. 12/04, with guidance on setup, stitch selection, and routine user maintenance.

• Threading and bobbin setup: Bobbin winding, bobbin insertion views, upper threading diagrams, automatic needle-threader operation, and upper and lower thread-tension checks.

• Needles and fabric feeding: System 130/705H needle replacement, needle/fabric/thread selection charts, presser-foot pressure adjustment, the two-step presser-foot lever, and drop-feed operation.

• Stitch selection: Straight, zigzag, stretch, blind-hem, and overlock stitches, supported by stitch-display illustrations and explanations of the length and width controls.

• Buttonholes and attachments: One-step buttonholes, left/right stitch-balance adjustment, button sewing, zipper installation, piping, and setup for cording, quilting, and gathering.

• Darning and decorative sewing: Free-motion darning, twin-needle sewing, applique, smocking, scallop stitching, and monogramming with an embroidery hoop.

• Troubleshooting and maintenance: Symptom, cause, and correction tables, stitch-plate removal, feed-dog cleaning, and illustrated hook-race cleaning and lubrication.

The illustrated setup instructions and explanations of basic controls make this manual suitable for home sewers learning to use the machine or carry out its routine care.

Threading, Tension, and Fabric Feeding

The component drawings identify the thread take-up lever, reverse sewing lever, and bobbin winder spindle alongside the tension, pressure, and stitch controls. The bobbin-winding section explains why the machine will not sew while the spindle remains in the winding position.

Thread-tension guidance distinguishes upper-thread adjustment from adjustment at the bobbin-case screw. It notes that the lower tension is factory-set and usually needs no readjustment; stitch illustrations show the difference between balanced, loose, and tight tension.

Presser-foot holder and seam-guide drawings show attachment locations. Power-connection instructions identify regional foot-controller versions and explain the polarized plug.

Buttonholes, Stitch Patterns, and Sewing Attachments

Buttonhole coverage includes the sizing foot and lever, corded buttonholes for stretch fabrics, and adjustment of uneven stitch density between the two sides. The stitch-selection section explains the two pattern rows and how the width control changes needle position during straight stitching.

Zipper and piping instructions cover mounting the zipper foot on either side. The cording and rolled-hem sections explain their attachment setups, while the quilting and gathering chapters also describe alternatives using the all-purpose foot.

The walking-foot section explains how the attachment equalizes upper and lower fabric feeding when matching plaids, stripes, or layers. Free-motion darning and hoop embroidery cover drop-feed setup and attachment changes. The twin needle and embroidery hoop are separate accessories.

Troubleshooting and Routine Maintenance

The troubleshooting table links skipped stitches, thread breakage, puckered seams, uneven feed, noise, and jams to likely causes and corrections. This helps an owner distinguish threading and needle-selection problems from hook-area contamination before arranging repair.

Maintenance instructions cover stitch-plate removal, feed-dog cleaning, and access to the hook and hook-race cover through the retaining arms. Lubrication drawings identify the oiling points, and the text calls for regular cleaning and periodic professional service. Bulb replacement is also described.

Maintenance coverage is limited to user care and adjustments; internal mechanical and electrical repair procedures are outside this instruction manual’s scope.

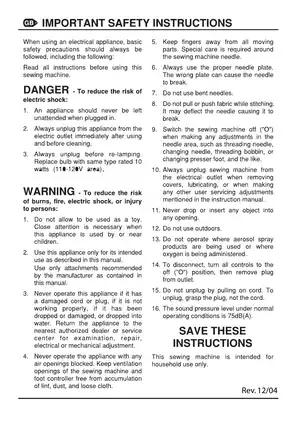

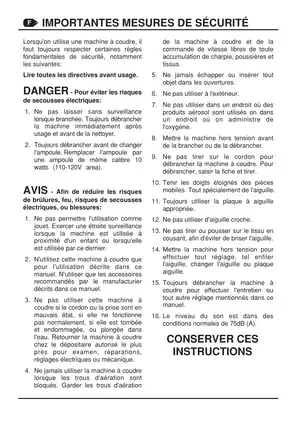

The safety notes warn that an incorrect needle plate or forcing the fabric can cause needle breakage. Review the electrical-connection safety instructions and power-source requirements before setup or maintenance.

A Preview of Needle Sizes and Satin-Stitch Settings

These examples show a small part of the manual’s needle and stitch-setting guidance. The fabric/thread chart covers needle sizes 9 (65) through 18 (110), with fabric-weight and thread recommendations for each group.

For satin stitching, the zigzag section gives stitch-length dial settings between 0 and 1. These are positions on the machine’s control dial, not a stated stitch length in millimeters.

PDF Search, Navigation, and Page Contents

Text search and navigation: Text search works in portions of the PDF, but many instructional pages cannot be searched reliably. There are no embedded PDF bookmarks; the printed contents lists provide section references.

The download is one printable, 107-page PDF with English, Spanish, and French text. The total includes the front and back covers, one blank page, one repeated overlock-stitch page, and three original machine-warranty and ownership-registration pages.
