1980 Toyota Land Cruiser FJ40, FJ43, FJ45, FJ60, BJ40, BJ42, BJ43, BJ45, BJ46, BJ60, HJ47, and HJ60OEM Chassis & Body Manual Set (P/N 36044E)
851 Pages • ZIP Download: Printable PDF • 79.10 MB
Toyota Models Covered & Key Technical Specifications
Models: Land Cruiser FJ40, FJ43, FJ45, FJ60, BJ40, BJ42, BJ43, BJ45, BJ46, BJ60, HJ47, HJ60
Transmission variants: H41, H42 (4-speed manual transmissions), J30 (3-speed manual transmission)
Model Year: 1980
-
Caster angle: 1° ± 45′ (FJ, BJ, HJ4 series) / 1°05′ ± 45′ (FJ, BJ, HJ6 series)
-
Headlight bulb power: 60/55W (12V halogen) / 75/70W (24V halogen)
-
Transfer oil capacity (H41/H42, w/o PTO): 2.5 liters (2.6 US qt)
-
Transfer oil capacity (H41/H42, w/ PTO): 3.1 liters (3.3 US qt)
-
Clutch pedal height (w/ booster): 215 mm (FJ, BJ, HJ4 series) / 195 mm (FJ, BJ, HJ6 series)
-
Clutch pedal height (w/o booster): 215 mm (FJ4 series)
-
Clutch release fork end play: 4.0–5.0 mm (FJ/HJ), 3.0–4.0 mm (BJ)
-
Clutch pedal freeplay: 30–50 mm
Toyota Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| Toyota Land Cruiser Chassis & Body Repair Manual, August 1980, P/N 36044E — FJ40, FJ43, FJ45, FJ60; BJ40, BJ42, BJ43, BJ45, BJ46, BJ60; HJ47, HJ60. | 826 |
| Land Cruiser Electrical Wiring Diagrams — 1981 production and model sheets, including separate USA/Canada diagrams. | 25 |
The repair volume supplies mechanical procedures and adjustment data; the wiring documents add vehicle circuits and component indexes for matching the electrical layout to the model and market.
Engine repair requires separate publications. Toyota refers internal engine work on the 2F, B-series, and 2H engines to their respective engine manuals.
PDF Search, Bookmarks, and Diagram Detail
Navigation and small labels: PDF text search is not available. Embedded bookmarks provide chapter and page navigation, including the wiring-diagram groups. Small wiring labels require zooming.

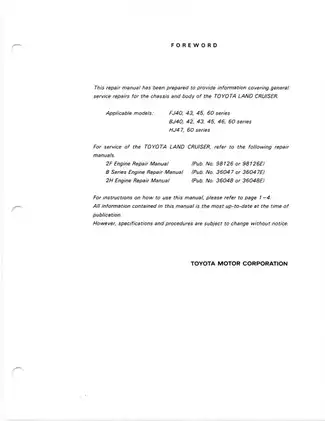

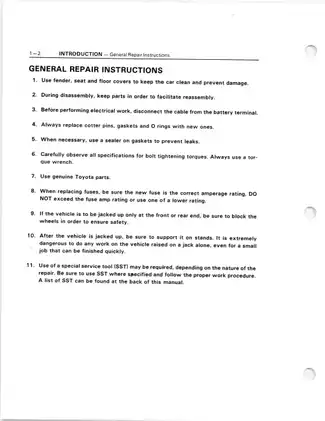

ZIP download containing one printable, 851-page PDF. The publication counts above include three original front-matter pages in the repair volume and nine cover/divider pages in the wiring section.
Drivetrain, Chassis, Body, and Electrical Repairs
This selected content overview highlights major repair areas. Further examples include fuel-sender resistance checks and heater-control cable adjustment.
-
Clutch and drivetrain: Clutch adjustment, hydraulic bleeding, master/release cylinder repair, clutch-unit service, transmission overhaul, and transfer-case disassembly and assembly.
-
Axles and suspension: Steering-knuckle and axle-shaft repair, free-wheel hubs, wheel bearings, differentials, leaf springs, shock absorbers, stabilizer bar, and alignment checks.
-
Steering systems: Intermediate shafts, tilt and standard columns, manual steering gears, linkage, and power-steering inspection, bleeding, pressure testing, and overhaul.
-
Brake systems: Tandem master cylinders, boosters, vacuum pumps, drum and disc brakes, parking/center brakes, and proportioning-valve testing and adjustment.
-
Front winches: Power-takeoff repair, mechanical and electric winch service, motor inspection, and a mechanical-winch power-train cutaway.
-
Frame and body: Model-specific frame dimensions, hood and door alignment, lift gates, swing-out doors, window regulators, glass, instrument panels, roof, and headlining.
-
Electrical diagnosis: Component circuits, connector and relay/fuse locations, switch and motor tests, warning systems, and model/market wiring diagrams with component indexes.
This manual is suited to experienced technicians using presses, bearing tools, precision measuring equipment, and Toyota SST; the illustrated procedures omit routine workshop steps.
Transmission, Transfer, and Axle Overhaul
The separate assembly sections help match overhaul procedures and adjustment data to the hardware fitted to the vehicle.
Transmission configurations: H41/H42 four-speed instructions are separate from J30 three-speed work. Step-by-step procedures cover removal, teardown, inspection, reassembly, installation, and final shifting checks. Cutaway views show the transmission and transfer arrangement; detailed work includes synchronizers, shift forks, bearings, seals, shaft clearances, and case-cover assemblies.
The transfer sections retain the same configuration distinction and include output-shaft bearing-preload adjustment and shim selection.
Axle configurations: Rear-axle procedures distinguish semi-floating shafts from full-floating shafts and hubs. Standard and limited-slip differential sections cover bearing preload, gear backlash, tooth-contact inspection, and shim selection.
Front-axle work includes steering-knuckle alignment, knuckle-bearing preload, axle-shaft joints, hub-bearing adjustment, and free-wheel hub assembly. Propeller-shaft coverage includes double-Cardan joints.
Steering and Brake Configurations
Steering procedures distinguish standard and tilt columns, 4-series and 6-series gear arrangements, and manual versus power steering. Power-steering coverage extends to vane-pump and gear-housing inspection, pressure checks, and internal assembly.
Toyota cautions against separating the worm-and-ball-nut assembly or striking the ball nut against the worm ends, which can damage the recirculating balls.
Brake hardware: Aisin and JKC booster arrangements receive separate treatment alongside tandem master cylinders and vacuum pumps. Cutaway drawings show master-cylinder and booster construction.
The brake sections include component removal and overhaul, installation, adjustment, bleeding, and on-vehicle checks. The proportioning-and-bypass valve and load-sensing proportioning valve have their own inspection and pressure-testing material.
Frame Dimensions and Body Repairs
Frame drawings identify the 60-series chassis and the FJ40/BJ40–42, FJ43/BJ43–46, and FJ45/BJ45/HJ47 groups.
Separate 4-series and 6-series body material addresses hinges, locks, strikers, doors, lift gates, swing-out doors, glass, and regulators. Numbered assembly views support alignment and installation work, including instrument-panel removal and roof-headlining replacement.
Electrical Circuits and Market-Specific Wiring
The body-electrical chapter covers ignition and combination switches, lighting, turn signals and hazards, front/rear wipers and washers, headlight cleaners, gauges, warning systems, rear defoggers, heaters, and radio/stereo equipment.
Wiring selection: The appended 1981-production sheets cover BJ40/BJ43/HJ47, FJ40/FJ43, BJ60/HJ60, and FJ60 groups. Separate USA/Canada sheets cover FJ40, BJ40, FJ60, and BJ60. Left-/right-hand-drive arrangements, market equipment, and applicable 12- or 24-volt circuits are identified.
Bulkhead-connector inspection illustrations accompany the circuit material. Toyota warns that probing the receptacle side can spread terminals and cause poor contact.
Special Tools and Assembly References
Illustrated SST tables identify tools by name and number. Examples include diaphragm aligner set 09301-00012, clutch guide tools 09301-20020/09301-55022, and input-shaft front-bearing puller 09303-35011.
Further tool listings support transmission, transfer, propeller-shaft, axle, steering, brake, winch, and body work. Reference tables consolidate tightening torques, clearances, bearing preloads, differential backlash, shim sizes, wear limits, lubricants, and fluid capacities.
Use rated stands and lifting equipment for transmission/transfer, axle, and winch assemblies, and complete the specified brake and steering checks before returning the vehicle to service.
Examples of Gear Clearances and Brake Wear Limits
For H41/H42 four-speed transmissions, the second-gear thrust-clearance table specifies a standard range of 0.175–0.325 mm and a limit of 0.35 mm. These values accompany the internal transmission inspection material.
The front disc-brake specifications distinguish a standard disc thickness of 20 mm from the 19 mm wear limit. Separate brake tables provide drum dimensions, lining limits, and adjustment data.
