1987–1996 Honda CBR1000F Hurricane Service Manual (P/N C4077-90960)

• 421-page PDF bundle: 258 pages from Honda’s December 1992 CBR1000F model-specific service manual, a 17-page Honda CBR1000F(S) addendum, and 146 appended parts-reference pages. The addendum identifies the base Honda shop-manual reference as 62MZ200.

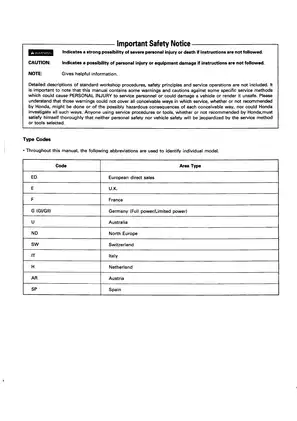

• Model and market coverage is separated by ED, E, F, G (GI/GII full-power and limited-power), U, ND, SW, IT, H, AR, and SP type codes, with market-specific carburetion, ignition, lighting, and emissions data.
• DOHC inline-four engine and drivetrain repair covers engine removal and installation, camshaft and cam-chain timing work, cylinder-head disassembly, valve and piston service, crankcase separation, crankshaft bearing selection, transmission overhaul, hydraulic clutch service, and gearshift-linkage repair.
• Fuel, lubrication, and cooling procedures address carburetor removal, separation, synchronization, and pilot-screw adjustment; oil-pump and oil-cooler service; and radiator, thermostat, reserve-tank, and water-pump repair.
• Chassis and Dual Combined Brake System work includes wheel and steering service, fork disassembly and assembly, swingarm and suspension-linkage repair, three-piston calipers, front/rear/secondary master cylinders, the proportional control valve, and the system-specific bleeding procedure.
• Electrical diagnosis and workshop reference cover the charging system, regulator/rectifier, alternator, ignition control system, pulse generator, starter motor, meters, switches, harness routing, the base-model Wiring Diagram, troubleshooting charts, torque tables, capacities, clearances, wear limits, and electrical test specifications.

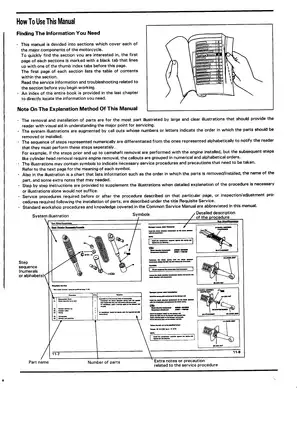

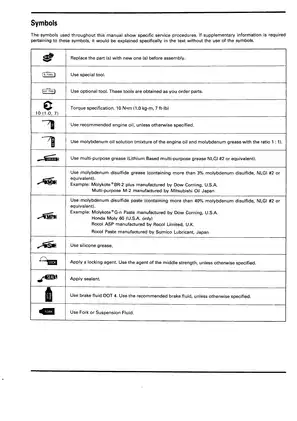

Manual Organization and Coverage

The Honda material is arranged in 20 model-specific sections followed by the CBR1000F(S) addendum. The sections typically open with service information and troubleshooting notes, then move into the relevant removal, inspection, disassembly, assembly, adjustment, or operational-check procedures. A separate troubleshooting section traces hard starting, loss of power, low- and high-speed performance faults, and poor handling.

Coverage is organized around the listed type codes and the included S-model addendum, not a single undifferentiated 1987–1996 model-year range. The German GI/GII versions, SW/AR secondary-air system, market-specific carburetor identification and adjustment data, and headlight or ignition differences are called out where they affect parts or tests.

Honda states that this model-specific manual is intended to be used with the Honda Common Service Manual. Standard workshop operations shared across Honda motorcycles are not repeated here. The S addendum’s contents page points to Wiring Diagrams at printed page 21-17, but this PDF’s addendum ends at 21-15. The base manual’s main Wiring Diagram remains present.

Engine, Fuel, and Drivetrain Repair Depth

The engine chapters run from compression-based top-end diagnosis through crankcase separation and bottom-end repair. They cover camshafts, rocker arms, cam-chain tensioner, cylinder head, valves, guides and seats, pistons, hydraulic clutch components, balancer, transmission shafts and gears, shift drum, crankshaft, and crankcase combination. Crankshaft and connecting-rod bearings are color-coded, select-fit parts, with bearing-selection tables and clearance verification after replacement. Mixing grades or assembling without checking the fitted clearance can damage the journals.

The carburetor section covers removal, bank separation, individual carburetor disassembly, reassembly, combination, synchronization, and pilot-screw adjustment. It warns that the diaphragms must be removed before passages are cleaned with compressed air, or the diaphragms can be damaged.

The tools pages identify model-specific and common Honda service equipment. Examples include link-plate holder 07PMH-MZ20110, piston-ring compressor 07PME-MZ20100, SW-type pilot-screw wrench 07KMA-MS60101, steering-stem socket 07916-3710101, and peak-voltage adapter 07HGJ-0020100.

Chassis, Brakes, Electrical, and Diagrams

The brake chapter is built around Honda’s Dual Combined Brake System rather than a generic hydraulic layout. It explains the hand- and foot-brake operating paths, secondary master cylinder, three-piston calipers, link mechanism, and PCV pressure control before covering pads, calipers, master cylinders, the proportional control valve, and system bleeding. The manual warns that its dedicated bleeding sequence must be followed whenever the hydraulic circuit is opened and that the secondary-master-cylinder push rod must not be disassembled; either error can prevent correct brake performance.

Front suspension coverage includes fork removal, internal disassembly and assembly, oil-seal and bushing work, wheel service, and steering-stem bearings. Rear coverage includes the wheel, swingarm, shock linkage, and shock-absorber removal, but the shock absorber itself is specifically marked not to be disassembled.

Named graphics include the Cable & Harness Routing views, Lubrication System Diagram, cooling-system Flow Pattern, the main Wiring Diagram and continuity information, D-CBS Operating Principles, and PCV Input and Output Characteristics. The final 146 pages add 82 pages of parts listings and 64 fiche/image sheets for component identification. Those appended pages carry dealer-price columns and are separate from Honda’s workshop procedure content.

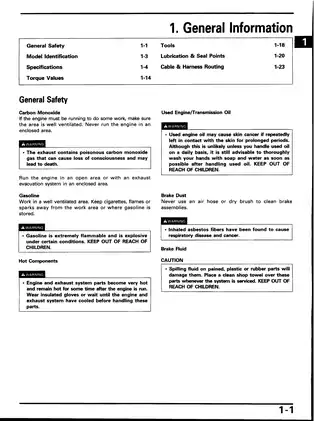

This is workshop-level repair information. Engine removal requires secure support, fork components are spring-loaded, and cooling and D-CBS hydraulic systems can retain pressure. The procedures assume basic motorcycle repair knowledge and suitable shop tools.
