Honda CBR1000F Hurricane 1993–1996 Service & Parts Manual Set

707 Pages • ZIP Download: 4 Printable PDFs • 87.19 MB

4.7starstarstarstarstar_half(3)
$18.75 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Honda Models Covered & Key Technical Specifications

Models: CBR1000F, CBR1000F Hurricane

Sub-models / Variants: U.S. outside California (A), California (AC), Canada. International CBR1000F and CBR1000F(S) type codes: European direct sales (ED), United Kingdom (E), France (F), Germany (G: GI full power, GII limited power), Australia (U), Northern Europe (ND), Switzerland (SW), Italy (IT), Netherlands (H), Austria (AR), Spain (SP).

Years: 1993–1996 (1993, 1994, 1995, 1996)

Serial Numbers: U.S. parts catalog starting numbers by model year and area code (engine / frame), each continuing to subsequent production:

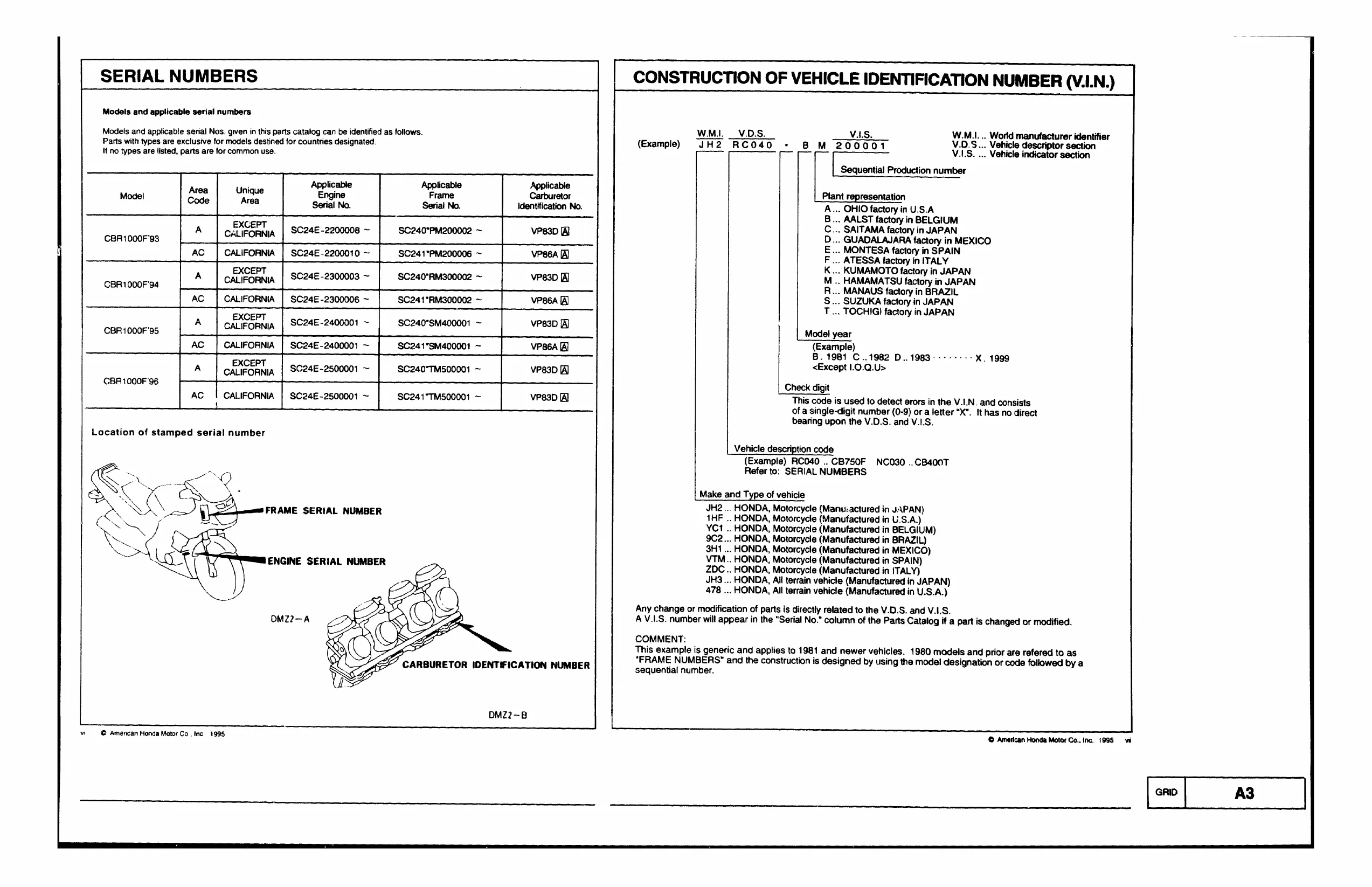

1993 — A: SC24E-2200008 / SC240-PM200002; AC: SC24E-2200010 / SC241-PM200006

1994 — A: SC24E-2300003 / SC240-RM300002; AC: SC24E-2300006 / SC241-RM300002

1995 — A: SC24E-2400001 / SC240-SM400001; AC: SC24E-2400001 / SC241-SM400001

1996 — A: SC24E-2500001 / SC240-TM500001; AC: SC24E-2500001 / SC241-TM500001


  • Engine: 4-cylinder, 4-stroke, liquid-cooled, DOHC (engine serial prefix SC24E for U.S. A and AC models)

  • Displacement: 998 cc

  • Transmission: 6-speed, constant mesh, wet multi-plate clutch

  • Fuel Capacity: 22 Liters (5.81 US gal) total, 3.5 Liters (0.91 US gal) reserve

  • Coolant Capacity: 2.6 Liters (2.75 US qt) for radiator and engine, 0.4 Liters (0.42 US qt) for the reserve tank

  • Valve Clearance (Cold): Intake 0.004 ± 0.001 in (0.10 ± 0.02 mm), Exhaust 0.007 ± 0.001 in (0.18 ± 0.02 mm)

  • Spark Plug Gap: 0.03–0.04 in (0.8–0.9 mm)

Honda Manual Features & Selected Content Preview

Publication Pages
Honda CBR1000F Service Manual, 1993–1996 U.S./Canada edition 265
Honda CBR1000F international service manual, issued December 1992, with CBR1000F(S) addendum 275
American Honda CBR1000F Parts Catalog, 1993–1996, October 1995 Second Edition (P/N 14MZ2PM) 93
Honda CBR1000F Parts Catalog, 1990–1991, March 1993 Fourth Edition (P/N 14MS2LE4) 74

Use the service manual for your market to find the applicable procedures and specifications. The parts catalogs pair exploded views with model, area, and serial-number references so you can identify the parts that fit the assembly you are servicing.

The model-specific service manuals refer to Honda’s separate Common Service Manual for standard workshop procedures. That manual is not included. Use the 1990–1991 catalog for earlier-model parts identification. The international PDF includes the CBR1000F(S) addendum through its torque tables. The addendum’s wiring diagrams are outside that file’s coverage.

PDF Files and Navigation

Chapter bookmarks and wiring diagrams: The U.S./Canada manual has chapter bookmarks. The international manual and both parts catalogs are navigable by page. Text search is unavailable in all four PDFs. Enlarge the service manuals’ wiring diagrams to read small wire-color and connector labels.

The ZIP download contains four printable PDFs totaling 707 pages. The total includes the publication covers present in the files and the 17-page CBR1000F(S) addendum within the international manual.


Engine, Linked Brakes, Electrical Tests, and Parts Identification

This selection of service topics includes major repair and diagnostic work. The manuals also cover fairing and exhaust removal and provide a maintenance schedule.

  • Engine and drivetrain: Engine removal and installation, cylinder-head and cam-chain service, rocker arms, cylinders and pistons, hydraulic clutch and gearshift work, and crankcase separation for transmission, balancer, and crankshaft service.
  • Fuel, lubrication, and cooling: Carburetor removal, separation, disassembly, synchronization, and pilot-screw adjustment, plus U.S. high-altitude adjustment. The manuals also cover the oil pump, oil cooler, radiator, water pump, and thermostat.
  • Linked brakes and chassis: Pad replacement, three-piston calipers, front, rear, and secondary master cylinders, proportional control valve (PCV) service, and system-specific bleeding. Chassis procedures cover forks, steering stem, wheels, swingarm, shock linkage, and bearings.
  • Electrical diagnosis: Charging and regulator/rectifier tests, alternator service, ignition and pulse-generator checks, starter repair, meter and switch tests, harness routing, and wiring diagrams.
  • Emissions and parts identification: California PAIR and evaporative-emissions hardware, with exploded engine and frame views that distinguish area-specific parts and assemblies.

Honda assumes basic motorcycle maintenance knowledge. The internal engine, hydraulic brake, and electrical sections are intended for experienced owners and technicians with the specified tools and test equipment.

Carburetor and Emissions Applications

The U.S. parts catalog lists VP83D carburetors for area A. California AC applications use VP86A through 1995 and VP83D for 1996. The U.S./Canada service manual separately identifies VP83B for Canada. California parts illustrations distinguish the PAIR valve, EVAP canister, purge and carburetor-air-vent controls, and related hoses, air-cleaner assemblies, and panels.

Parts Catalogs and Workshop References

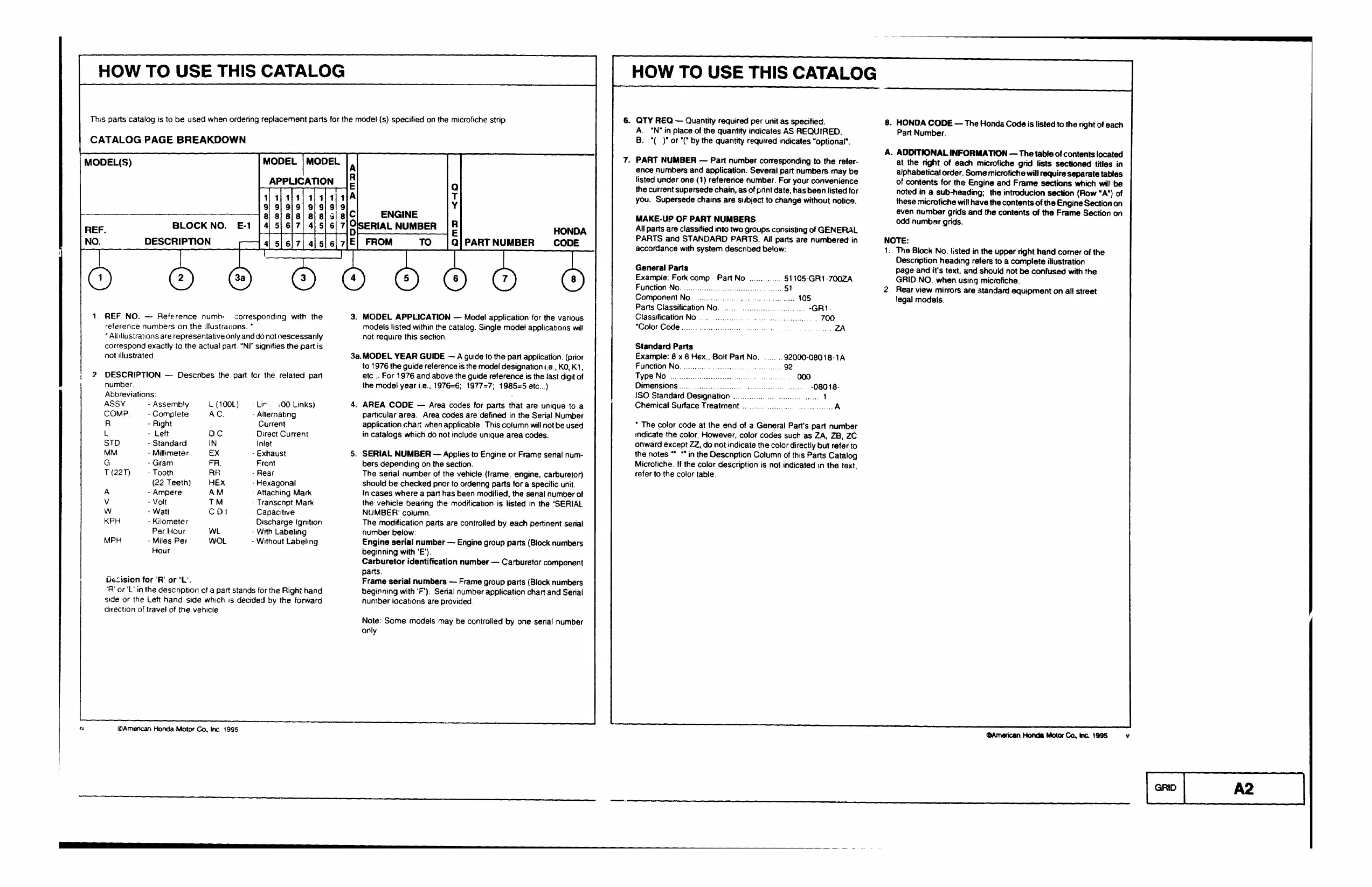

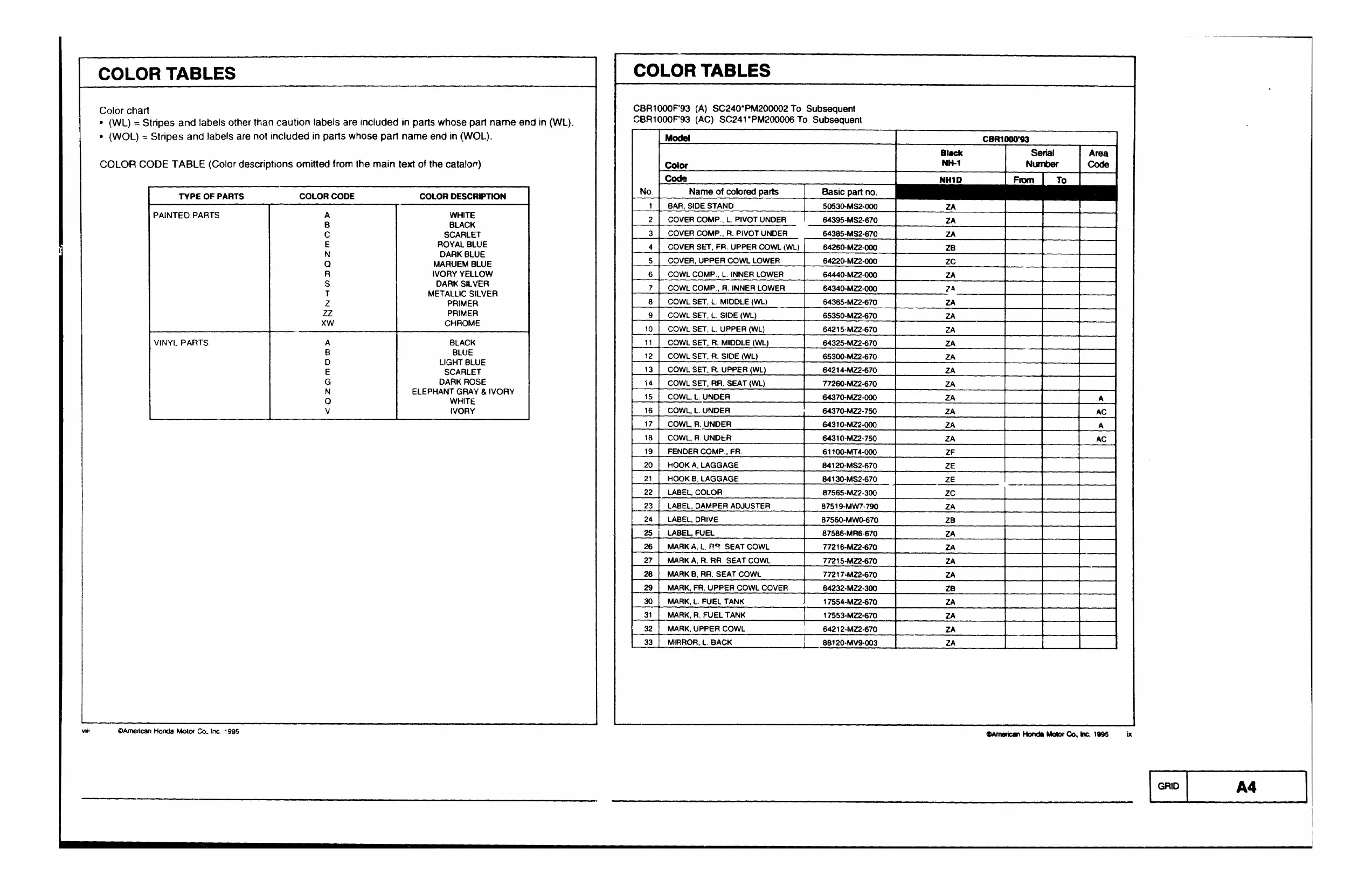

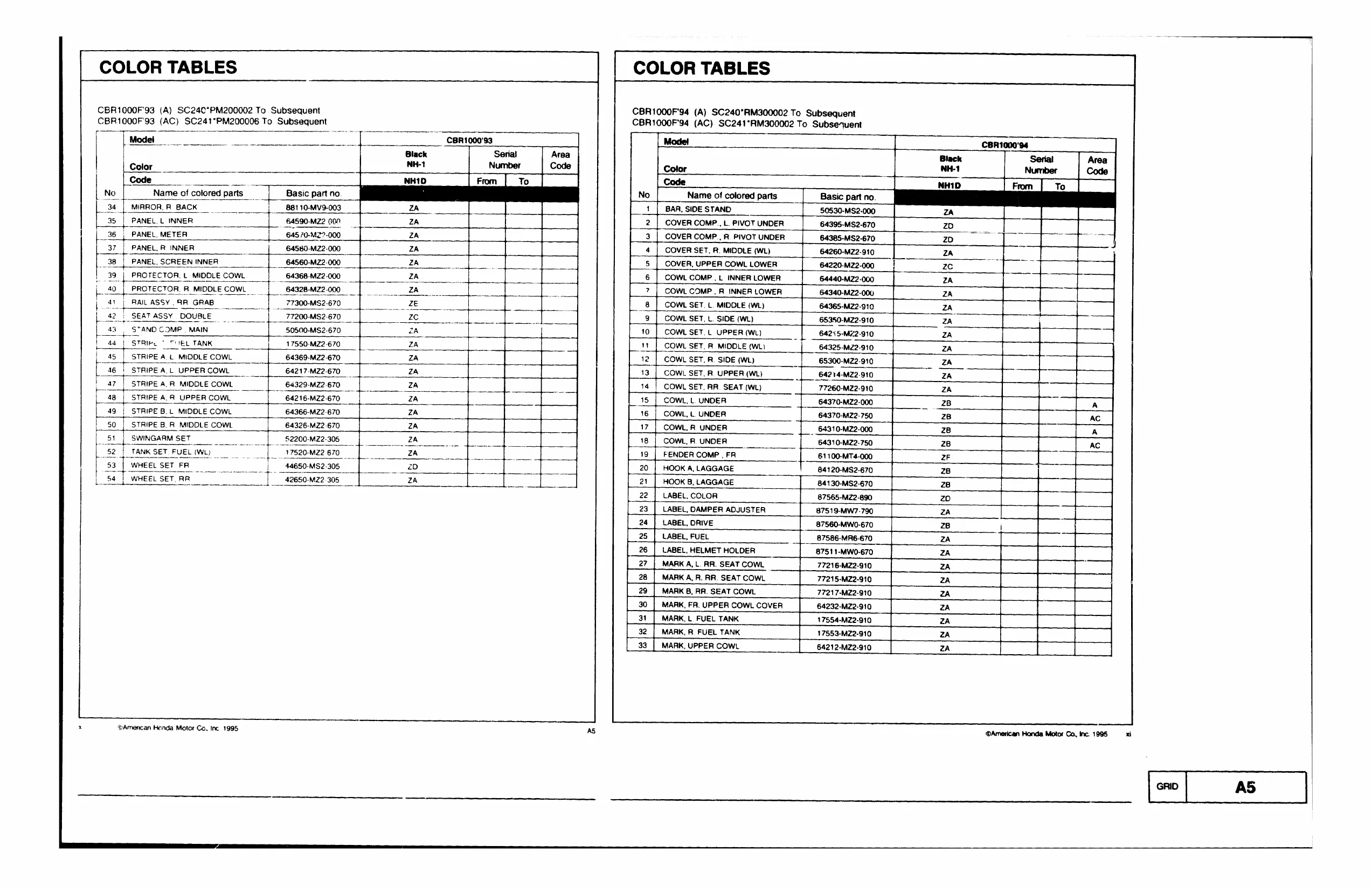

The 1993–1996 catalog pairs its exploded views with Honda codes, part numbers, quantities, supersessions, and application data. Part-number and description indexes help cross-check an illustration before ordering. Color tables identify the correct tanks, cowls, wheels, stripes, labels, and trim for the model and color code.

The service manuals provide torque tables, inspection limits, lubrication and seal points, and special-tool references. The lubrication system diagram, cooling-system flow pattern, linked-brake hydraulic layout, and PCV input/output chart show how components work together. The U.S./Canada tool list identifies oil-pressure gauge 07506-3000000, valve-spring compressor 07757-0010000, clutch-center holder 07724-0050002, steering-stem socket 07916-3710101, and extension bar 07716-0020500.

The crankshaft and connecting-rod bearing tables link the stamped codes to color-coded bearing shells and the oil-clearance check. That gives a technician the information needed to select replacement shells during an overhaul. The fuel-system section flags carburetor diaphragm damage from compressed air, and the brake section includes checks for linked-brake operation after service.

Cooling-System Test Specifications at a Glance

The U.S./Canada manual gives a radiator-cap relief pressure of 16–20 psi (108–137 kPa). For thermostat testing, it specifies an opening range of 176–183°F (80–84°C) and a fully open temperature of 203°F (95°C).
