Honda CBR125R 2004–2010 Owner’s & Common Service Manual Set (P/N 61CM000)

Use the Owner’s Manual for CBR125R operation and scheduled maintenance. The Common Service Manual explains how Honda systems work and how to test, inspect, and repair them.

CBR125R-specific overhaul procedures and service limits require a separate model-specific service manual. The CBR125R owner and workshop reference material in this set applies to the carbureted configuration.

PDF Search, Bookmarks, and Diagram Detail

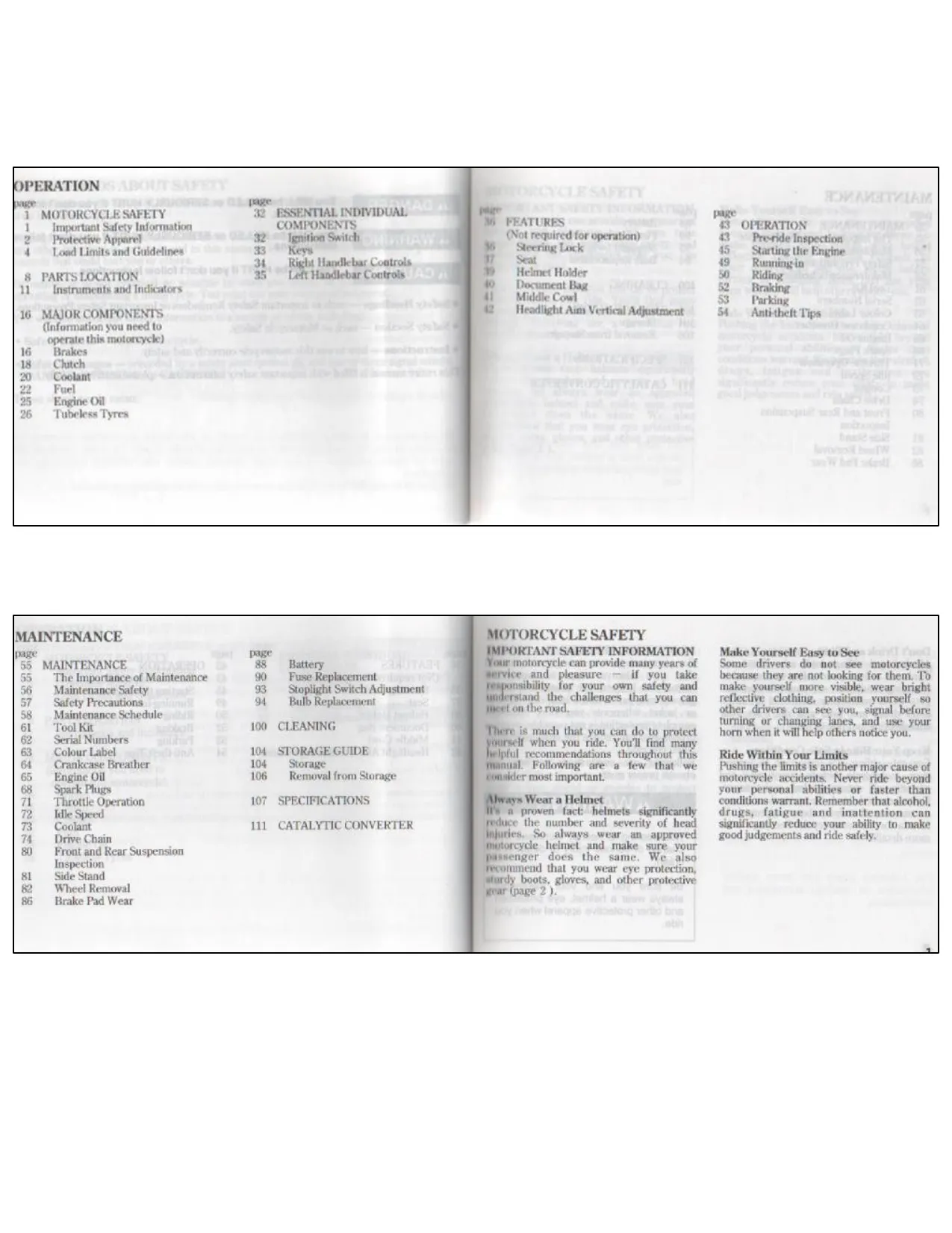

Text search and navigation: Search is limited to the first page of each PDF. The Common Service Manual has chapter and subsection bookmarks. The Owner’s Manual has a contents page and no embedded bookmarks. Small labels in the general circuit diagrams are easier to read when zoomed in. Some connector markings and wire codes in the separate CBR125R wiring photo remain hard to read at higher zoom.

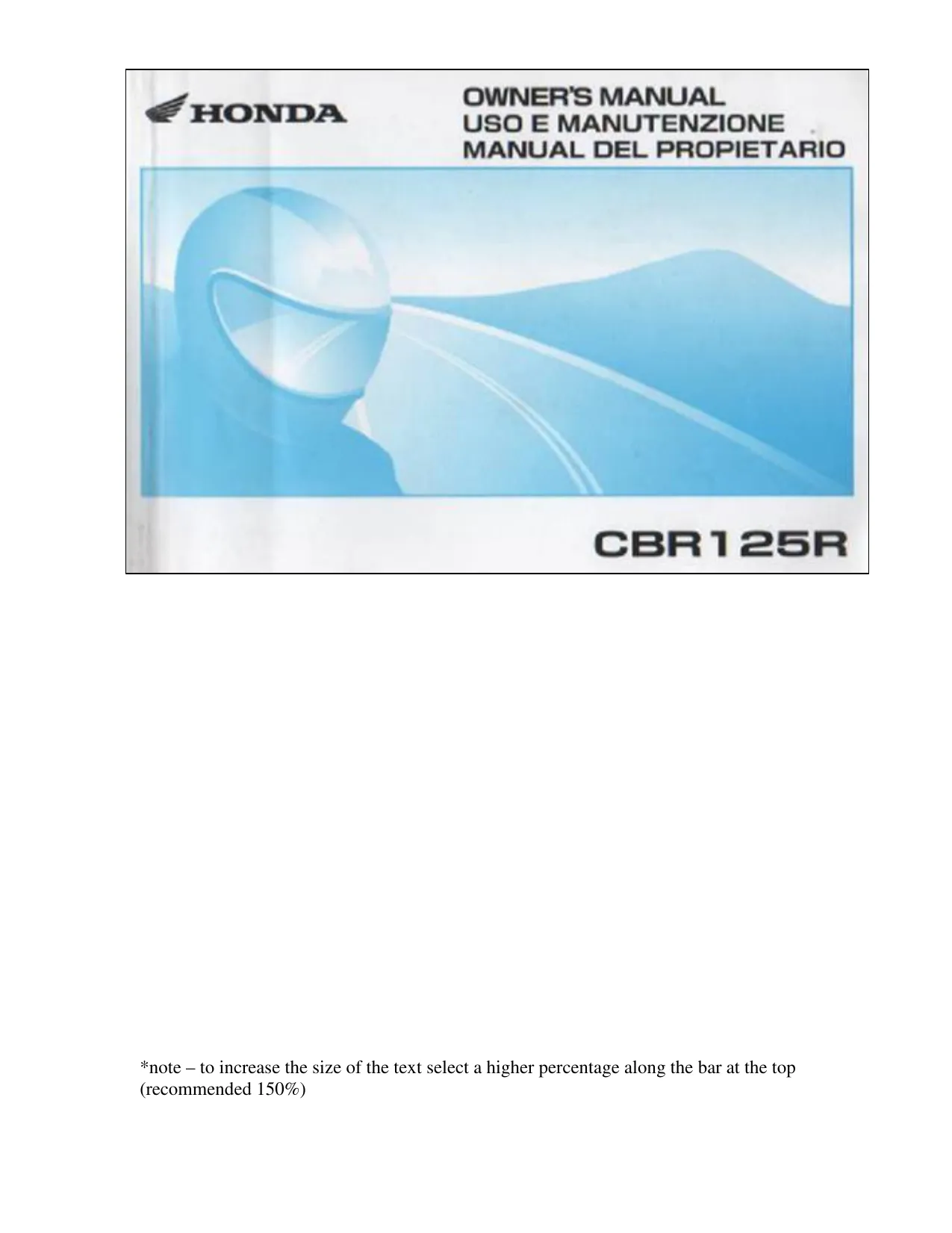

The ZIP contains two printable PDFs totaling 426 pages, including the Owner’s Manual cover page with its viewing note and two preliminary pages in the Common Service Manual. The archive also contains a separate workshop spec sheet, 52 JPEG parts illustrations, and one wiring-diagram photograph.

CBR125R Upkeep and General Honda Repair

The following selected topics cover routine service and several common workshop jobs. The Owner’s Manual also explains cold starting with the choke and how to prepare the motorcycle for storage.

• CBR125R maintenance: Oil changes, spark plug service, clutch cable adjustment, throttle and idle checks, and drive-chain inspection and adjustment.

• Engine testing and repair: General compression and leak-down testing, valve guide replacement and valve seat work, plus cylinder, piston, and ring inspection.

• Carburetor and drivetrain: General carburetor disassembly and float-level inspection, wet-clutch service, and transmission disassembly and reassembly.

• Liquid cooling: General radiator cap and cooling system pressure tests, thermostat checks, coolant replacement and air bleeding, and water pump mechanical seal inspection.

• Brakes and suspension: General hydraulic brake bleeding, caliper and master cylinder service, front fork disassembly, and steering bearing service.

• Charging, ignition, and starting: General charging and no-spark troubleshooting charts, ignition coil tests, and starter motor and starter clutch inspection.

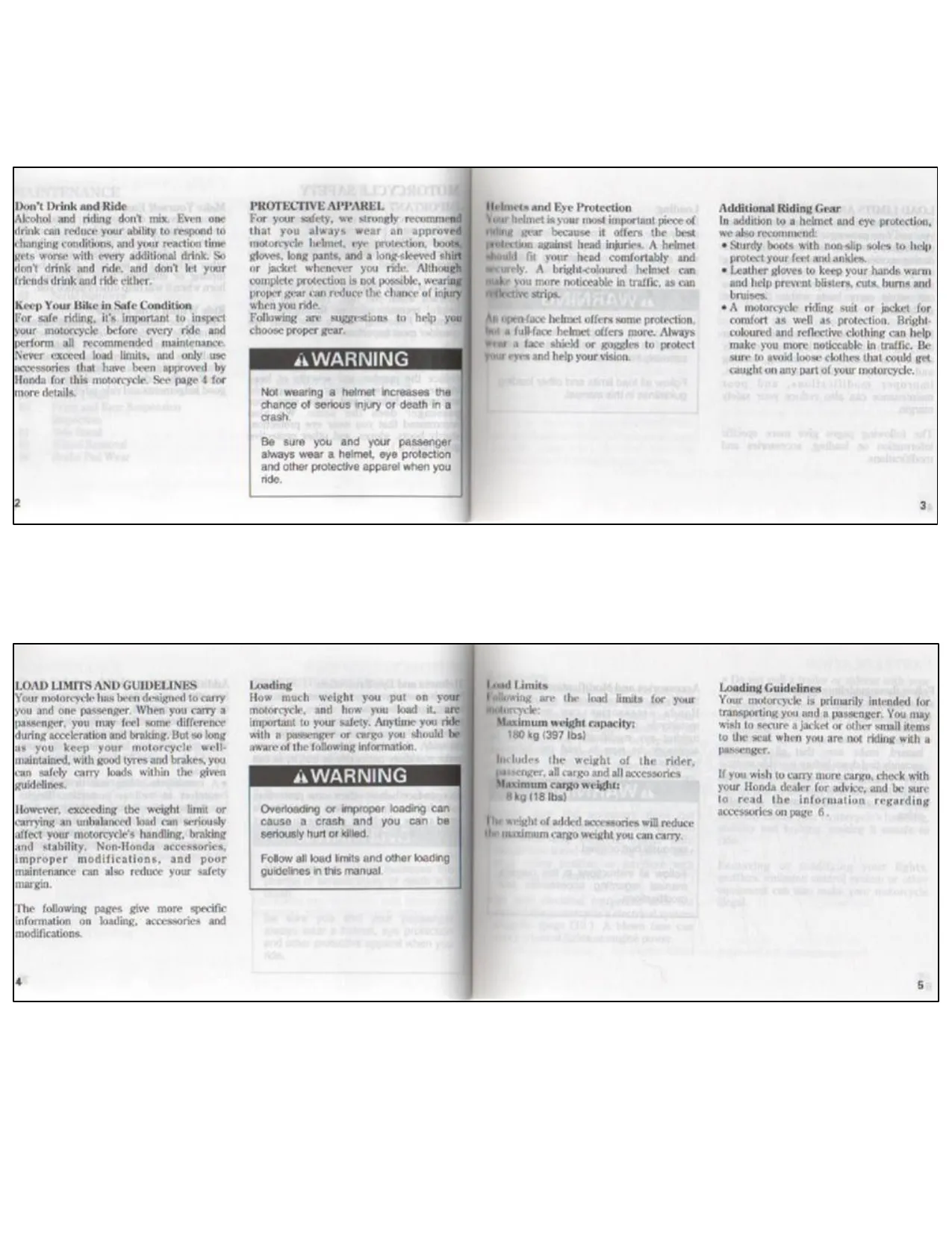

The Owner’s Manual is written for riders and flags jobs that require mechanical skill or dealer service, while the Common Service Manual suits mechanics with the appropriate test equipment and model-specific service data.

CBR125R Maintenance and Workshop Data

The maintenance schedule lets you plan service by mileage or time. The Owner’s Manual gives step-by-step instructions for front and rear wheel removal and installation, along with crankcase breather service and the side-stand ignition cutoff check.

Seat and middle cowl removal instructions show how to reach service points. The manual also covers brake pad wear checks, sealed battery removal, fuse and bulb replacement, coolant mixture, and reserve tank level checks.

Steam cleaning, high-pressure washing, and certain solvents can damage the drive chain’s O-rings. Coolant with silicate inhibitors can wear water pump seals prematurely or block radiator passages.

Model-specific data include lubricant requirements, fluid capacities, oil drain plug torque, individual gear ratios, tire pressures, spark plug choices, and electrical ratings. The separate 2004 workshop spec sheet identifies the CBR 125 R4, its VK6AB carburetor, and the frame reference MLHJC34A*45~. It lists jetting, float level, fork oil quantity and level, steering bearing preload, stator resistance, and peak voltage references for the pulse generator and ignition coil.

General Honda Fault Isolation and Inspection

Compression and leak-down testing help distinguish a valve sealing problem from cylinder or ring wear before teardown. Transmission inspection goes down to the gears, shift forks, and shift drum.

The Tool Compatibility Chart for Standard Bearings lists wheel bearing remover kit 07746-0050001 and matches remover heads to bearing size. The starter relay test illustration and cooling fan circuit diagram show where to check for continuity or voltage.

Parts Illustrations and Wiring Reference

Numbered callouts show how components fit together in assemblies such as Crankshaft and Piston (E-15), Clutch (E-9), Front Fork (F-8), and Radiator (F-31). Part-number lookup requires a separate parts catalog.

The CBR125R wiring photograph shows the right-hand portion of the drawing on printed page 20-3, including charging, ignition, cooling fan, and rear light connections.

Consult a certified motorcycle technician before engine teardown, brake repair, or complex structural work.

Sample Engine and Drive-Chain Settings

For the carbureted CBR125R, the Owner’s Manual lists cold valve clearances of 0.06 mm at the intake and 0.27 mm at the exhaust. The spark plug gap specification is 0.70–0.80 mm.

The drive-chain inspection specifies 25–35 mm of vertical slack midway along the lower run, with the motorcycle on its side stand, the engine off, and the transmission in neutral.
