Keeway Hurricane 50 2006 Service Manual (P/N 061502)

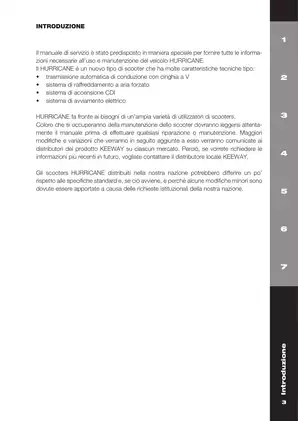

This Italian-language factory workshop manual covers the 2006 Keeway Hurricane 50. Keeway Italia issued it as P/N 061502, December 2006 edition. It covers the single-cylinder scooter with CDI ignition. Equipment and specifications can vary by market.

Searchable Text and Wiring Diagram Detail

Text search and diagram legibility: The main workshop text and many diagram captions are searchable. Some markings are embedded in the illustrations, and the PDF has no bookmarks. Fine wire codes and connector markings in the full wiring diagram can be difficult to read even when enlarged.

The download contains one printable Italian-language PDF with 116 pages, including the front and back covers and two pages containing only the page layout.

Engine, CVT, Brake, and Electrical Service

Selected workshop procedures and diagnostic references include the following.

• Engine repair: Step-by-step instructions cover crankcase separation, crankshaft installation, and bearing and oil seal replacement.

• CVT and centrifugal clutch: Drive belt and roller inspection, driven pulley disassembly, clutch engagement and lock-up tests, and final reduction gear assembly.

• Fuel and CCI lubrication: PZ19JB carburetor specifications, a mixture-setting chart by throttle range, vacuum-operated fuel tap operation, oil pump adjustment, and oil line bleeding.

• Front and rear brakes: Front pad replacement, caliper and master cylinder overhaul, hydraulic bleeding, rear drum and lining inspection, brake cam installation, and wear indicator alignment.

• Electrical fault tracing: Ignition, charging, starter, and instrument tests, supported by individual circuit schematics, a full wiring diagram, and symptom, cause, and remedy tables.

• Chassis and routing: Body panel and handlebar cover removal, front wheel bearing replacement, steering and front suspension service, and cable, brake hose, fuel, vacuum, and oil line routing.

This manual is suited to mechanics familiar with internal engine repair, precision measuring tools, and dedicated pullers.

In-Frame Service and Engine Inspection

The in-frame service list identifies parts that can be removed with the engine still installed, including the cylinder, piston, oil pump, and drive belt. Internal inspection covers crankshaft runout, connecting rod bearing condition, cylinder head flatness, and reed valve clearance.

Cylinder inspection covers bore measurement, rebore assessment, and oversize piston options. Separate checks cover piston pin fit, piston ring end gaps, and ring-to-groove clearance, with standard dimensions and wear limits.

The clutch section explains driven pulley disassembly and cautions that dismantling the clutch shoe assembly itself can damage it. Air filter service also explains how a torn or poorly seated filter can accelerate piston ring and cylinder bore wear.

Ignition, Charging, and Starting Diagnosis

The electrical chapter includes ignition and charging/lighting schematics and tests for the CDI and ignition coil unit, magneto pickup, stator windings, generator output, and regulator/rectifier.

Starter motor checks cover brush wear, commutator condition, and armature faults. For a no-crank condition, the starter circuit diagram and relay test help distinguish a brake switch or relay fault from a starter motor fault.

Separate fuel gauge and sender tests help isolate an inaccurate reading to the gauge or sender. The chapter also includes oil level switch checks and switch continuity tables.

Troubleshooting tables help mechanics compare fuel, ignition, and mechanical causes of hard starting, stalling, poor idle, power loss, overheating, and excessive exhaust smoke. Carburetor entries distinguish starting, low-speed, higher-throttle, and overflow faults.

Steering, Wheels, and Reconnection

Wheel inspection includes axle and rim runout checks. An exploded steering stem and front suspension view supports fork removal, bearing inspection, reassembly, and steering adjustment.

Routing drawings show the throttle cable splitter and its carburetor and oil pump connections. The fuel, vacuum, and oil line drawings show how those lines reconnect after component removal.

Maintenance Schedules and Special Tools

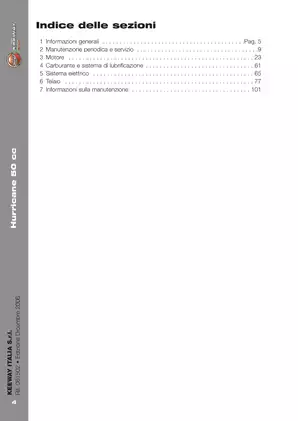

The seven-section manual includes break-in guidance, illustrations showing the frame VIN and engine number locations, and a periodic maintenance schedule for inspection, cleaning, adjustment, and replacement.

Workshop tables cover tightening torques, fluid requirements, clearances, wear limits, carburetor settings, and electrical test data. The tool list identifies flywheel puller T03 and piston pin removal tool T08. Steering service calls for universal wrench 09910-60611.

Some specifications vary between the manual's sections, including cylinder head nut torque, spark plug gap, and fuel tank capacity. Confirm the applicable figure before using it for service.

Follow standard shop safety practices and support the scooter securely before wheel, steering, or brake disassembly.

Selected Piston, Carburetor, and Brake Inspection Data

Standard piston-to-cylinder clearance is 0.06–0.07 mm, with a 0.120 mm service limit. The PZ19JB carburetor tables specify a float height of 13 ± 1 mm.

The front brake disc inspection lists a minimum disc thickness of 3.5 mm.
