Honda GX160H1/K1/T1/U1/UT1 Engine Parts Catalog Collection, 2005 (P/N 13Z1T0E2)
1,651 Pages • Printable PDF • 18.91 MB • Download
Honda Models Covered & Key Technical Specifications

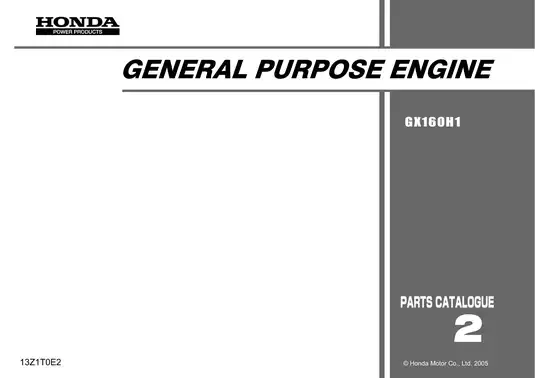

Models: GX160H1, GX160K1, GX160T1, GX160U1, GX160UT1
Models & Model Codes:
GX160H1 — LD, LDT, QD, QDJ1, QMK3, QMK4, QX, QXU, QX2, RD, SD, SH, SMK4, SX, SXE, SXJ1, VSK3, VSK4, VSX, VS3, VXH, VXJ1, VXK3, VXK4, WMB0, VSP, VDD
GX160K1 — AR, ARC6, BIH, BIS, BL, DS, DSP, EMA, EMA2, EN, ET, ETX, H1, HB24, HG1, HG12, HH, HH26, HHQ4, HX, HX2, HX26, HX4, HXE, HXE2, HXE8, HXQ, HXU, KR, KTA, L1, LA1, LAX, LAX2, LD, LD4, LDB1, LDB3, LDM, LH, LHB3, LHQ4, LHW, LJ, LJC7, LJD, LJG, LJS, LMT, LSJ, LSJ4, LSK, LSS, LSS1, LSS4, LTA, LTK, LVL, LVSH, LW2, LX, LX2, LX26, LX4, LXU, NDM4, NJ, NJC1, NJG, NSJ, NW, PH, PHM, PHU, PM, PM2, PX, PX2, PXU, Q1, QA, QA2, QA26, QAB1, QAB3, QAX, QAX2, QBBR, QBC2, QBT2, QBT6, QBU2, QCB2, QCL, QD, QDBR, QE, QEBR, QFE4, QGR2, QGR9, QH, QH2, QH26, QHE, QHP1, QHQ4, QI2, QIH1, QKA4, QM, QMC6, QMC8, QMD6, QME4, QMH, QMX2, QMZ2, QNT, QNT2, QNT4, QNZ, QP, QPU, QS2, QSC2, QSC9, QT, QVL, QVSH, QWA4, QWM2, QWX2, QWX3, QX, QX2, QX22, QX26, QX4, QX7, QXB, QXB1, QXBR, QXC, QXC6, QXC9, QXE, QXE2, QXE4, QXE6, QXE8, QXF, QXF2, QXM1, QXQ, QXS, QXS2, QXU, QXW, QXW2, QZ, R1, RAC, RD, RD4, REX4, RFR, RFR2, RH, RH2, RH26, RHA, RHA2, RHQ4, RMB4, RMD, RMG2, RNG, RSK, RSS1, RTB2, RX, RX4, RXE, RXE2, RXE4, RXU, S1, S1CY, SAC, SAD2, SCJ, SD, SD16, SD4, SDB1, SDB3, SDN, SDS, SDS2, SDS3, SE, SEE, SG24, SH, SHM, SHQ4, SHR4, SHRY, SIH, SJ, SJC, SJC1, SJC5, SJG, SKM, SM11, SM12, SM14, SMB4, SMC7, SMC9, SMJ, SMJ1, SMW2, SMX4, SNX, SNX1, SSK1, SSK2, SSX2, ST, STA, STM, STP, STQ, SW2, SWG4, SWX, SWX2, SWX4, SX, SX4, SX7, SXB, SXE, SXE4, SXP1, SXS4, SXU, SYA, T1, TCS2, TH, THU, TX, TX2, TX26, TX4, TXBR, TXC9, TXU, U1, UH, UIH, UX, UXU, V1, VA, VA2, VEB2, VEBM, VED, VED1, VED2, VED3, VED4, VED5, VED6, VED7, VEN2, VES, VES6, VG24, VGE4, VH, VHA7, VHH4, VHQ4, VIH, VIH1, VMB3, VMS4, VMS7, VMT, VPM4, VPM5, VPM7, VPR4, VPR7, VS, VS1, VS17, VS3, VS4, VSB1, VSD, VSD1, VSD7, VSDP, VSG, VSW, VSW3, VSW4, VSW5, VSW6, VSX, VSX1, VSX3, VTD, VTD1, VTE2, VTH4, VTU1, VTX, VTX1, VVSH, VW12, VWA, VWA2, VX, VX2, VX26, VX4, VXBR, VXD, VXD1, VXE, VXE4, VXE6, VXE7, VXG, VXK, VXM, VXP, VXU, VXU1, VXW, VXW1, VXW2, W1, WDA6, WIH1, WJP, WKD6, WKT2, WKT4, WKT6, WMB0, WMB1, WME2, WME4, WMK, WMT
GX160T1 — BIH, BIS, LAC, LAC1, LD, LH, LH2, LHB3, LHQ4, LX, LX2, LX26, LX4, LXU, PD, PXU, Q1E2, QA2, QA26, QAB3, QBBR, QBC2, QBT6, QC, QCB2, QCL, QD, QDBR, QEBR, QGR9, QH26, QHP1, QHQ4, QIH, QM, QMC6, QMC8, QMD6, QME4, QMP1, QMP4, QMZ2, QNT, QP, QPU, QT, QTB, QTD, QW24, QWA4, QWW2, QWX2, QX, QX2, QX26, QX4, QX7, QXBR, QXE2, QXF2, QXS2, QXS3, QXU, SD, SD16, SD2, SDC, SG24, SH, SH5, SHQ4, SHQ5, SIH, SK1, SK2, SMC7, SMC9, SWX2, SX, SX4, SX7, SXS4, SXSC, SXU, TCS2, TD, TW24, TX, TX2, TX26, TX4, TXBR, TXU, VA2, VG24, VGE4, VGE5, VH, VHB, VHH4, VHK, VIH, VMS4, VPM4, VPM5, VPM6, VPR4, VS1, VS17, VSC, VSD, VSD1, VSD7, VSDT, VWA2, VWW2, VX, VX2, VX4, VXBR, VXN, VXU1, VXW2, W1B0, W1B1, WBKT, WBT, WBT2, WJP, WKS, WKT2, WKT4, WKT6
GX160U1 — AR, ARC6, EMA2, EMAN, HB24, HG12, HH26, HHQ4, HX2, HX26, HX4, HXE2, HXE8, HXU, LHN4, LHQ4, LSJ4, LX2, LX26, LX4, LXU, NDM4, PXU, QA2, QA26, QAX2, QBC2, QBT6, QCB2, QCL, QE, QFE4, QGR2, QGR9, QH2, QH26, QHQ4, QI2, QKA4, QMC6, QMC8, QMD6, QME4, QMX2, QMZ2, QNT, QNT4, QPU, QS2, QSC2, QSC9, QWA4, QWX2, QX2, QX22, QX26, QX4, QX7, QXC6, QXC9, QXE2, QXE4, QXE6, QXE8, QXF2, QXS2, QXU, QXW, RD4, RH2, RH26, RHA2, RHG4, RHQ4, RMB4, RMG2, RSK, RTB2, RX4, RXE2, RXE4, RXU, S1CY, SAD4, SD16, SD4, SDS, SE, SG24, SHQ4, SHRY, SM12, SM14, SMC7, SMC9, SMW2, SMX4, SSX2, SWG4, SWX2, SWX4, SX4, SX7, SXE4, SXS4, SXU, TCS2, TX2, TX26, TX4, TXC9, TXU, UXU, VA2, VED2, VED6, VEN2, VES6, VG24, VG29, VGE4, VHA7, VHH4, VMS4, VMS7, VPM4, VPM5, VPM7, VPR4, VPR7, VS17, VSD, VSD1, VSD7, VSW4, VTH4, VW12, VWA2, VWS, VX2, VX4, VXE4, VXE7, VXU1, VXW2, WDA6, WKD6, WKT2, WKT4, WKT6, WMB0, WME2, WME4, WMT4
GX160UT1 — LHQ4, LX2, LX26, LX4, LXU, PXU, QA2, QA26, QBC2, QBT6, QCB2, QCL, QGR9, QH26, QHG4, QHQ4, QMC6, QMC8, QMD6, QME4, QMP4, QMZ2, QNT, QPU, QW24, QWA4, QWW2, QWX2, QX2, QX26, QX4, QX7, QX9, QXE2, QXF2, QXS2, QXU, SD16, SG24, SHQ4, SMC7, SMC9, SWX2, SX4, SX7, SX9, SXS4, SXU, TCS2, TW24, TX2, TX26, TX4, TXDU, TXU, VA2, VG24, VGE4, VGE5, VHA9, VHH4, VMS4, VPM4, VPM5, VPM8, VPM9, VPMN, VPR4, VPR9, VS17, VS19, VSD, VSD1, VSD7, VSD9, VWA2, VWW2, VWWN, VX2, VX4, VXE9, VXU1, VXW2, WKS, WKT2, WKT4, WKT6
Sub-models / Variants: GX160K1 propane types: SXP1, VSDP, VXP
Model Years: 2003–2007 (2003, 2004, 2005, 2006, 2007)
Serial Numbers: GCAAH-1000001~ (GX160H1); GCACK-1000001~ (GX160U1); GCAFT-1000001~ (GX160UT1)
GX160K1 — P/N 13Z2F401: GCAAK-1000001~
GX160K1 — P/N 13ZK8401: GC02-8670001~ for the standard catalog types; GDAA-2010001~ for propane types SXP1 and VXP; GC02-9100001~ for Indonesia-KD types BIH, BIS, LVSH, QVSH, SIH, VIH and VVSH; GC02B-1000001~ for Brazil-KD types QBBR, QDBR, QEBR, QXBR, TXBR and VXBR.
GX160K1 — P/N 13ZH81E0: GC02-2000001~8669999 for the remaining standard types listed in this catalog, with these type-specific ranges taking precedence:
-
GC02-6100001~8669999: BL, HXE2, HX4, LVL, NJC1, QBC2, QCL, QI2, QS2, QVL, QX22, QX7, RMG2, RXE2, SD4, SMX4, SWX2, SWX4, SX7, S1CY, VED6, VEN2, VES, VHA7, VMS7, VMT, VPM5, VPM7, VPR7, VSD7, VSG, VSX3, VS17, VXE7, WDA6, WKD6, WKT6
-
GC02-2000001~6463462: DS, DSP, LD4, LJD, LSS1, LTK, PH, PX2, QBT2, QXB1, REX4, SDS2, SDS3, SEE, SJC, STP, TH, VS, VXE6
-
GC02-2000001~5984124: EN, ET, ETX, HG1, HXQ, LAX, LAX2, LTA, PM, QAX, QBU2, QNT2, QXB, QXF, QXS, QZ, RAC, RFR, RHA, SAC, SAD2, SMB4, SSK2, STA, SWX, SW2, VA, VEB2, VHQ4, VS1, VTE2, VWA, VXE, VXW, VXW1, H1, T1, U1, V1
-
GC02-2000001~4223072: EMA
-
GC02-2000001~5519983: LDB1
-
GC02-2000001~5547391: LDB3
-
GC02-2000001~5200121: NW
-
GC02-2000001~5454007: QA
-
GC02-2000001~5010641: RNG
-
GC02-2000001~5100005: SDN
-
GC02-2000001~4927944: SXB
-
GC02-2000001~4007436: THU
-
GC02-2000001~4344207: VH
-
GC02-2000001~5293944: VTD1
-
GC02-2000001~5294084: VTX
-
GC02-2000001~4433284: VXG
-
GC02-9100001~9999999: Indonesia-KD types QIH1, UIH, VIH1, WIH1
-
GDAA-2000001~2009999: propane type SXP1
-
GDAA-2000001~2000028: propane type VSDP
-
GDAA-2000001~6463462: propane type VXP
GX160T1 — P/N 13Z0T0E3: GCABN-1000001~ for BIH, BIS, QIH, SIH and VIH; GCABB-1000001~ for QBBR, QDBR, QEBR, QXBR, TXBR and VXBR.
GCABT-1000001~9999999 applies to LHQ4, LXU, LX2, LX26, LX4, PXU, QA2, QA26, QBC2, QBT6, QCB2, QCL, QGR9, QHQ4, QH26, QMC6, QMC8, QMD6, QME4, QMP4, QMZ2, QNT, QPU, QWA4, QWW2, QWX2, QW24, QXE2, QXF2, QXS2, QXU, QX2, QX26, QX4, QX7, SD16, SG24, SHQ4, SMC7, SMC9, SWX2, SXS4, SXU, SX4, SX7, TCS2, TW24, TXU, TX2, TX26, TX4, VA2, VGE4, VGE5, VG24, VHH4, VMS4, VPM4, VPM5, VPR4, VSD, VSD1, VSD7, VS17, VWA2, VWW2, VXU1, VXW2, VX2, VX4, WKT2, WKT4, WKT6 and WKS.
GCABT-1000001~ applies to the remaining GCABT types, including the added LH2, QXS3, SD2, SHQ5, SH5 and WBT2 types.
-
Engine type: General Purpose Engine
-
Crankshaft variants: 20mm Spline, 19mm Straight, 20mm Straight, 3/16 Tapered, M18 Stepped thread (GX160H1)
-
Voltage: 12 V (GX160H1 LDT lamp coil)
-
Reduction variants: GX160H1 LD/LDT chain-case reduction; GX160H1 RD clutch-and-chain reduction
Honda Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

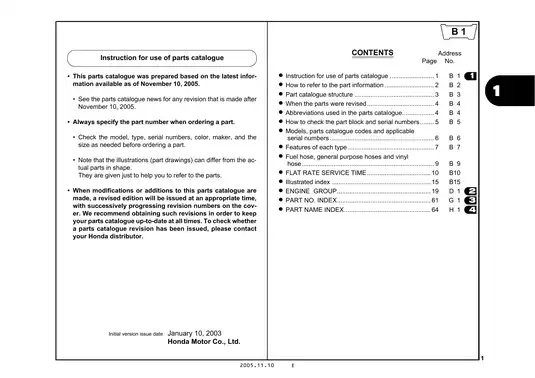

| GX160H1 parts catalog with Parts Catalogue News — P/N 13Z1T0E2 | 103 |
| GX160K1 parts catalog, GCAAK-100, with Parts Catalogue News — P/N 13Z2F401 | 317 |
| GX160K1 parts catalog, GC02-200/610/910 and propane GDAA-200, with Parts Catalogue News — P/N 13ZH81E0 | 367 |
| GX160K1 parts catalog, GC02-867/910, GC02B-100 and propane GDAA-201, with Parts Catalogue News — P/N 13ZK8401 | 354 |
| GX160T1 parts catalog with Parts Catalogue News — P/N 13Z0T0E3 | 127 |
| GX160U1 parts catalog with Parts Catalogue News — P/N 13Z4J601 | 235 |
| GX160UT1 parts catalog with Parts Catalogue News — P/N 13Z4M601 | 147 |
| Additional introductory page | 1 |
The Parts Catalogue News sheets update the corresponding base catalogs with revised part numbers, application changes and added engine types. For an added type, the news sheet identifies the base type used for parts that are not repeated in the supplement.
This collection provides illustrated parts identification and labor-time references. Step-by-step repair procedures and diagnostic testing require the separate service manual referenced by the catalogs.
Searchable Catalog Text, Bookmarks and PDF Contents
Text lookup and navigation: Catalog text is searchable, and embedded bookmarks organize the individual publications, parts groups and indexes. Some bookmark destinations are inaccurate; the GX160U1 back-cover bookmark, for example, opens a parts-index page. Small entries in dense parts tables benefit from zooming.
The single printable PDF contains 1,651 pages, including 499 Parts Catalogue News pages and one additional introductory page. Catalog covers and blank pages are included in the section totals above.
Engine Components, Fuel Systems and Reduction Assemblies
The following highlights are a selection of the catalog contents. Further entries include labels, tools and gasket kits.
-
Internal engine parts: Exploded cylinder-head, cylinder-barrel, crankshaft, piston and camshaft views connect illustration references with part numbers, quantities and application notes.
-
Fuel and intake components: Carburetor assemblies, float and jet components, fuel tanks and air-cleaner variants have separate illustrated listings for the applicable engine types.
-
Starting and electrical components: Recoil starters, starter motors, flywheel/ignition-coil assemblies and control boxes are documented as replacement-parts groups with type-specific applications.
-
Reduction assemblies: Illustrated listings identify chains, sprockets, PTO shafts, clutch components and housings for the reduction configurations covered by each catalog.
-
Parts lookup and labor references: Illustrated indexes, part-number indexes, part-name indexes and flat-rate entries support parts selection and repair estimating.
Suited to mechanics and parts staff who can match engine types and serial numbers to the application columns before selecting replacement parts.
Matching the Engine Type to the Correct Listing
Catalog selection: The three GX160K1 publications cover different engine-number families, including propane and regional KD configurations. The GX160K1 designation alone does not identify the correct parts listing.
Added-type references: The GX160H1 supplements link QMK3 to QMK4, VSP to VXK4 and VDD to SD for shared parts. These relationships let you combine the supplement’s differences with the appropriate base listing when preparing a parts order.
Application changes: Serial-number columns distinguish earlier and later parts, including a starter-pulley revision in the GX160H1 catalog. The GX160U1 news sheets also withdraw the VEBM catalog type because it had no mass-production result.
Using the Exploded Views and Labor Entries
Illustration references: Views titled Cylinder Head, Carburetor, Flywheel/Ignition Coil, Starter Motor and Reduction show how individual components relate to their numbered parts lists. Assembly boundaries and cross-references distinguish complete assemblies from components listed in another block. Honda notes that illustration shapes can differ from the actual parts.
Work estimates: Flat-rate service entries and labor-operation numbers provide reference times for listed replacement work. Inclusion notes identify associated work already allowed for in an entry. These time allowances depend on the servicing conditions described in the catalog and do not supply the repair procedure itself.
Fuel-hose selection: The hose guide distinguishes fuel hose from general-purpose and vinyl hose and warns that these categories are not interchangeable. Matching the dimensions alone is insufficient when selecting hose for a fuel application.
Selected Oil-Seal and Piston-Clip Size Entries
The GX160H1 cylinder-barrel and crankcase-cover listings identify oil seal P/N 91202-Z1T-003 by the size code 25X41X6.
The piston group lists an 18 mm piston-pin clip. These component-size entries accompany the part numbers used to identify replacement parts.
