Honda GX200 Engine Parts Catalog Collection, 2002–2007 (P/N 13ZK0402)
715 Pages • 1 Printable PDF (English) • Download
Honda Models Covered & Key Technical Specifications
Models: GX200, GX200T, GX200U, GX200UT
Models & Model Codes:
GX200 — Standard (GCAE-190 and earlier GCAE production): BL, HX, HX2, HX26, HX4, HXQ, HXU, LAC, LD, LD4, LDB1, LDB2, LDN, LH, LHB2, LHP1, LHQ4, LJ, LJC1, LJG, LSJ, LSK, LVL, LX, LX2, LX4, NAX, NAX1, NDF1, NDJ, NJ, NJC1, NJG, NMB, NTB, NTU, NW, NW2, NWA, NWB2, NX, PMX, PX, PX2, PXU, QA, QA2, QAB2, QD, QG, QG2, QH, QH26, QH4, QHP1, QHQ4, QJF, QJF1, QM, QSW4, QT, QTP, QTP2, QVL, QX, QX2, QX26, QX4, QX7, QXB2, QXC, QXC9, QXE, QXE2, QXE4, QXE6, QXE8, QXF, QXF1, QXF2, QXH4, QXQ, QXS2, QXU, RG, RH, RH2, RH26, RH3, RHA2, RHQ4, RJE, RMG2, RX, RX2, RX4, RXU, SD, SD4, SDB1, SDB2, SDN, SH, SHQ4, SJ, SJG, SM11, SM12, SM14, SM21, SM22, SM24, SMC4, SMG1, SMG2, SWG4, SX, SX4, SX7, SXE4, SXU, TX, TX2, TX4, TXE, TXU, TXU1, UX, VA2, VAA, VAA1, VEE1, VEN, VEN1, VEN2, VEN4, VES, VES1, VGG2, VMG1, VMT, VNG4, VPM4, VS17, VSD, VSD1, VSD2, VSD7, VSW, VSW1, VSW2, VX, VX2, VX4, VXK, VXU, VXU1. Indonesia-KD (GCAE-900): LDNI, LVSH, QVSH, SDNI. Brazil-KD (GCAEB-100): QDBR, QXBR, TXBR, VXBR. Propane Engine (GDAB-101 and earlier GDAB production): VXP, VX4P.
GX200T — GCACT: LAC, LAC1, LHB2, LHB3, LHK, LHP1, LX2, LX4, PXU, QAB2, QD, QG2, QH26, QHP1, QHQ4, QM, QT, QTB, QTD, QTP, QX, QX2, QX26, QX4, QX7, QXB2, QXU, SD, SHQ4, SHQ5, SK, SM12, SMC4, SX4, SX7, SXU, TX2, TX4, TXU, TXU1, VGG2, VGS5, VHB, VPM4, VPM6, VS1, VS17, VSD, VSD1, VSD2, VSD3, VSD7, VSP, VX, VX2, VX4, VXU, VXU1. GCACB: QDBR, QXBR, TXBR, VXBR. GCACN: QDNI, SDNI.
GX200U — GCAJK: HX2, HX26, HXU, LHQ4, LX2, LX4, NDJ, PXU, QG2, QH26, QH4, QHQ4, QTP2, QX2, QX26, QX4, QX7, QXB2, QXC9, QXE2, QXE4, QXE6, QXE8, QXH4, QXS2, QXU, RH2, RH26, RHA2, RHG4, RHQ4, RMG2, RX2, RX4, RXU, SHQ4, SM12, SM14, SM22, SM24, SMC4, SWG4, SX4, SX7, SXE4, SXU, TX2, TXU, TXU1, VEN2, VEN4, VENN, VGG2, VPM4, VS17, VSD, VSD1, VSD2, VSD7, VX2, VX4, VXU, VXU1.
GX200UT — GCAHT: LX2, LX4, LXAU, PXU, QG2, QH26, QHQ4, QMP4, QX2, QX26, QX4, QX7, QX9, QXB2, QXU, SHQ4, SM12, SMC4, SX4, SX7, SX9, SXU, TX2, TX4, TXD1, TXDU, TXU, TXU1, VGG2, VGGN, VGS5, VGS9, VPM4, VPM8, VPM9, VS17, VS19, VSD, VSD1, VSD2, VSD7, VSD9, VX2, VX4, VXU, VXU1.
Model Years: 2002–2007 (2002, 2003, 2004, 2005, 2006, 2007)
Serial Numbers: GX200 standard: GCAE-1000001–1899999, GCAE-1900001–8999999, with GCAE-1900001~ shown for selected types. GX200 Indonesia-KD: GCAE-9000001–9999999 (LDNI), GCAE-9000001~ (LVSH, QVSH, SDNI). GX200 Brazil-KD: GCAEB-1000001~. GX200 Propane Engine: GDAB-1000001–1009999 and GDAB-1010001~ (VXP), GDAB-1000001–1000107 (VX4P). GX200T: GCACT-1000001~, GCACB-1000001~, GCACN-1000001~. GX200U: GCAJK-1000001~. GX200UT: GCAHT-1000001~.
- PTO reduction variants: GX200: L-type chain drive, R-type clutch reduction, H-type reduction, and BL-type clutch reduction. GX200T: chain-drive reduction on LHB2 and applicable related types. GX200U: L-type chain drive, R-type clutch reduction, and H-type reduction. GX200UT: L-type chain drive on LX2 and LX4, with LX2 used as the base for LXAU.
Honda Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| Honda GX200 Parts Catalog, standard, propane, Indonesia-KD, and Brazil-KD (2007, P/N 13ZK0402) | 151 |
| Honda GX200 Parts Catalog, earlier standard, propane, and Indonesia-KD types (2004, P/N 13ZL00E6) | 164 |
| Honda GX200T Parts Catalog (2002, P/N 13Z0V0E2) | 158 |
| Honda GX200U Parts Catalog (2005, P/N 13Z4S601) | 131 |
| Honda GX200UT Parts Catalog (2005, P/N 13Z4V601) | 110 |
Use the catalog that matches the engine model, type code, and serial number. The included Honda Parts Catalogue News bulletins document later changes to the original listings, including added types and corrected part applications.
These are parts identification and dealer labor references. For teardown, reassembly, torque and adjustment specifications, or diagnostic procedures, use the separate Honda service manual.

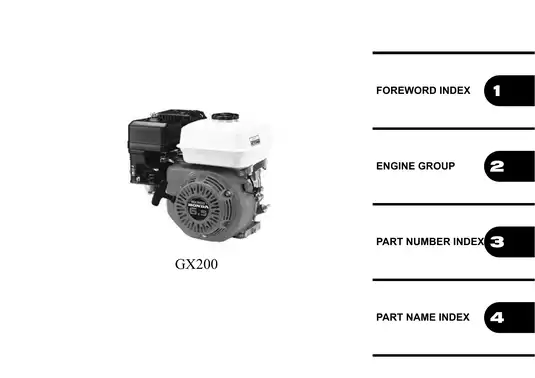

PDF Search, Bookmarks, and Page Count
Finding entries in the PDF: Bookmarks open each catalog and take you to model tables, assembly groups, and indexes. Text search works across the catalog sections, though some entries in the 2004 catalog have character encoding that can prevent a match. The opening cover has no searchable text.
The collection comes as one printable English PDF with 715 pages. The total includes one separate cover page and nine blank pages within the catalog sections. The catalog page counts above also include their respective Honda update bulletins.
Engine Parts, Build Codes, and Labor References
This selection from the catalogs includes parts and configuration tables. Other entries cover spark arresters and optional muffler covers.
-
Engine assemblies: Exploded views and OEM parts tables cover the cylinder head, cylinder barrel, crankcase cover, crankshaft, piston, and camshaft.
-
Carburetors and fuel systems: Type tables link engine builds to carburetor IDs. Parts blocks cover carburetor internals, fuel tanks, and related hardware.
-
Starting, ignition, and charging: Recoil starters, starter motors, flywheels, ignition coils, charging coils, and control boxes have separate parts listings.
-
Crankshaft and PTO options: Configuration tables distinguish shaft designs and show which types use reduction units, with separate drawings for the applicable assemblies.
-
Parts revisions: The 87 numbered Honda Parts Catalogue News bulletins document added types, superseded or deleted parts, and corrected applications through March 2008.
-
Dealer labor references: Honda Labor Operation Numbers and flat-rate times identify replacement jobs and the work included in the labor allowance.
The catalogs suit technicians, engine rebuilders, and parts-counter staff who identify replacement parts from the engine number, type code, and stamped carburetor ID.
Match the Build Before Ordering
Carburetor tables distinguish BE64S, BE64B, and BE64F variants, while the VXP and VX4P propane listings use BEL1A identification. The corresponding parts blocks list the body, jets, nozzle, float chamber, gaskets, packings, and control hardware.
The configuration tables also distinguish air-cleaner styles, fuel-tank layouts, control equipment, and exhaust parts. Engines carrying the same basic GX200 name can use different crankshafts, carburetors, switches, or reduction assemblies.
Read the Drawing with the Parts Table

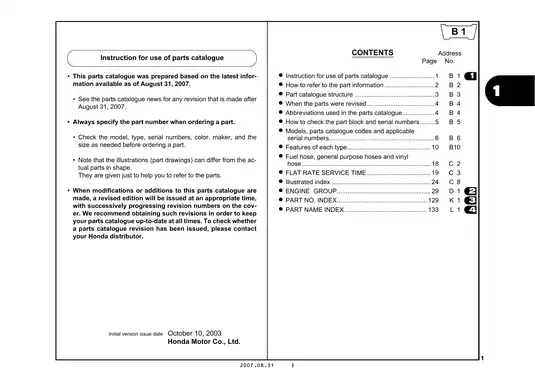

Illustration reference numbers lead to the Honda part number, description, required quantity, applicable type, and any serial-number cut-in. Broken outlines identify complete assemblies, while separately orderable components retain their own entries. Optional parts are marked in the quantity column. The illustrated index, part-number index, and part-name index offer different starting points for the same lookup.
The labor tables identify operations such as engine removal and installation, crankshaft or piston replacement, and carburetor overhaul. Included-work notes show when a labor allowance already covers work such as valve-clearance adjustment or refacing.
Check Serial Cut-Ins and Fuel Hose
Honda notes that a drawing can differ in shape from the actual part. Matching the model, type, and engine number to the parts row helps avoid ordering a cylinder head, crankcase cover, or switch from the wrong side of a production change.
For fuel-system parts, match the specified hose type and bulk-part reference. General-purpose hose and vinyl hose are unsafe substitutes for the specified fuel hose.
Crankshaft Fitment Examples
The GX200UT type table lists a 20 mm splined crankshaft for LX2 and LX4. It lists a 19.05 mm straight shaft for types such as QG2 and QX2, and a 20 mm straight shaft for SHQ4 and SMC4. The type column distinguishes the two 20 mm designs when selecting a replacement.
