Honda GX610 & GX620 Engine Parts Catalog Collection, 2006 (P/N 13ZJ00E2)
771 Pages • 1 Printable PDF (English) • Download
Honda Models Covered & Key Technical Specifications
Models: GX610, GX610K1, GX610 Propane Engine, GX610U1, GX610R1, GX620, GX620K1, GX620 Propane Engine, GX620K1 Propane Engine, GX620U1, GX620R1
Models & Model Codes:
GX610 — PZE, Q1, QAC6, QAF, QAF2, QDA1, QDE, QDE1, QDE6, QDF, QDF2, QDF6, QDW, QXE4, QXF6, QYF, QZA, QZA1, QZA6, QZB, QZD, QZD1, QZE, QZE4, QZE6, QZF, QZF1, QZF6, QZX4, S1, TXF2, V1, VD, VXA3, VXD, VXE, VXE1, VXE3, VXE4, VZA, VZA1, VZA4
GX610K1 — PZE, PZE/A, QAD2, QAD2/A, QAF, QAF/A, QAF2, QAF2/A, QDE, QDE/A, QDF, QDF/A, QDF2, QDF2/A, QDF6, QDF6/A, QDW, QDW/A, QDX2, QDX2/A, QKF, QWF, QWF/A, QYF, QYF/A, QZA, QZA/A, QZA6, QZA6/A, QZB, QZB/A, QZB2, QZB2/A, QZE, QZE/A, QZE3, QZE3/A, QZE4, QZE4/A, QZE6, QZE6/A, QZF, QZF/A, QZF1, QZF1/A, QZF8, QZF8/A, QZK, QZX5, QZX5/A, SWD, SWD/A, TXF2, TXF2/A, VD, VD/A, VDF2, VDF2/A, VEP4, VEP4/A, VXD, VXD/A, VXE, VXE/A, VXE1, VXE1/A, VXE3, VXE3/A, VXE4, VXE4/A, VZA, VZA/A, VZA1, VZA1/A, VZA2, VZA2/A, VZE1, VZE1/A
GX610 Propane Engine — QAFP, QAFU, VXEP
GX610U1 — PZE, QAD2, QAF, QAF2, QDE, QDF, QDF2, QDF6, QDW, QDX2, QWF2, QXF5, QYF, QZA, QZA5, QZA6, QZB, QZB2, QZBN, QZE, QZE3, QZE4, QZE6, QZF, QZF1, QZF8, QZX5, TXF2, VD, VDF2, VEP4, VXD, VXE, VXE1, VXE4, VZA, VZA1, VZA2
GX610R1 — PZE, QAD2, QAF, QAF2, QDE, QDF, QDF2, QDF6, QDW, QDX2, QWF2, QYF, QZA, QZA5, QZA6, QZB, QZB2, QZE, QZE4, QZE6, QZF, QZF1, QZF8, QZX5, TXF2, VD, VDF2, VEP4, VXD, VXE, VXE1, VZA, VZA1, VZA2
GX620 — Q1, QAB, QAB4, QAB6, QAC6, QAF, QAF1, QAF2, QAF3, QAF4, QAF5, QAF6, QAF7, QAF8, QAP2, QDA1, QDE1, QDF, QDF4, QDF6, QDW, QXA, QXA1, QXA3, QXA4, QXA6, QXB1, QXC4, QXE1, QXE3, QXF1, QXF3, QXF6, QYA, QYA4, QYF, QYF4, QYF6, QZX4, QZZ, S1, SAE1, SAF1, TXF2, V1, VAF, VAF4, VAF6, VXA1, VXA3, VXE1, VXE2, VXE4, VXE8, VXZ4, VYA1, VYA3, VZA1, VZA3, VZD, VZE1, VZE5, VZE7, VZE8, VZF1
GX620K1 — QAB, QAB/A, QAB6, QAB6/A, QAD2, QAD2/A, QAF, QAF/A, QAF1, QAF1/A, QAF2, QAF2/A, QAF5, QAF5/A, QAF6, QAF6/A, QAF7, QAF7/A, QAF8, QAF8/A, QAF9, QAF9/A, QAX1, QAX1/A, QDF, QDF/A, QDF6, QDF6/A, QDP2, QDP2/A, QDW, QDW/A, QKW, QKW1, QKW2, QKW3, QWA6, QWA6/A, QWD, QWF6, QWF6/A, QXA, QXA/A, QXA3, QXA3/A, QXA6, QXA6/A, QXB1, QXB1/A, QXC2, QXC2/A, QXE1, QXE1/A, QXE4, QXE4/A, QXE5, QXE5/A, QXE7, QXE7/A, QXE8, QXE8/A, QXF, QXF/A, QXF3, QXF4, QXF4/A, QXF6, QXF6/A, QXF8, QXF8/A, QXW2, QXW2/A, QXW4, QXW4/A, QYA, QYA/A, QYD, QYD/A, QYF, QYF/A, QZB, QZB/A, QZB2, QZB2/A, QZB3, QZB3/A, QZD, QZD/A, QZE3, QZE3/A, QZE4, QZE4/A, QZF1, QZF1/A, QZF2, QZF2/A, QZF8, QZF8/A, QZX1, QZX1/A, QZX4, QZX4/A, QZX5, QZX5/A, SAE1, SAE1/A, SAF1, SAF1/A, SYA, SYA/A, TXF2, TXF2/A, VAB2, VAB2/A, VAB3, VAB3/A, VAF, VAF/A, VAF6, VAF6/A, VAY, VDB2, VDB2/A, VDC2, VDC2/A, VEP4, VEP4/A, VXA1, VXA1/A, VXA4, VXA4/A, VXA5, VXA5/A, VXA6, VXA6/A, VXD4, VXD4/A, VXE1, VXE1/A, VXE2, VXE2/A, VXE4, VXE4/A, VXE8, VXE8/A, VXF, VXF/A, VXF4, VXF4/A, VXP2, VXP2/A, VXZ4, VXZ4/A, VYA1, VYA3, VYA3/A, VYE3, VYE3/A, VZA1, VZE2, VZE7, VZE7/A, VZE8, VZE8/A, VZE9, VZS7, VZS8
GX620 Propane Engine — QAFP, QAFU, QXAP, QXAU, VABP, VAFP, VAFU, VXAP, VXAU
GX620K1 Propane Engine — VXC, VXC/A, VXC1, VXC1/A, VXC2, VXC2/A
GX620U1 — QAB, QAB6, QAD2, QAF, QAF1, QAF2, QAF9, QDF, QDF6, QDP2, QDPN, QDW, QWA6, QWF6, QXA, QXA3, QXA6, QXB1, QXC2, QXE, QXE4, QXE7, QXE8, QXF, QXF4, QXF5, QXF6, QXF8, QXFA, QXW2, QXW4, QYA, QYD, QYF, QZA5, QZB, QZB2, QZB3, QZE3, QZE4, QZF1, QZF2, QZF8, QZP4, QZX4, QZX5, SAF1, TXF2, VAB2, VAB3, VAC3, VAF, VAF6, VDB2, VDC2, VDP2, VEP4, VXA1, VXA4, VXA5, VXA6, VXD4, VXE1, VXE2, VXE4, VXE8, VXF, VXF4, VXP2, VXZ4
GX620R1 — QAB, QAF, QAF1, QAF2, QDP2, QXB1, QXC2, QYF, QZB2, QZB3, TXF2, VAC3, VDB2, VXA1, VXE2
Model Year: 2006
Serial Numbers: GX610: GCAC-1000001~1040471 (Q1, QAC6, QDA1, QDE6, QDF6, QZF6, S1, V1, VXA3), GCAC-1000001~1999999 (other listed GX610 codes); GX610K1: GCAC-2000001~2059999 (original catalog codes), GCAC-2060001~ (/A codes and additional types QKF and QZK; the QZK bulletin lists base code QZF8/A as GCAC-2060001~9999999); GX610 Propane: GDAG-1000001~9999999 (QAFP, VXEP), GDAG-1000001~1000083 (QAFU); GX610U1/GX610R1: GCAPK-1000001~; GX620: GCAD-1000001~1081031 (Q1, QAB4, QAC6, QAF4, QDW, QXF1, QYA4, QYF6, S1, V1), GCAD-1000001~1097532 (QAF1), GCAD-1000001~1097898 (QAF2), GCAD-1000001~1087928 (QAF3), GCAD-1000001~1099686 (QAP2), GCAD-1000001~1101292 (QXA1), GCAD-1000001~1097508 (QXA3), GCAD-1000001~1097610 (QXB1), GCAD-1000001~1099392 (TXF2), GCAD-1000001~1099191 (VXA1), GCAD-1000001~1088368 (VXA3), GCAD-1000001~1098725 (VZE1), GCAD-1000001~1060884 (VZE5), GCAD-1000001~1999999 (other listed GX620 codes); GX620K1: GCAD-2000001~2159999 (original catalog codes with /A counterparts), GCAD-2160001~ (/A codes and additional types QKW, QKW1, QKW2, QKW3, QWD, VAY, VZE2, VZE9, VZS7, VZS8), GCAD-2000001~9999999 (QXF3, VYA1, VZA1); GX620 Propane: GDAH-1000001~1000913 (QAFP, QAFU, VAFU, VXAP, VXAU), GDAH-1000001~9999999 (QXAP, QXAU, VABP, VAFP); GX620K1 Propane: GDABM-1000001~1009999 (VXC, VXC1, VXC2), GDABM-1010001~ (VXC/A, VXC1/A, VXC2/A); GX620U1/GX620R1: GCARK-1000001~. Type-specific limits and part-level serial breaks apply as listed in the catalog.
-
Engine type: V-Twin General Purpose Engine
-
Ignition system: Separate left- and right-side ignition coils
-
Carburetor series: BG21A, BG21B, BG21C, BG21D, BG21E, BG21F, BG21H, BG21J, BG21M, BG21N, BG21P, BG21Q, BG21R, BG21S, BG22A, BG22B, BG22C, BG22D, BG22F, BG22G, BG22J, BG22K, BG22M, BG22N, BG22P, BG22Q, BG22R, BG22S, BG22T, BG22V, BGL0A, BGL1A, BKL0A
-
Crankshaft options: 25mm Straight, 25.4mm Straight, 28.575mm Straight, 5/16" Tapered, M10 Tapered, 3/8" Tapered, 7/16" Tapered
-
Charging system: 12V/3A, 12V/20A
Honda Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

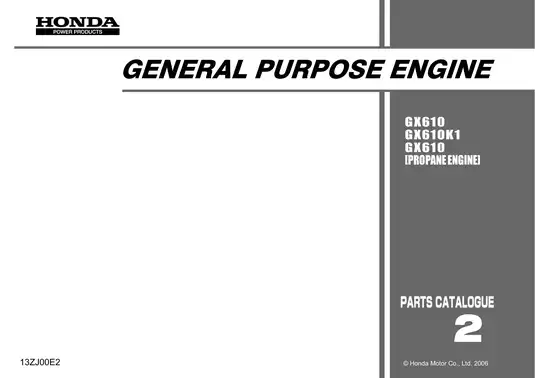

| Honda GX610, GX610K1, and GX610 Propane Engine Parts Catalog (P/N 13ZJ00E2, 2006, rev. 2) | 227 |
| Honda GX610U1, GX610R1, GX620U1, and GX620R1 Engine Parts Catalog (P/N 13Z6C602, 2008, rev. 2) | 163 |
| Honda GX620, GX620K1, GX620 Propane, and GX620K1 Propane Engine Parts Catalog (P/N 13ZJ10E7, 2005, rev. 7) | 380 |

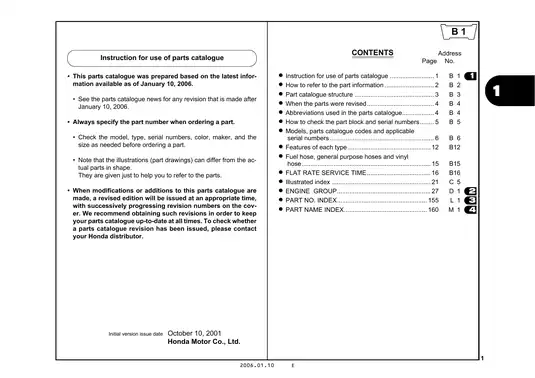

Start with the catalog that matches the engine designation. Use its type and serial-number tables to select the applicable parts listing, then check the included Parts Catalogue News for revisions or added types.
The catalogs cover parts identification and flat-rate labor allowances. Honda directs readers to a separate service manual for repair methods.
PDF Search, Bookmarks, and Page Count
Finding parts in the PDF: Search the catalog and bulletin text by part number or name. Bookmarks jump to each catalog, component groups, indexes, and the Parts Catalogue News sections.
The download is one printable English PDF with 771 pages, including one additional front page. The catalog page counts in the table already include 54, 24, and 108 pages of Parts Catalogue News, respectively, plus the original covers and seven blank pages across the collection.
Exploded Engine Views and Parts Fitment
This selection of catalog contents highlights the main parts references. The catalogs also list oil-alert components and engine labels.
- Engine assemblies: Exploded views and parts lists for cylinder heads, valve train, cylinder barrels, crankcase covers, crankshafts, pistons, and camshafts.
- Intake, fuel, and exhaust: Carburetor assemblies, air cleaners, fuel tanks, fuel pumps, mufflers, and spark arresters, with Honda part numbers and required quantities.
- Starting and electrical parts: Recoil starters, starter motors, flywheels, ignition coils, charging coils, control boxes, combination switches, and battery components.
- Controls and accessories: Throttle and governor controls, auto throttle, oil coolers, winter kits, and gasket kits, with parts assignments by engine type.
- Fitment and revisions: Engine serial-number tables, carburetor identification, equipment comparisons, and bulletins covering revised components and additional types.
- Labor and parts lookup: Flat Rate Service Time entries, Labor Operation Numbers, and illustrated, part-number, and part-name indexes.
The collection is suited to mechanics and parts-counter staff who use engine identification codes and illustrated parts lists to select replacement components.
Serial Breaks and Variant Matching
The identification tables link engine type, serial number, and carburetor ID to the applicable parts listings. The GX610K1 and GX620K1 tables distinguish original and /A catalog codes, and the U1/R1 catalog has its own model assignments.
Use the type and serial number together to distinguish similar-looking carburetors, ignition components, and crankshafts before ordering. The equipment tables distinguish standard, selective, and optional equipment, including shaft configurations and charging systems.
Parts Catalogue News: The bulletins record changes to part numbers, quantities, and serial applications. The GX610K1-QZK bulletin refers to QZF8/A for parts outside the bulletin's listings. The U1/R1 bulletins identify the corresponding U1 base types for added R1 variants.
Reading the Exploded Views
The Cylinder Head, Crankcase Cover, Carburetor, Starter Motor, and Control Box views link numbered callouts to part numbers, quantities, and application codes. Honda notes that an illustration may differ from the actual part, so check the callout against its application table before ordering.
Flat Rate Service Time
The FRT tables list labor allowances for work such as cylinder-head removal and installation, carburetor overhaul, valve-clearance adjustment, and throttle or governor adjustment. Labor Operation Numbers and the associated notes define the work covered by each allowance.
Bulk Hose Identification
The bulk-hose references explain fuel, general-purpose, and vinyl hose codes, including inside and outside diameters and the corresponding bulk part numbers. Use the specified fuel hose for fuel circuits. General-purpose and vinyl hose are intended for other applications.
Fastener and Hose Dimensions
For TXF2 versions of GX610U1, GX620U1, and GX620R1, the crankshaft parts list identifies bolt 90003-ZE3-600 as 3/8-24 UNF and 25 mm long. The bulk-hose reference identifies vinyl hose code 23 as 8.0 mm inside diameter and 12.0 mm outside diameter.
