Fiat-Hitachi FL 175 Crawler Loader Operation & Service Manual Set, 1994–2005 (P/N 604.00.511)
767 Pages • Printable PDF • 106.30 MB • Download
Hitachi Models Covered & Key Technical Specifications
Models: FIAT-HITACHI FL 175
Model Years: 1994–2005 (1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005)
Serial Numbers: FL14E service volume — main relief valve adjustment: S/N 070420 and up; service replacement manipulator for pilot controls: S/N 070101 - 070671
-
Engine: Fiat 8365.25.540, 6-cylinder diesel, 8102 cc displacement
-
Transmission: 15-inch single-stage torque converter, 3-speed powershift; Twin-Disc 6F-1507-15" MS 235 torque converter in the FL14E service volume
-
Operating Weight: 17,870 kg, with fuel, oil and standard tool kit
-
Hydraulic Pressure: 210 bar attachment-system pressure rating
-
Cooling System Capacity: 52 Liters
-
Track Roller Clearance: 0.42–0.60 mm (0.017–0.023 in), bushing-to-shaft clearance in the FL14E service volume
Hitachi Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

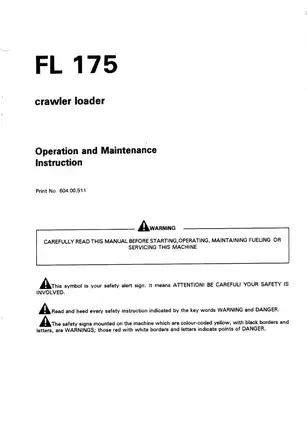

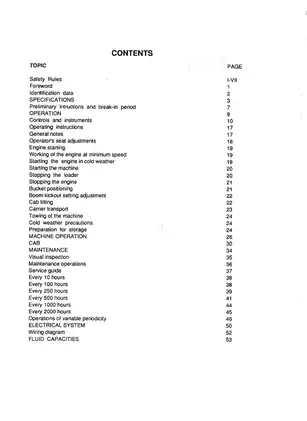

| Fiat-Hitachi FL 175 Crawler Loader Operation and Maintenance Instruction — P/N 604.00.511 | 61 |
| Fiatallis Crawler Loader Service Manual — P/N 73152729, printed 8/91, with incorporated Supplement #1; FL175 outer cover, FL14E interior title | 705 |
Use the operation volume for machine controls and scheduled upkeep, and the service volume for component repair procedures and related test specifications.
Service-volume identification: The outer cover reads FL175, but the interior title page and Supplement #1 identify FL14E. Match the machine and publication before applying the repair procedures.
Detailed undercarriage troubleshooting and wear evaluation refer to separate Manual 73136963. Engine diagnostic-kit instructions also reference Manual 73111023 and Troubleshooting Guide 75300010. These referenced publications are not included.
Printable PDF with Section Bookmarks
Search, navigation and wiring detail: PDF text search is not available. Embedded bookmarks cover both publications and the main workshop sections, although the two MAIN MENU entries have no usable destination. Small wire codes in the service diagrams are readable with zoom; some labels on the operation volume’s foldout wiring diagram remain blurred when enlarged.
One printable, 767-page PDF contains both publications and one introductory additional page. The Supplement #1 record sheet and incorporated additions and revisions are already included in the service-volume page count.
Crawler Operation, Component Repair and Circuit Diagnosis
The following selected coverage highlights summarize the main workshop areas rather than reproduce the complete contents. Other topics include storage preparation and cold-weather operating precautions.
-
Operation and maintenance: Operator controls, Electronic Data Monitor functions, bucket positioning, boom kickout, scheduled servicing, fuel-system bleeding and machine-specific safety procedures.
-
Engine repair: Step-by-step removal, disassembly, assembly and installation, with symptom-based troubleshooting and repair coverage for the cylinder head, pumps and injection nozzles.
-
Transmission and final drives: Converter and transmission overhaul, hydraulic-control components, final-drive inspection, floating-ring seals and sprocket-bearing preload adjustment.
-
Steering and brakes: Steering-clutch and brake-band repair, bevel gear and pinion adjustment, pilot valves, brake controls and steering-pump service.
-
Implement hydraulics: Flow and pressure testing, tank and pump removal, control-valve repair, bucket/boom and ripper pilot controls, and cylinder teardown.
-
Undercarriage service: Track-chain work, track-release overhaul, rollers, carrier rollers, idlers, sprocket ring gear, guards, track frames and rigid cross beam.
-
Electrical and cab: Electronic Data Monitor, neutral-start and bucket-positioner/boom-kickout circuits, sensor and test-port locations, replacement-control wiring and cab-tilt service.
The operating instructions support trained operators and routine maintenance personnel; the overhaul sections suit experienced mechanics with suitable lifting equipment, measuring instruments and the specified service tools.
Operating Controls and Scheduled Maintenance
The controls section identifies the hourmeter, instrument panel, warning lamps, steering-clutch and brake pedals, decelerators, transmission selector, and bucket and ripper levers. Operator-seat adjustment, starting and shutdown, loading and excavating techniques, ripping, truck loading, towing and carrier transport are also covered.
Maintenance is organized by service interval and condition-based tasks. It addresses linkage lubrication, engine and converter/transmission oil and filters, steering clutches and brakes, bevel gear, final drives, hydraulic filters, coolant conditioner, valve clearance, fuel filters, tracks and batteries.
Cab heating, ventilation, optional air conditioning, defrosting, washer service, fuses and electrical starting support receive separate attention.
Engine Inspection and Rebuild References
The engine material combines troubleshooting charts with inspection data for the block, cylinder sleeves, pistons and rings, connecting rods, main bearings, crankshaft, valves and guides, camshaft, rocker arms and timing gears. Fuel-system, turbocharger and drive-belt specifications accompany the component repair sections.
Engine Diagnostic Kit P/N 75300772 supports checks of engine speed, intake and exhaust pressures, air-cleaner restriction and heat-exchanger temperatures. The chart format connects symptoms with possible causes and tests, helping mechanics plan fault isolation before major disassembly.
Cylinder-sleeve protrusion is treated as critical to proper sealing, with shim-selection and measurement requirements addressed in the assembly instructions.
Drivetrain, Steering and Brake Details
Converter and transmission section views, selector schematics and the neutral-circuit schematic explain the hydraulic paths alongside overhaul procedures. Tool references include Transmission & Converter Tester P/N 75294308.
The high-range clutch instructions flag spline alignment as a damage-sensitive part of assembly; forcing an incorrectly aligned shaft can damage the splines. Final-drive floating-ring seals are treated as matched pairs, with restrictions against mixing new and worn rings or rings from different sets.
Steering coverage distinguishes first- and second-type steering/brake valves. Brake-piston housings, control linkage, clutch modulation and the steering/brake hydraulic schematic provide additional detail for identifying the applicable components.
Hydraulic Testing and Serial-Specific Controls
The implement section explains how pump unloading, pilot pressure, relief valves and cylinder leakage affect operation. Hydraulic Flow Meter P/N 75300836, the implement hydraulic schematic and the bucket/boom pilot-valve cross section support the testing material.
The main-relief adjustment procedure is identified for S/N 070420 and up. A separate replacement-manipulator section applies to S/N 070101 - 070671 and explains the wiring and changed boom-raise/float-detent operation when replacement control P/N 79087120 is fitted.
Undercarriage, Electrical and Cab Work
Undercarriage chapters contain component repair procedures, fits, wear limits and torque specifications. The tooling section identifies Track Release Spring Compressor Cage P/N 75292887 and the measuring and alignment equipment used for track-frame work.
Electrical pages pair system diagrams with wire codes and Electronic Data Monitor sensor locations, test-port threads and adapter references. Standard metric torque charts and component-specific tables support assembly work throughout the service volume; fluid-capacity and lubricant charts are provided in the operation volume.

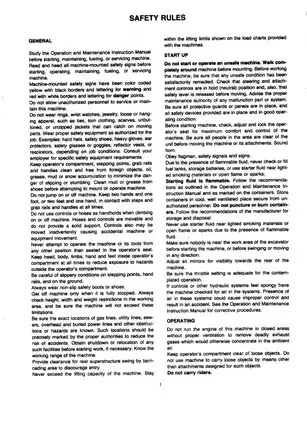

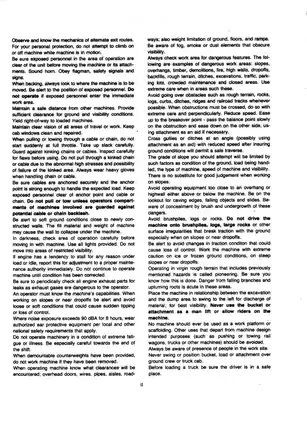

Before servicing, lower or securely block the attachment, relieve trapped hydraulic pressure, support the tilted cab with the specified bar, isolate electrical power, and use the prescribed lifting and spring-compression equipment.
Selected Valve-Clearance and Track-Tension Data
For the 8365.25.540 engine, the service specifications list cold valve clearances of 0.30 mm intake and 0.50 mm exhaust.
The service volume specifies track sag of 30–40 mm (1.2–1.6 in) between the idler and carrier roller, giving the measurement location used for track-tension checks.
