Honda NRX1800 Valkyrie Rune Service Manual 2003

Honda’s NRX1800 Valkyrie Rune service manual covers maintenance, diagnosis, and repair of the liquid-cooled engine, PGM-FI, hydraulically assisted wet multi-plate clutch, transmission, and shaft drive. The manual is dated May 2003; its embedded PDF title reads “Service Manual - Rune 2004.”

PDF Search, Bookmarks, and Wiring Detail

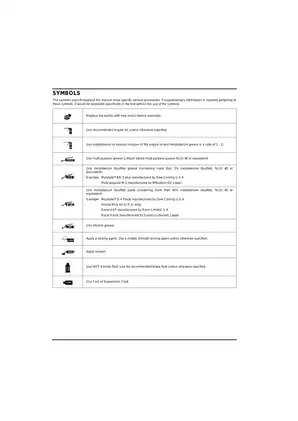

Text search and diagram access: Main text supports searching, but small labels in the overall wiring diagram are outside the text layer. Embedded bookmarks cover chapters and procedures; the Home Page entry references a separate interface PDF, and Symbols opens the contents page. Small connector labels and wire-color codes on the overall wiring sheet are readable when rotated and enlarged.

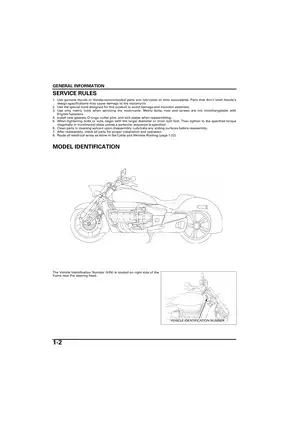

Supplied as one English-language, printable 552-page PDF, including three introductory pages and 13 Memo pages.

Engine, PGM-FI, and Rune Chassis Service

This selection of service content highlights major workshop procedures. Other topics include the maintenance schedule, oil and filter changes, and body-panel and exhaust-system removal.

• Engine and cylinder heads: Engine removal and installation, compression testing, camshaft and cam-chain service, cylinder-head disassembly, valve-guide replacement, and valve-seat refacing.

• Clutch and transmission: Hydraulic bleeding, master- and slave-cylinder repair, clutch-pack inspection, gearshift linkage, primary gears, output shaft, rear crankcase-cover bearings, and transmission disassembly and assembly.

• PGM-FI diagnosis: MIL self-diagnosis and memory procedures, sensor fault charts, fuel-pressure and pump-flow testing, injector and throttle-body service, vacuum-balance checks, and IAC and variable-air-intake testing.

• Cooling and lubrication: Cooling-system pressure tests, radiator and fan service, water-pump and thermostat inspection, coolant replacement and bleeding, oil-pressure checks, and oil-pump repair.

• Chassis and steering: Bottom-link front suspension, linkage and pivot-bearing replacement, fork-tube alignment, steering-stem and head-bearing service, rear wheel and swingarm work, and rear suspension linkage inspection.

• Combined brakes: Lever and pedal hydraulic circuits, caliper and master-cylinder repair, proportional control valve (PCV), pad and disc inspection, and circuit-specific filling and bleeding sequences.

• Electrical and security: Battery and alternator testing, ignition peak-voltage diagnosis, starter circuits, lights, meters, switches, HISS key registration, diagnostic codes, and remote steering-lock troubleshooting.

Honda states that this manual is intended for qualified professional technicians with basic Honda motorcycle maintenance knowledge, proper tools, and suitable shop equipment.

Engine Access and Internal Repair

Step-by-step procedures cover crankcase separation, piston and connecting-rod service, and select-fit crankpin and main-journal bearings. Exploded views, tightening sequences, lubrication and sealant locations, inspection limits, and bearing-selection tables support internal engine work.

Engine-in-frame access: Cylinder-head, throttle-body, water-pump, alternator, starter, and most clutch work can be performed with the engine installed. Clutch outer removal requires engine removal, as do oil-pump, primary-gear/output-shaft, transmission, piston, connecting-rod, and crankshaft service. Transmission and internal crankshaft work also require crankcase separation.

Engine-removal instructions specify adjustable support for the engine and a hoist or equivalent for the motorcycle. Honda warns against supporting the engine by the oil filter.

Final-drive setup: Coverage extends from removal and case separation to bearing replacement, ring-and-pinion inspection, shim selection, assembly preload, and installation. Contact-pattern and backlash checks are specified after replacement of gears, bearings, or the gear case, providing setup information for shaft-drive repair.

Fuel Injection and Emissions

Separate service data distinguishes 49-state/Canada and California configurations. Emissions coverage includes secondary-air-system testing and California-only EVAP canister and purge-valve procedures.

The throttle body is factory preset. Vacuum-balance diagnosis includes checks for other causes of imbalance and specifies assembly replacement if those checks pass. Honda warns that carburetor cleaner can damage the molybdenum-coated throttle bores and disturb throttle and idle-valve synchronization.

Suspension and Combined-Brake Details

Front-suspension documentation includes linkage diagrams and steering-bearing preload checks. Incorrect fork-tube axle alignment after disassembly can interfere with wheel installation or cause faulty suspension operation.

Shock-absorber scope: Damaged or leaking front and rear shock absorbers are replaced as assemblies; internal damper overhaul is outside the documented repair scope.

Brake routing diagrams distinguish the lever-operated outer pistons in the three-piston front calipers from the pedal circuit serving the front center pistons and rear caliper.

HISS and Steering-Lock Diagnosis

HISS links the coded transponder key and ECM with the cable- and solenoid-operated steering lock. Receiver and wiring tests, lock-switch and solenoid fault isolation, and inner-lock-unit replacement extend diagnosis from key recognition to the lock mechanism.

If all registered keys are lost, the manual specifies ECM and transponder-key replacement. A steering-lock pin that fails to retract also inhibits starter operation, connecting the security checks with no-start diagnosis.

System Diagrams and Special Tools

Visual references include the lubrication-system diagram, cooling-system flow pattern, PGM-FI location and system diagrams, combined-brake routing view, HISS/steering-lock diagram, and overall wiring diagram with wire-color keys. Harness routing layouts, connector-terminal views, diagnostic charts, and exploded assemblies support repair planning.

Tool references identify the SCS service connector 070PZ-ZY30100, PGM-FI/ignition test harness 07WMZ-MBGA000, immobilizer test harness 07AMZ-MECA100, and lock-nut wrench 07908-ME90000. Reference tables provide component-specific torque values, capacities, clearances, wear limits, gear and bearing setup data, and electrical test specifications.

Selected Valve Clearances and Injector Test Values

Valvetrain settings: Intake clearance is 0.15 ± 0.03 mm and exhaust clearance is 0.22 ± 0.03 mm, measured with the engine cold, below 35°C/95°F. The maintenance section includes shim-selection calculations for adjustment.

Injector electrical checks: The specified injector resistance is 10.5–14.5 Ω at 20°C/68°F. The PGM-FI diagnostic charts combine resistance and circuit-continuity checks to distinguish injector faults from wiring problems.
