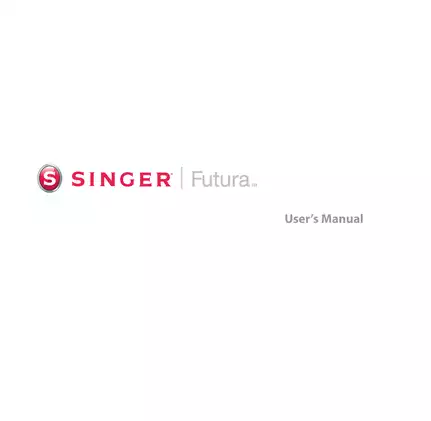

Singer Futura CE-150 to CE-350 Sewing Machine User's Manual

• 127-page Singer Futura PDF set: Futura - English 3-01 (90 pages), Futura - AutoPunch Option - English 3-01 (18 pages), and Futura - Editing Option - English 3-01 (19 pages).
• PC and installation coverage: legacy Windows requirements, CD-ROM setup, USB-driver installation, machine setup, and basic file and folder tasks.
• Machine communication: Machine Navigator, single-block or full-design transfer, real-time sew-out display, Trace Design, hoop checks, status messages, and live updates.
• Design workflow: open/save format tables, Design Browser, the 120-design library, redraw and color-block sequencing, resizing, repeating, lettering, grid, and ruler tools.
• AutoPunch module: cropping, sizing, color reduction, column/fill classification, block ordering, fabric presets, density, angle, underlay, stretch, and connector choices.
• Editing module: outline, block, and stitch editing; entry/exit control; stitch-type catalogs; Stitches to Blocks; Split Block; and Optimize.
• Scope limit: software and operator guidance only, with no internal repair procedures, wiring diagrams, mechanical adjustments, or scheduled maintenance.

Software and Machine Interface Guide

This Singer-branded publication set explains the PC-based front end used to prepare, manage, and send embroidery designs to a Futura machine. The main manual starts with installation and basic Windows tasks, then follows the working screen from opening and saving designs through machine transmission. Separate AutoPunch and Editing manuals cover automatic digitizing and advanced modification of embroidery data.

The documented computer environment is specific to older systems: Pentium III or faster, Windows 2000/ME/XP/Vista, at least 128 MB RAM, 500 MB free disk space, CD-ROM drive, 1024 x 768 display with 65,000 colors, Microsoft-compatible mouse, and USB 1.1/2.0. Installation coverage includes the setup wizard, uninstall path, and Windows USB-driver process. The software requires the machine to be configured for embroidery, powered on, and connected to the PC; the stated Windows coverage ends with Vista.

Machine Navigator can send one color block or a complete design, move through color blocks, transmit in monochrome, limit sewing speed, show real-time progress, and offer recovery of a partially sewn design after interruption. Complete-design transfer supports up to 24 color blocks before the software partitions the job. Trace Design performs a machine-side perimeter check, while hoop views and warnings identify oversize designs and small/large-hoop mismatches.

The error reference is an operator-level table rather than a full repair or diagnostic catalog. It covers thread breakage or threading faults, presser-foot and buttonhole-lever positions, safety-device lockup, bobbin-winder status, lowered-needle conditions, USB cable or power problems, hoop selection, and embroidery-unit setup. Software Live Update and Machine Live Update are also documented.

File-management chapters distinguish formats that can be opened from those that can be saved. Open support includes FHE, PSW, CHE, XXX, PEC/PES, HUS, SEW/JEF, EXP/DST, PCS, VIP, and SHV; the save table covers FHE, XXX, PEC/PES, HUS, SEW/JEF, EXP/DST, PCS, and VIP. Design Browser displays dimensions, stitch count, color changes, and individual blocks. Other production tools include the 120-design library, repeat and mirror layouts, color-block reordering, resizing and rotation, centering, thread palettes, lettering frames, realistic view, stitch points, grid, and ruler. Labeled interface illustrations include the Machine Navigator, Design Browser Dialogue Box, Redraw Design options, Hoop view, Change Size dialogue box, and System Parameters dialogue box.

AutoPunch and Advanced Editing Coverage

The AutoPunch Wizard takes clean artwork through image selection, cropping, dimensions, automatic color reduction, and width-based classification as columns or fills. Later stages cover block removal and resequencing, background stitching, fabric presets, column/fill reassignment, density, stitch angle, underlay, stretch compensation, and running- or jump-stitch connections. Scanner import and the bitmap Draw Package add text, pencil/polyline, paint, fill, shape, brightness/contrast, cleaning/softening, resizing, mirroring, and color-reduction tools.

The Editing guide documents outline-point changes, stitch-angle and entry/exit repositioning, density, central/edgewalk/fill underlay, running or satin outlines, short-stitch handling, stretch, preset fabrics, and multi-block parameter changes. Freeform and Column catalogs illustrate Satin, Step variants, Random, Pattern, Elastic, and Motif treatments. Individual stitches can be moved, inserted, or deleted; blocks can be split; stitch-only files can be converted with Stitches to Blocks; and Optimize can remove selected short stitches and jumps.

Two workflow cautions matter in practice. Stitch Edit changes can be lost if Block Editing is performed afterward, so individual stitch work belongs at the end of the editing process. Stitches to Blocks reconstructs likely outlines rather than restoring the original digitizing exactly, and converted designs should be saved in FHE format to retain outline-editing capability.

For lockup, hoop, or embroidery-unit conditions, the guide directs the operator to switch power off before clearing the fault. Machine Live Update is the exception: the machine must remain powered and connected throughout the update. This is a software-operation and design reference, not a mechanical service or component repair manual.
