Singer 4421/4423 Sewing Machine Service Manual, 2010 (P/N 104 73 14-26)
32 Pages • 1 Printable PDF (English) • Download
Singer Models Covered & Key Technical Specifications
Models: 4421, 4423
Back-page model designation: 4423/4411 (Q50/25DST)
Model Year: 2010
-
Needle-to-hook clearance: 0.05–0.10 mm
-
Needle bar height: 25.35–25.45 mm
-
Zigzag stitch width dial setting for maximum-width adjustment: 6
-
Needle-eye upper edge to shuttle-hook-holder path (needle at lowest point): 4.75 ± 0.1 mm
-
Upper thread tension range (tension dial set to 4): 70–80 g
-
Shuttle hook tension range: 10–14 g
-
Motor belt tension: 100 g
Singer Manual Features & Selected Content Preview
This Singer service manual, cover-labeled 4421 / 4423, focuses on mechanical adjustments and component calibration. The October 2010 edition carries P/N 104 73 14-26.
Searchable Text and PDF Page Breakdown

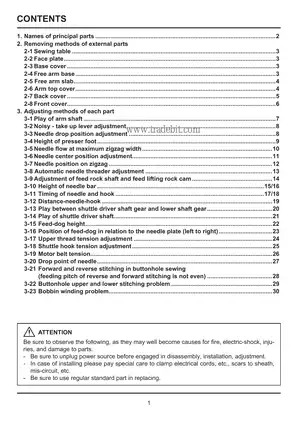

Text search and navigation: Searchable PDF text is available throughout the service sections. There are no embedded PDF bookmarks; a printed contents page lists the sections. Website watermarks overlap some body text.
This is a 32-page PDF in English, supplied as one printable file. The total includes 30 numbered interior pages, including the contents page, plus the front cover and unnumbered back page.
Mechanical Setup and Stitch Adjustment
The following topics are selected service highlights, rather than a complete contents list.
-

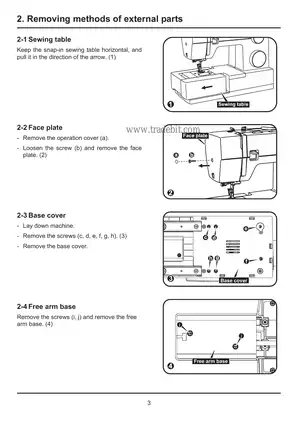

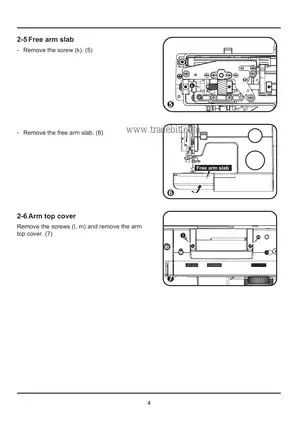

Housing access: Step-by-step removal instructions for the sewing table, face plate, base cover, free arm base, free arm slab, arm top cover, and front and back covers.
-
Needle and hook setup: Needle drop and center position, zigzag alignment, needle-bar height, needle-to-hook clearance, and needle/hook timing procedures.
-
Shaft and feed adjustments: Arm-shaft and shuttle-driver-shaft play, feed rock shaft and feed lifting rock cam adjustment, plus feed-dog height and lateral positioning.
-
Presser foot and threader: Presser-foot height measurement and automatic needle-threader alignment, with illustrations of the gauge and threader-hook positions.
-
Thread tension and belt drive: Upper-thread and shuttle-hook tension measurement, regulator adjustment, and motor-belt tension checks using the specified gauges.
-
Stitch and winding corrections: Needle-drop repeatability, uneven forward/reverse buttonhole feeding, buttonhole end stitching, and bobbin winding shape and fill adjustment.
The procedures are suited to experienced sewing-machine repair technicians who are comfortable using setting gauges and measuring thread and belt tension.
Needle Timing and Mechanical Adjustment
For timing-related repair, separate sections address needle-bar height, needle-to-hook clearance, and needle/hook timing. Their different reference points help technicians avoid confusing a needle-height dimension with a hook-timing measurement.
The Timing of needle and hook illustrations show the timing-gauge setup and hook position relative to the needle eye. Play of shuttle driver shaft illustrates separate clearance checks for the two handwheel directions, distinct from the gear-play adjustment.
Arm-shaft collar clearance and take-up-lever adjustment have their own movement checks. The manual flags restricted movement from overly tight settings and noise from an excessively loose take-up-lever adjustment.
Feed, Buttonhole and Bobbin Adjustments
The Drop point of needle illustrations compare stitch patterns to support the check for consistent needle placement.

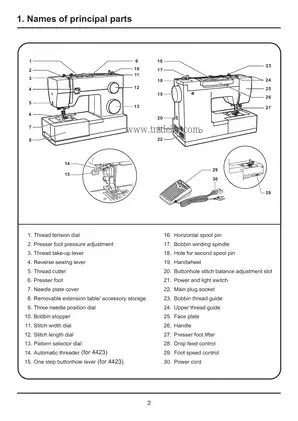

Model-specific equipment: The buttonhole chapters and back page identify 4411 / 4423, while the front cover identifies 4421 / 4423. The principal-parts illustration marks the automatic needle threader and one-step buttonhole lever as 4423 features. Match the buttonhole procedures to the model identified in each section.
The Forward and reverse stitching in buttonhole sewing illustrations compare correct and uneven side stitching. A separate adjustment section addresses unwanted fabric movement during the upper and lower buttonhole stitching.
Bobbin winding repair coverage distinguishes an uneven winding profile from an incorrect fill level. Its component views locate the thread-guide adjustments and bobbin-winder bracket mechanism.
Service Gauges and Repair Scope
The adjustment procedures call for presser-foot, needle-height, timing, shuttle-play, and feed-dog gauges, along with thread-tension and belt-tension gauges.
The repair scope centers on external-cover removal and mechanical adjustment. Electrical wiring diagrams, circuit testing, and a complete internal overhaul procedure are outside this manual's scope.
Cover installation: Careless cord routing during reassembly can damage the insulation; the manual warns about cord clamping, sheath damage, and incorrect connections. Always ensure the machine is disconnected from power before inspecting internal components.
A Preview of Presser-Foot and Feed-Dog Settings
The presser-foot height section specifies a 6.0–6.2 mm gauge referenced to the needle plate, illustrating the measured setup used for this adjustment.
The feed-dog height section gives a 0.9–1.05 mm checking range with the stitch-length dial at 4 and the needle at its highest position. Its illustrations identify the height-adjustment components separately from the lateral-centering mechanism.
