1999–2005 Hanix H15B-Plus2 & H15B-2 Excavator Service & Parts Manual Set (P/N 2SM0409)

The service procedures and illustrated parts catalog let technicians cross-reference repair work with component numbers, assembly contents, and serial-specific replacements.

The engine chapter covers specifications and performance data, not internal engine overhaul. The parts catalog contains sections explicitly labeled H15B-2; parts selection follows the model and serial applicability shown in each section.

Hydraulic Repair, Fault Tracing, and Parts Identification

• Hydraulic pump and filters: Main pump removal, installation, and performance testing, plus line, suction, and pilot filter maintenance.

• Control valves and joystick: Valve-block disassembly, O-ring replacement, relief-pressure adjustment, and joystick pilot-valve structure and operating characteristics.

• Cylinders and swivel joint: Hydraulic cylinder disassembly, inspection, seal replacement, and assembly, with swivel-joint disassembly and reassembly procedures.

• Travel and slew systems: Motor operating principles, performance checks, and troubleshooting charts for weak travel, tracking deviation, slow slewing, and cylinder drift.

• Undercarriage: Steel and rubber crawler removal, installation, and tension adjustment; spring-case service; sprocket replacement; and idler and track-roller wear limits.

• Electrical diagnosis: Electric circuit diagrams, wire-color references, and starter and alternator failure/cause/remedy tables.

This material is suited to repair-shop technicians familiar with hydraulic testing equipment, component disassembly, and press work.

Hydraulic Testing and Component Repair

The main pump section describes flow and pressure testing with a hydraulic tester, pressure gauges, and a diesel tachometer. Troubleshooting charts distinguish pump, relief-valve, control-valve, joystick, motor, and swivel-joint faults, helping narrow down the source of weak operation before selecting components for repair.

Control valve structural drawings identify the individual function blocks and the P1, P2, and P3 relief circuits. The valve procedures cover block and spool seals, load-check valves, and relief-valve assemblies.

Cylinder coverage includes piston-rod and internal-component disassembly, inspection criteria, packing replacement, and assembly precautions. The manual warns that unsuitable cleaning oil shortens packing life and that careless packing removal can damage the cover or piston grooves.

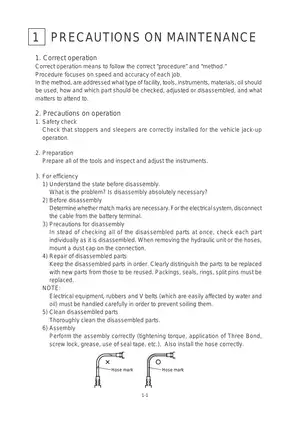

Always ensure hydraulic pressure is fully relieved and standard shop safety protocols are followed before initiating any mechanical work.

Engine Reference and Electrical Fault Tracing

The Mitsubishi L3E engine section supplies specifications, a performance curve, firing-order information, and separate idle-speed references. Scheduled maintenance covers engine oil and filters, valve-clearance checks, the fuel system, radiator, and air cleaner.

Starter and alternator tables connect symptoms with possible causes and remedies. Electrical diagrams show the starting, charging, glow, lighting, instrumentation, and safety-lock circuits, including cabin equipment.

Undercarriage Service and Serial-Specific Parts

Simple planetary reduction gear schematics explain the traveling drive. Slew checks address drift, stopping overrun, and rotation time; attachment checks address natural cylinder fall and operating speed.

Track frame assembly views accompany crawler service and dimensional inspection data. Spring-case work calls for a press and special-purpose tool, while the adjust-cylinder instructions address trapped air and seal protection.

The parts catalog pairs exploded views with OEM part numbers, quantities, assembly inclusions, and interchangeability codes. Its separate control-system and track-frame groups, along with changes to extension cylinders, swivel joints, motor seals, and wiring harnesses, help distinguish replacement parts before ordering.

Examples of Slew-Pressure and Track-Tension Data

The slew-motor specification gives an overload relief setting of 9.32 MPa (1,351 psi) at 12 L/min. This is separate from the machine’s main relief specification.

The crawler installation section illustrates different tension-check gaps for the two track types: 25–35 mm for steel crawlers and 10–15 mm for rubber crawlers, with the track lifted as shown in the manual.

Searchable Text, Bookmarks, and Drawing Limitations

Search and drawing detail: Text search works across the service chapters and parts catalog, but the four appended drawing sheets have no searchable text. Bookmarks open the service chapters and the start of the catalog. Small diagram labels require zooming; the appended sheets have faint lines and lettering, and some labels in the main electrical diagram display corrupted characters.

The set is supplied as one printable, 209-page PDF. The total includes both publications’ covers, introductory and contents pages, two inserted unload-valve piping pages, and four appended drawing sheets. These sheets include a repeated H15B-Plus2 hydraulic drawing and a drawing labeled H15C; the latter does not extend the set’s repair coverage to that model.
