1988–1989 Honda VTR250 Service Manual (P/N C4077-90960)

• Identifies 1988–1989 Honda VTR/VTR250 coverage for the liquid-cooled DOHC V-twin, with separate '88 and AFTER '88 notes and California-only evaporative-emission configurations.
• Details dual-carburetor removal, disassembly, inspection, reassembly, synchronization, pilot-screw service, automatic fuel-valve testing, high-altitude adjustment, and California purge-control diagnosis.
• Documents engine removal and installation, clutch and starter-clutch repair, alternator service, camshaft and cylinder-head work, valve-guide replacement, valve-seat refacing, crankcase separation, transmission overhaul, and bearing selection.
• Covers front-wheel bearing and fork service, steering-stem work, rear drum-brake repair, shock and swingarm service, plus front-brake bleeding and master-cylinder, caliper, and disc repair.
• Traces charging, ignition, starter, instrument, switch, cooling-fan, and temperature-gauge faults with component tests, circuit checks, and a full motorcycle wiring diagram.
• Supplies maintenance schedules, exploded assembly views, harness and hose routing drawings, troubleshooting charts, special-tool references, torque tables, capacities, pressure tests, wear limits, and electrical specifications.

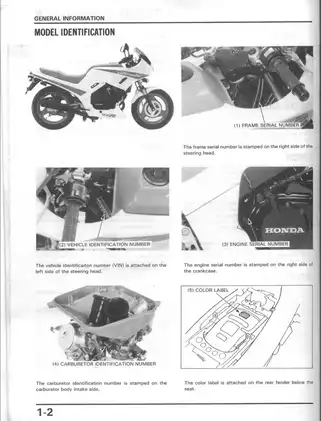

Model-Year and Configuration Coverage

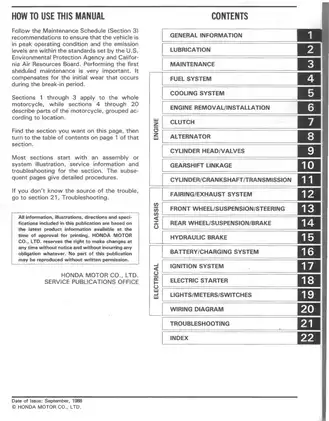

The 247-page PDF contains Honda service manual P/N 61KV001 for the 1988–1989 VTR/VTR250 and carries a September 1988 issue date. The manual does not treat both years as mechanically identical. Honda marks changes to the gear sets and final drive, spark-plug applications, cylinder-head and camshaft-holder oil-passage hardware, steering-head bearing parts and tools, drive-chain specifications, front-brake hose hardware, and the AFTER '88 ignition-switch Torx fasteners. California motorcycles receive separate charcoal-canister, purge-control-valve, numbered vacuum-hose, routing-label, and inspection information.

Technical Content and Maintenance Details

The maintenance chapter covers the scheduled checks that matter on this compact V-twin: fuel lines and strainer, throttle and choke operation, air cleaner, crankcase breather, spark plugs, valve clearance, carburetor synchronization and idle, cooling-system condition, cylinder compression, drive chain, battery, brake-fluid checks and brake wear, clutch, suspension, wheels and tires, and steering-head bearings. Fuel-system repair goes farther than routine adjustment. It covers the fuel tank, vacuum-operated automatic fuel valve, air-cleaner case, constant-velocity carburetors, float-level inspection, the U.S. idle-drop procedure, high-altitude correction, and hand-pump testing of the California purge control valve.

Engine and drivetrain chapters move from oil-pressure diagnosis and oil-pump repair through engine removal, clutch and starter-clutch disassembly, flywheel and stator removal, camshaft timing, cylinder-head disassembly, valve-guide replacement, valve-seat refacing, and reassembly. The manual also identifies the clutch, alternator, cooling system, starter motor, cylinder heads, carburetors, and oil pump as serviceable with the engine still in the frame. Lower-end coverage includes crankcase separation, transmission inspection, mainshaft-bearing replacement, piston and connecting-rod work, crankshaft inspection, Plastigage checks, color-coded connecting-rod and main-bearing selection, transmission assembly, and crankcase mating. Honda supplies separate transmission-shaft illustrations and part notes for '88 and AFTER '88 gear sets.

Chassis, Brake, and Electrical Coverage

Chassis sections support actual repair work rather than simple adjustment: front-wheel bearing replacement, fork disassembly with bushing and seal service, steering-stem race replacement and preload checks, rear-wheel and drum-brake service, shock-absorber spring removal, shock-linkage bushing work, swingarm bearing service, and front-brake fluid replacement and air bleeding. The hydraulic chapter also covers master-cylinder and caliper disassembly, seal inspection, brake-disc checks, and installation.

The electrical chapters lay out battery charging and load testing, leakage-current and regulated-voltage checks, stator and regulator/rectifier diagnosis, ignition-coil and pulse-generator tests, ignition-timing inspection, starter-motor repair, relay and clutch-diode checks, and continuity testing for the ignition and handlebar switches. Oil-pressure warning, tachometer, neutral, brake-light, clutch, temperature-gauge, and thermostatic fan-switch circuits are handled separately.

Specifications, Diagrams, and Repair Reference

Useful drawings include the engine lubrication-flow schematic, cable and main-harness routing views, California vacuum-hose routing diagram, camshaft alignment-mark illustrations, mainshaft/countershaft exploded views, and the full wiring diagram with switch-continuity tables. Selected Honda tools are identified by number, including the clutch center holder 07HGB-001010A, camshaft holder 07979-MK30000, fork seal driver 07947-KA50100 with attachment 07947-KL40100, rotor puller 07733-0020001, and Honda battery tester 07GMJ-0010000.

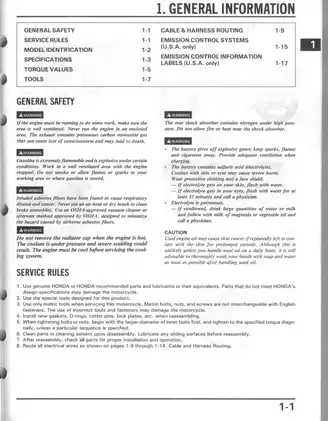

Two repair cautions show the level of detail. The crankcase halves must not be drawn together with the case bolts when the shift components are not engaged, because the assembly can be damaged. Color-coded bearing inserts must remain in their matched positions or incorrect oil clearance can damage the engine.

Brake, steering, suspension, fuel, and internal-engine repair should be performed with the motorcycle securely supported and the manual's cautions, special tools, and final checks followed, since errors in these systems can make the motorcycle unsafe.

Honda assumes standard workshop skills and does not teach general shop practice in full. The PDF includes the full wiring diagram and the four-page Section 21 troubleshooting charts, then ends; the Section 22 Index listed in the contents is not included.
