Komatsu WA470-5 / WA480-5 2005 Wheel Loader Shop Manual (P/N SEBM024412)

Komatsu shop manual P/N SEBM024412, printed June 2005, covers WA470-5 serial 70001 and up and WA480-5 serial 80001 and up.

PDF Search, Bookmarks and Diagram Detail

Text search and drawing detail: Most manual text is searchable, and embedded bookmarks cover the main sections and individual procedures. Some monitor pages and graphic labels are outside the text search. Small wiring and connector labels require zooming.

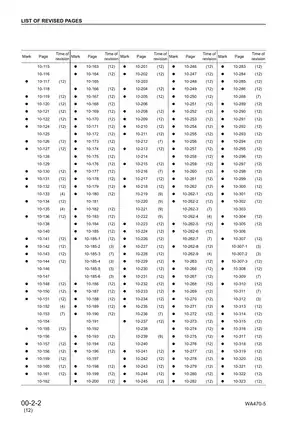

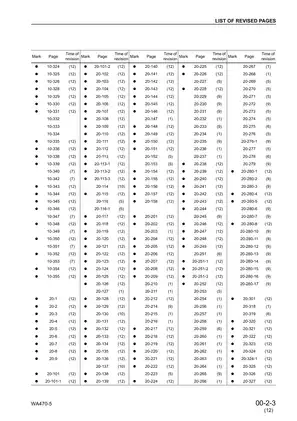

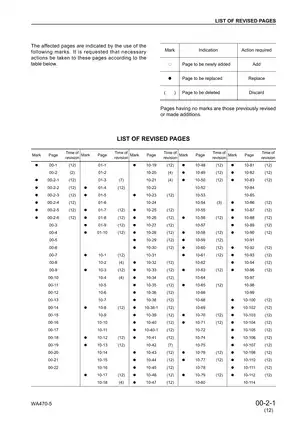

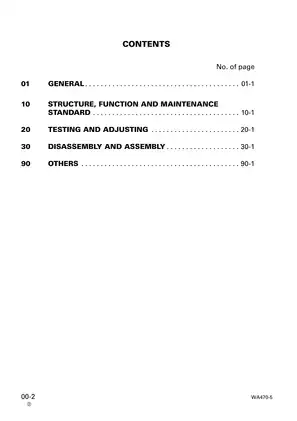

Supplied as one printable 1,204-page PDF, including the original cover page and six revision-list pages.

Power Train Overhaul and Loader System Diagnosis

The following coverage highlights are a selection from the manual. Other topics include PM-Clinic inspection sheets and accelerator-pedal sensor adjustment.

• Power train repair: Torque-converter/transmission removal, standard and lock-up converter overhaul, transmission and clutch-pack overhaul, parking-brake service, ECMV testing, and hydraulic-circuit flushing.

• Axles and articulation: Front/rear axle work, axle-housing and differential overhaul, bearing and gear inspection, and center-hinge-pin replacement.

• Steering and brakes: Steering-valve and optional joystick-steering service, brake inspection and bleeding, accumulator testing, and parking-brake emergency release.

• Hydraulics and work equipment: Pump-group removal, control-valve service, cylinder overhaul, ECSS/boom-damper work, pressure testing, bucket-positioner and boom-kick-out adjustment.

• Electronic diagnosis: ENG, TM, WRK and MON fault charts; H/E/S troubleshooting; fault histories, real-time monitoring, and transmission, EPC, joystick and load-meter calibration.

• Engine and cooling: Fuel-system diagnosis, selected fuel and cylinder-head service, engine removal, radiator/aftercooler work and hydraulic-fan testing; full engine overhaul requires a separate manual.

• Diagrams and test data: Wiring diagrams, hydraulic schematics, connector pin tables, T-adapter references, and system-specific torque, pressure, capacity, wear-limit and electrical specifications.

This manual suits experienced heavy-equipment technicians equipped for hydraulic testing, electrical diagnosis and component overhaul.

Build Differences and Serial Breaks

Power train builds: Standard and lock-up torque converters have separate repair sections and oil circuits. Transmission-control-valve and parking-brake-solenoid layouts change at transmission No. 110529 versus 110530 and up.

Monitor settings: Machine-monitor SW5-4 settings for joystick and lock-up gear permission distinguish WA470-5 serials 70001–70121 from 70122 and up, and WA480-5 serials 80001–80029 from 80030 and up.

Connector layouts: Drawings distinguish WA470-5 70001–70113 from 70114 and up, and WA480-5 80001–80028 from 80029 and up. Later electrical sheets additionally flag WA470-5 70115 and up and WA480-5 80029 and up.

These breaks matter before choosing a connector, monitor setting, or diagnostic path.

Common-Rail Engine Service and Its Limits

The SAA6D125E-3 sections cover valve-clearance adjustment, compression, blow-by, boost and oil-pressure checks, plus fuel-pressure, pressure-limiter leakage, injector-return tests and fuel-circuit bleeding. Reduced-cylinder operation supports cylinder fault isolation.

Step-by-step removal and installation instructions cover the fuel-supply pump, injectors, nozzle tips, cylinder-head assembly and complete engine. Full internal engine overhaul is outside this chassis volume; Komatsu directs engine-detail work to the separate 125-3 Series Engine Shop Manual.

The nozzle-tip procedure is restricted to applications outside EPA-regulated countries; for EPA-regulated countries, the manual specifies replacement of the complete nozzle assembly.

Axle, Hydraulic and Chassis Repair

Differential and hinge work: Conventional and limited-slip differential procedures include bearing-carrier shimming, bevel-gear backlash and tooth-contact checks. Center-hinge procedures cover frame separation and pin, bearing and bushing replacement.

Hydraulic assemblies: Removal and installation instructions cover steering/switch and cooling-fan pumps, plus the torque-converter-charge, work-equipment and PPC pump group. Cylinder overhaul distinguishes steering, lift-arm and model-specific bucket-cylinder tooling.

PPC and electric/EPC work-equipment controls are treated separately. Optional ECSS, joystick and emergency steering, load-meter and work-equipment-controller configurations have their own operating, testing or adjustment information.

Cab and equipment: Repair coverage extends to the hydraulic tank, work-equipment valve, boom/bucket linkage, cab and floor frame, bonded cab glass, air-conditioning components and operator’s seat.

Monitor Diagnosis and Calibration

The machine monitor functions as a service tool, with stored electrical/mechanical faults, simultaneous two-item monitoring, reduced-cylinder operation and option setup. Adjustment sections address transmission initial learning, lift-arm angle, EPC valves and lever detents, joystick steering and load-meter testing/calibration after relevant component replacement.

Controller fault charts are backed by H-mode hydraulic/mechanical matrices, E-mode electrical checks and S-mode engine symptom charts. Connector pin tables and T-adapter selection data include sets 799-601-7400 and 799-601-7500 for sensor and harness diagnosis.

Circuit Drawings, Tools and Inspection Standards

Circuit references: The Work Equipment Hydraulic Circuit Diagram has a separate electric-lever version. Power Train Oil Circuit Diagrams distinguish lock-up and non-lock-up builds; the Brake Oil Circuit Diagram and multi-sheet Electrical Circuit Diagram cover the remaining circuits.

Component section views and exploded repair illustrations support transmission, clutch-pack, differential, axle-housing, center-hinge, valve, brake and hydraulic-cylinder work.

Power train tools: References include unit repair stand 790-501-5000 for converter and differential work, clutch-piston seal holders 793-607-1110 and 793-607-1120, and oil-leak tester 799-301-1500.

Axle and cylinder tools: Center-hinge push-puller 790-101-2300 and puller 790-101-2102, hydraulic-cylinder repair stand 790-502-1003 and brake tester 793-605-1001 are identified. Tool sketches support applicable locally made fixtures.

Reference tables distinguish new-machine standards from service limits. They include component-specific torques, metric-fastener/flared-fitting/split-flange tightening tables, approved fluids, capacities, pressure-test specifications, clutch/brake wear limits, bearing/gear clearances, shim-selection data and electrical/calibration values, with model-specific differences kept separate.

Assembly Cautions and Worksite Safety

Axle-housing assembly cautions address oil-seal tilting and leakage from premature D9 support removal; transmission cautions cover lower clutch-pack bearing damage and correct bearing/gear and coupling/housing alignment. Center-hinge instructions preserve shim stacks and bearing, spacer and dust-seal orientation to avoid hinge play and shortened bearing/seal life.

Testing and repair precautions cover level ground, frame locking and safety pins, wheel blocking, lowered or mechanically supported work equipment, hydraulic/ECSS and common-rail pressure release, and battery isolation where required.

Selected Transmission Setup Values

The transmission speed-sensor adjustment section specifies approximately 1.5 mm between the sensor tip and a gear-tooth tip, showing the mechanical setting used alongside transmission diagnosis.

Initial-learning instructions specify transmission oil at 55–70°C during learning. The manual links learning outside this range to shift shock and delayed engagement, making oil temperature part of the calibration conditions.
