Honda CR80R / CR80RB Expert / CR85R / CR85RB Expert Service Manual, 1995–2007

Honda service manual covering the 1995 CR80R; 1996–2002 CR80R and CR80RB Expert; 2003–2004 CR85R and CR85RB Expert; and 2005–2007 CR85R/CR85RB Expert models, listed as “After ’04” in the manual. Specifications and procedures distinguish the standard-wheel R and larger-wheel RB configurations.

Searchable Text, Chapter Bookmarks, and Diagram Detail

Search and circuit labels: An embedded OCR text layer supports searches throughout the service chapters, although recognition errors can affect individual terms. The cover and opening safety notice have no searchable text. PDF bookmarks link to all 15 chapters, the contents, and the index. Small wiring labels are readable with magnification.

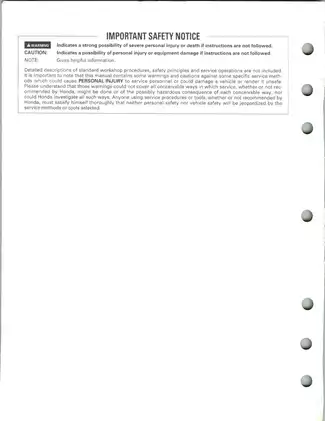

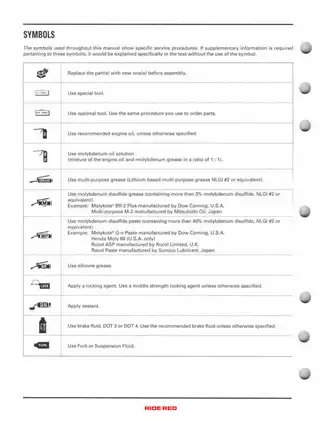

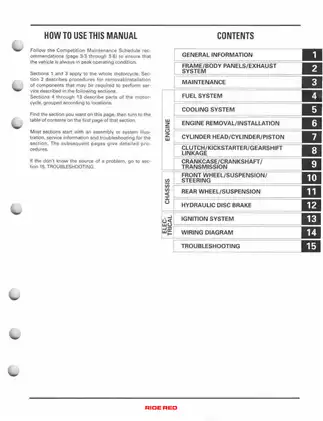

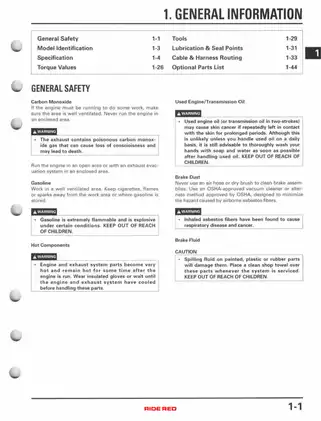

One printable, English-language, 302-page PDF, including four opening pages: the cover, safety notice, manual-use guide, and symbol key.

Engine Overhaul, Race Maintenance, and Chassis Service

These selected service topics summarize the main workshop coverage. Further subjects include drive-chain slider inspection and spark-plug checks.

• Engine and transmission: Step-by-step procedures for engine removal, cylinder-head and piston service, clutch and kickstarter repair, crankcase separation, crankshaft replacement, and transmission disassembly and assembly.

• Fuel system: Carburetor disassembly, inspection, reassembly, minor and major adjustment, float-level checks, reed-valve service, and temperature/altitude tuning charts.

• Cooling system: Radiator-cap testing, system pressure testing, coolant replacement and air bleeding, radiator removal, and water-pump seal and bearing replacement.

• Chassis and suspension: Frame and exhaust service, fork overhaul, steering-stem repair, rear-shock overhaul, Pro-Link bearing service, and swingarm and wheel repair.

• Hydraulic brakes: Fluid replacement, air bleeding, pad and disc inspection, front and rear master-cylinder repair, and caliper rebuilding.

• Ignition diagnosis: Spark testing, peak-voltage and resistance checks, ignition-timing inspection, CDI/ICM service, engine-stop-button testing, and model-group wiring diagrams.

• Workshop reference: Competition maintenance schedules, torque tables, wear limits, lubrication and seal-point charts, cable/harness routing views, special-tool listings, and troubleshooting charts.

Suited to professional technicians, independent repair shops, and experienced owners with established workshop skills; the procedures assume standard service knowledge and require appropriate special tools and test equipment.

Model Revisions and R/RB Differences

Year-specific information separates changes to port timing, transmission ratios, CDI/ICM configuration, exciter-coil testing, and exhaust sealing. Further change points after 1995, after 1997, and after 2002 identify revisions to frame hardware, controls, suspension, and brakes.

The R uses 17/14-inch wheels; the RB uses 19/16-inch wheels. Corresponding tables distinguish wheelbase, suspension, gearing, chains, sprockets, and fork and shock springs, helping match the service data to the actual configuration.

Top-End and Internal Engine Repair

Top-end repair can be carried out with the engine in the frame. The procedures cover combustion-chamber decarbonizing, cylinder and piston inspection, piston-ring and pin checks, and connecting-rod small-end inspection. Post-assembly checks address compression leaks, abnormal engine noise, secondary-air leaks, and coolant leaks.

Internal repair extends to the primary drive, shift linkage, mainshaft and countershaft assemblies, shift forks, crankshaft bearings, and oil seals. The right countershaft bearing and left shift-drum bearing are not individually replaceable; wear or damage requires replacement of the respective crankcase half.

The cylinder-installation cautions explain how rotating the cylinder can catch the piston ring on a port and break it.

Carburetor Tuning and Cooling-System Diagnosis

Carburetor versions: The PE68B, PE68D, PE68E, and PWK10A receive separate identification and setting data. Service coverage addresses the throttle valve, float, jets, starting-enrichment valve, air screw, fuel filter, air-cleaner housing, and reed valve.

Temperature/altitude charts relate air-screw opening, slow jet, needle selection, clip position, and main jet to operating conditions. Rich/lean troubleshooting also considers intake leaks, crankshaft seals, blocked exhausts, fuel restrictions, and air-cleaner condition.

The air-cleaner cautions connect incorrect UP-mark orientation or poor sealing with piston-ring and cylinder wear; the carburetor cautions identify air-screw seat damage from overtightening.

Cooling diagnosis: Pressure-test procedures distinguish radiator-cap faults from system leakage. Water-pump coverage includes telltale-hole inspection, shaft and gear checks, and replacement of the water seal, oil seal, and supporting bearings.

Ignition Tests and Fault Isolation

Ignition diagnosis includes primary-coil peak voltage, exciter-coil and pulse-generator peak voltage, primary and secondary resistance checks, and engine-stop-button continuity. The after-2004 system has separate connectors, test points, component specifications, and a wiring schematic.

Ignition timing is inspected rather than adjusted: the ignition control module is nonadjustable. The later system also specifies replacement of the pulse generator, stator, and flywheel as a set.

General fault-isolation charts address hard starting, low power, poor low- or high-speed performance, and handling complaints, connecting symptoms with the relevant fuel, ignition, compression, or chassis checks.

Fork, Shock, Brake, and Frame Work

Frame and front end: Seat, side-cover, rear-fender, fuel-tank, expansion-chamber, silencer-packing, and sub-frame procedures accompany handlebar and wheel service. Separate 1995 and after-1995 fork procedures detail seal and bushing replacement, oil filling, air bleeding, and steering-stem bearing work.

Rear suspension: Separate shock procedures cover damper disassembly, valve-stack orientation, seal replacement, oil filling, bleeding, nitrogen charging, and spring setup. Pro-Link and swingarm sections include pivot-bearing inspection and replacement.

Brake inspection: Master-cylinder and caliper procedures include bore and piston measurements, seal inspection, and reassembly details. Hose and fitting checks, pedal adjustment, and brake-drag troubleshooting support the hydraulic service procedures.

Assembly Views and Special Tools

Exploded views cover frame/body/exhaust assemblies, carburetor and reed-valve layouts, cylinder/piston and crankcase/transmission assemblies, and fork/shock dampers. Cable/harness routing views and wiring diagrams for 1995–2002, 2003–2004, and after-2004 systems support reassembly and circuit tracing.

Tool listings identify float-level gauge 07401-0010000, crankcase puller 07937-4300001, crank assembly tool 07965-1660102, and peak-voltage adaptor 07HGJ-0020100, plus model-specific fork and steering drivers. U.S. alternatives are noted where applicable.

Work with the engine and exhaust fully cooled, keep fuel service away from sparks or flame in a ventilated area, and treat the rear shock as a high-pressure nitrogen component.

A Preview of Piston-Ring and Ignition Test Data

The cylinder/piston specifications list a standard piston-ring end gap of 0.27–0.42 mm and a service limit of 0.52 mm for top-end inspection.

Ignition-coil primary resistance is specified at 0.4–0.6 Ω at 20°C (68°F), alongside separate secondary-resistance and peak-voltage test data.
