Detailed Workshop Manual for Honda XL400R XL500R Enduro (1982) – 100 P. Manual | Factory Grade

Honda XL500R XL400R Workshop Addendum

This factory-issued technical supplement provides specialized service procedures and diagnostic benchmarks essential for maintaining the mechanical integrity of these high-performance singles. Developed by Honda engineers, this documentation ensures that every repair—from top-end overhauls to suspension tuning—aligns with original equipment manufacturer standards. Utilizing this professional resource guarantees precision during complex teardowns and protects the longevity of your motorcycle through verified workshop practices.

Workshop Reference Standards

• Total Page Count: 100 high-resolution pages
• Document Format: Searchable Digital PDF
• Official Publication: 1982 Honda Motor Co., Ltd.
• Language: Multilingual (English, French, German, Spanish)

Mechanical Investment Benefits

• Preserve Resale Value: Maintain the machine using exact factory specifications to ensure long-term reliability and market appeal.
• Reduce Downtime: Navigate complex electrical or mechanical faults quickly with logic-based troubleshooting flows.
• Eliminate Guesswork: Access critical torque values and clearances that prevent component fatigue and premature failure.
• Workshop Independence: Perform advanced maintenance in-house with the same technical depth used by dealership technicians.

Series Integrity & Application

This documentation is specifically engineered for the Honda XL500R and XL400R models. As an addendum, it highlights the unique technical evolutions of these specific variants, including the Pro-Link rear suspension and CDI ignition systems. It is designed to be used in conjunction with the base shop manual to provide 100% coverage for 1982 model year requirements.

Master Service Index

• General Information: Model identification, tools, and technical specifications.
• Lubrication & Maintenance: Oil pump service, filter cleaning, and periodic adjustment schedules.
• Engine Systems: Cylinder head, valves, camshaft timing, and decompressor synchronization.
• Chassis & Suspension: Front fork air-adjustment, Pro-Link linkage service, and swingarm pivot maintenance.
• Braking & Wheels: Dual-action drum brake synchronization and wheel bearing replacement.
• Electrical & Ignition: CDI pulse generator testing, AC regulator/rectifier diagnostics, and full-system wiring diagrams.

Precision Benchmarks & Maintenance Logic

• Valve Clearance (Cold): Intake: 0.05 mm | Exhaust: 0.10 mm. Precise adjustment prevents burnt valves and ensures optimal volumetric efficiency.
• Cylinder Head Torque: 6mm Bolts: 10-14 N·m | 7mm Bolts: 13-17 N·m. Correct clamping force is vital for head gasket sealing and preventing warp.
• Compression Pressure: 12.0 - 16.0 kg/cm². Monitoring this value is the primary diagnostic for piston ring and valve seat health.
• Fork Air Pressure: 0 - 0.1 kg/cm². Correct pneumatic preload is essential for the XL series' off-road handling characteristics.

Schematic Clarity & Wiring Data

The manual features high-contrast technical illustrations and exploded views designed for readability in a workshop environment. Every system—including the complex CDI ignition and charging circuits—is supported by high-resolution wiring diagrams. These schematics allow for pin-by-pin continuity testing, ensuring that electrical faults are localized without unnecessary component replacement.

Diagnostic Logic for Systems

Beyond simple parts replacement, this guide focuses on deep-system troubleshooting. It includes resistance values for the pulse generator, charging coil, and lighting circuits. By following the step-by-step voltage drop tests and resistance checks, users can definitively isolate failures in the regulator/rectifier or stator, ensuring the high-output 12V system remains stable during operation.

FAQ

How do I correctly adjust the valve clearance on the XL500R engine? To ensure optimal volumetric efficiency and prevent valve damage, set the intake valve to 0.05 mm (0.002 in) and the exhaust valve to 0.10 mm (0.004 in) while the engine is cold. This precise calibration is critical for maintaining stable idle performance and preventing the "ticking" associated with excessive lash.

Is the XL400R specific electrical system covered in this documentation? Yes, the supplement provides detailed diagnostics for the XL400R (F type), including the CDI pulse generator and AC regulator. For example, it lists the specific resistance values for the XL400R pulse generator within the 30-300 Ohm range (measured between Blue/Yellow and Green/White leads), which is essential for isolating ignition failures before replacing expensive stator components.

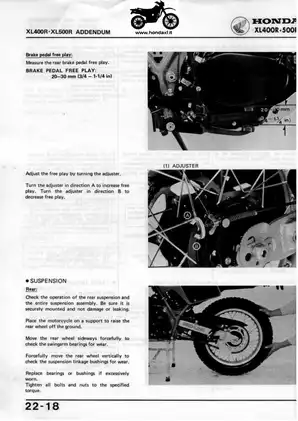

What are the critical torque benchmarks for the Pro-Link suspension and rear axle? When servicing the rear end, the rear axle nut must be torqued to a range of 80-110 N·m (58-80 ft-lb) to ensure wheel alignment stability. Additionally, the shock arm pivot bolt requires a higher force of 90-120 N·m (65-87 ft-lb). Adhering to these specific values prevents the pivot hardware from backing out under heavy off-road oscillation.

How does the digital format improve troubleshooting the 12V charging system? The high-resolution digital schematics allow you to zoom into the AC generator and regulator/rectifier circuit diagrams without losing detail. This is particularly useful when testing the 12V-3AH battery charging rate or checking the 10A fuse continuity, as you can clearly identify wire color codes like Green/White or Blue/Yellow for precise probe placement with a multimeter.

What are the specific fluid requirements for the XL series front forks? The manual specifies a capacity of 345-350 cc per leg for the XL500R and 335-340 cc for the XL400R. Maintaining the correct fluid volume is vital for the damping characteristics of the air-adjustable forks, which operate at a base pressure of 0-0.1 kg/cm² (0-1.4 psi) to balance plushness with bottoming resistance.

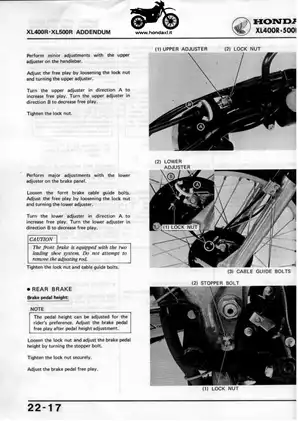

Can I use this manual to synchronize the dual-leading drum brakes? Absolutely. The guide details the synchronization of the brake cam and the adjustment of the connecting rod. It specifies that the upper brake arm bolt should be torqued to 8-12 N·m while the lower arm requires 10-14 N·m. Proper synchronization ensures that both brake shoes contact the drum simultaneously, providing maximum stopping power and even shoe wear.
