1975-1981 Ford 3600 3 Cylinder AG Tractor Parts List

Technical reference spanning 3600, 3900, 4100, 4600, 231, 531, 333, 335 AG Tractor models — print engine, engine overhaul, and related parts. PN C5NN3A304AA

4.5starstarstarstarstar_half(2)
Ford Tractor manual preview - 1975-1981 Ford 3600 3 Cylinder AG Tractor Parts List
$15.40 (incl. VAT) Instant Download / No Shipping Fees
2 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal

Ford Models Covered & Key Technical Specifications

Models: Ford 2000, 2100, 2110, 2120, 2150, 231, 233, 2600, 2600N, 2600R, 2600V, 3000, 3055, 3100, 3120, 3150, 3190, 3300, 3310, 333, 335, 340, 3400, 3500, 3550, 3600, 3600N, 3600R, 3600V, 3900, 4000, 4100, 420, 4400, 4410, 4500, 4600, 4600SU, 500, 5100, 515, 5190, 5200, 531, 532, 535, 54, 540, 5600, 5700, 6600, 6600C, 6700, 7000, 7100, 7200, 7600, 7600C, 7700
Sub-models / Variants: All Purpose, NH-E (New Holland Europe), NHNA (New Holland North America), W/CAB, L/CAB, 2WD, 4WD (FWD), Diesel, Gasoline, 6-Speed, 8-Speed, Manual Reversing, Dual Power, Standard Rear Wheels, Power Adjustable Rear Wheels
Trade Names: Ford 3 Cylinder AG Tractor
Build Years: 1975–1981
Technical Data:

  • Stroke: 4.2 in
  • Engine RPM: 3600 RPM
  • Applied Torque: 2.8 Nm
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
23825 / George Hicks
File Size:
7.02 MB
File Type:
PDF
Language:
English
Pages:
697
Printable:
Yes
Category:
Tractor
Last updated / verified
Oct 15, 2025

Ford Manual Features & Content Preview

Inside the 1975–1981 Ford 3600 3 Cylinder AG Tractor Parts Catalog

  • Covers 1975–1981 Ford 3600 3 Cylinder AG Tractor and related series, providing exploded-view diagrams for front axles, hydraulic trailer brakes, and FWD drivetrain components
  • Official manufacturer parts identification documentation revised through 1981

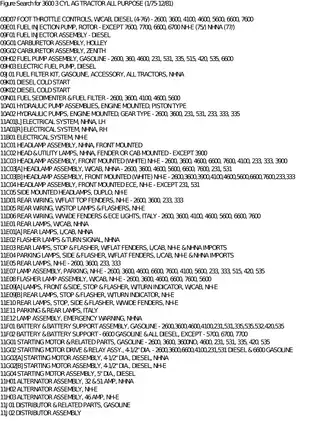

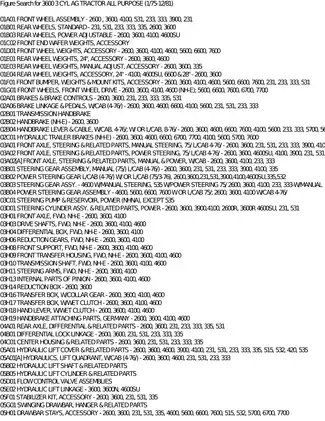

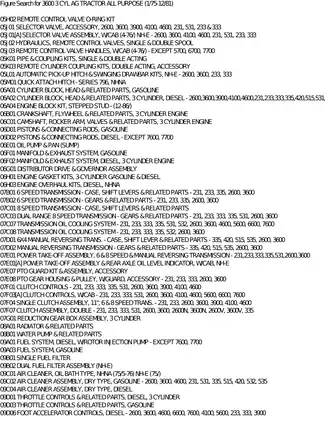

  • Contains 85 detailed exploded-view diagrams, 16 comprehensive parts lists, and system-specific torque configuration data
  • Accessible from your device as soon as the order is placed
  • Suitable for printing individual sections for shop-floor use
  • This 1975–1981 edition is the definitive source for locating part numbers and assembly relationships for the Ford 3600 series, essential for sourcing replacement components for the 3-cylinder diesel or gasoline configurations.

Document Architecture and Component Detail

Assembly and System Coverage

This Ford 3600 3 Cylinder AG Tractor manual details the structural and mechanical components of the 3-cylinder agricultural tractor line. Major sections provide illustrated breakdowns of front wheel assemblies, including variations for 16-inch and 19-inch configurations, alongside rear wheel options like standard and power-adjustable units. The drivetrain coverage documents manual, 6-speed, 8-speed, and manual reversing transmission systems, while also mapping hydraulic lift assemblies, power steering pump reservoirs, and steering cylinder components. Additional documentation encompasses the FWD front axle, transfer housing, and wet clutch transfer box configurations.

Technical Specification Preview

Detailed tables within this Ford 3600 3 Cylinder AG Tractor parts listing provide identification of specific bolts, seals, and bearing assemblies. The manual documents 2.74 U.S. Gallon steering pump reservoir capacities. Engine block overhaul requirements are defined by the 4.2-inch stroke sequence. Steering gear worm bearing locknut specifications are listed for maintenance verification. Component identification is supported by cross-reference tables for parts like the 3600 RPM engine assembly. Every assembly view specifies critical hardware such as the 1/2-inch front wheel hub bolts and the 5/8-inch rear wheel carriage bolts required for correct hardware matching.

Manual FAQ, Purchase & Download Details

Are wiring diagrams and electrical connector pinout references included in this parts catalog? keyboard_arrow_down

Document contains extensive parts lists and exploded view illustrations for various systems, including electrical components and wiring assemblies. It does not contain technical schematics or wiring diagrams.

Does this manual cover the parts breakdown for the 3600 AG Tractor model? keyboard_arrow_down

Document provides a comprehensive parts list, model identification, and exploded view diagrams specifically for the 3600 3-cylinder agricultural tractor series produced between 1975 and 1981.

Can the exploded views be used to identify component configurations for the hydraulic systems? keyboard_arrow_down

Manual includes detailed exploded view diagrams that display component arrangements for the hydraulic lift, pump assemblies, and remote control valves. These illustrations help identify the order of assembly and specific part numbers. It remains a parts identification resource rather than a guide for hydraulic system operation.

Is there a reference list for the identification decals found on the 3600 tractor? keyboard_arrow_down

Parts catalog includes specific sections dedicated to the listing and identification of safety, instruction, and model identification decals.

What kind of information is provided regarding rear wheel assemblies and weight configurations? keyboard_arrow_down

Document contains detailed exploded views and parts tables for standard rear wheels, power-adjustable wheels, and various auxiliary weight kits. These tables list individual components such as rim assemblies, mounting brackets, and fastening hardware.
