1990-1993 Ford 8830 Tractor Comprehensive Parts List Manual

Ford 8830 parts documentation with diagrams and part numbers for all components. Features a detailed breakdown of the front axle and related parts. Includes a parts list for the 6-cylinder agricultural tractor library-master.

4.7starstarstarstarstar_half(3)
visibility Preview Available
Ford 1990-1993 Ford 8830 Tractor Comprehensive Parts List Manual manual page preview - page 1 of 556

Sample pages from the 1990-1993 Ford 8830 Tractor Comprehensive Parts List Manual manual

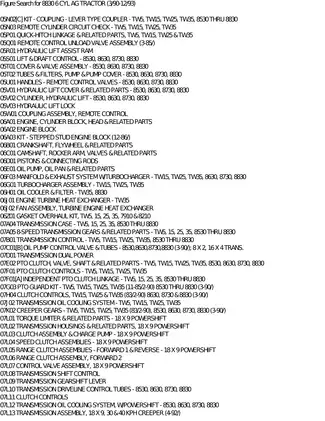

Ford 1990-1993 Ford 8830 Tractor Comprehensive Parts List Manual manual preview page 3 - thumbnail

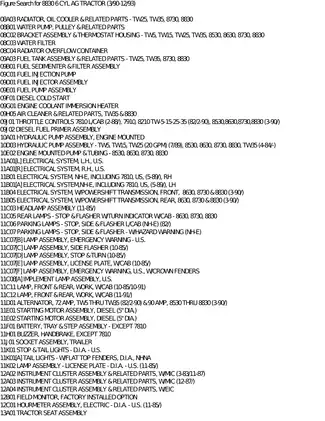

Ford 1990-1993 Ford 8830 Tractor Comprehensive Parts List Manual manual preview page 4 - thumbnail

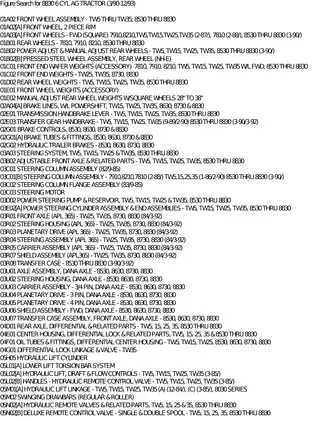

Ford 1990-1993 Ford 8830 Tractor Comprehensive Parts List Manual manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$13.70 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
1 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Ford Models Covered & Key Technical Specifications

Models: Ford 8830, 8530, 8630, 8730, TW5, TW15, TW25, TW35, 7810, 7910, 8210
Sub-models / Variants: 6-Cylinder AG Tractor, L/Cab, W/Cab, Power Shift, FWD, 2WD, Heavy Duty, Short Wheel Base, Long Wheel Base, Manual Adjust Rear Wheels, Power Adjust Rear Wheels, 46-inch Dual Wheels, 3/4 Pin Dana Axle
Build Years: 1990–1993
Technical Data:

  • Alternator Output: 72 Amp (standard), 90 Amp (heavy-duty)
  • Front Axle Type: Dana 365, APL 365
  • Transmission Options: 18x9 Powershift, 8-Speed gear
  • Wheel Adjustment Ranges: 28 to 38 inches
  • Front End Weight Capacity: 40 kg per wafer unit
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
23846 / George Miller
File Size:
6.94 MB
File Type:
PDF
Language:
English
Pages:
556
Printable:
Yes
Category:
Tractor
Last updated / verified
Sep 16, 2025

Ford Manual Features & Content Preview

1990–1993 Ford 8830 Tractor Parts Catalog

  • OEM publication part number 35005199b for the 1990–1993 6-cylinder AG production run
  • Includes cross-reference support for TW-series and 8030-series variants
  • Over 100 exploded-view diagrams covering front axle, steering, braking, and driveline assemblies
  • Fully searchable PDF format to locate exact part numbers instantly
  • Formatted for standard US Letter and A4 printing
  • Instant digital access immediately after checkout

Complete Component Breakdown

This 556-page catalog is the essential reference for identifying the exact hardware, shims, seals, and bearings for the Ford 8830 chassis. It breaks down all major mechanical systems, including front and rear wheel assemblies with both power and manual adjustment options, alongside wafer-weight setups. The steering section details the column, motor, and the heavy-duty APL 365 front axle. You will also find internal transmission gears, PTO clutches, and brake lines separated by standard and Power Shift builds.

Assembly and Specification Data

Beyond exploded views, this manual provides critical hardware specs to help you verify replacement parts. It lists exact seal and O-ring dimensions, such as the 0.468" ID x 0.078" O-ring for the steering pump. The text documents differential gear ratios for 8530/8630 and 8730/8830 units and details shim thicknesses down to 0.002 inches. For electrical work, it includes complete L.H. and R.H. wiring layouts specific to US-market models.

Manual FAQ, Purchase & Download Details

Which specific wheel and rim assemblies appear in the detailed parts catalog for the Ford 8830 tractor? keyboard_arrow_down

Catalog contains comprehensive parts lists for front wheel assemblies, rear wheel assemblies, and power adjust wheel configurations including specific part numbers and rim dimensions.

Are hydraulic system components such as remote control valves and lift cylinders detailed in the manual? keyboard_arrow_down

Hydraulic system sections include exploded views and part listings for remote control valves, lift cylinders, and draft control components. These diagrams cover a range of configurations applicable to the tractor model.

Is the engine cooling system coverage, including the radiator and water pump, featured in the document? keyboard_arrow_down

Engine chapters contain detailed parts information for cooling system components such as water pumps, radiator assemblies, and oil coolers. These sections provide exploded views to identify individual parts and housing structures. The documentation is organized by component group to facilitate clear reference.

What document identification cues are present in this Ford 8830 manual? keyboard_arrow_down

PDF document is a parts catalog for the 1990-1993 Ford 8830 tractor series and contains 556 pages of descriptive part data.

Does the manual show the electrical system harness references and alternator specifications? keyboard_arrow_down

Electrical system chapters include part identification for alternators, starting motors, and various lamp assemblies. The document also provides references for electrical wiring and harness components used in the tractor series.
