Canon BJ-W9000 Printer Service Manual Set, 2001 (P/N QY8-1373-000)

455 Pages • Printable PDF • 23.03 MB • Download

4.5starstarstarstarstar_half(2)
$6.19 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Canon Models Covered & Key Technical Specifications

Model: BJ-W9000

Trade Names: BJ-W9000

Year: 2001


  • Printing resolution: 1200 × 600 dpi

  • Print technology: Bubble jet, six-color dye-based (C, M, Y, K, PC, PM)

  • Print speed (A0): 7 minutes (Fast), 14 minutes (Regular), 29 minutes (Fine)

  • Media width capacity: Roll media: 610 mm to 1092 mm (24" to 43"); cut sheets: 420 mm to 1092 mm (17" to 43")

  • Supported media thickness: 100 μm to 240 μm

  • Ink capacity: Approximately 650 ml per bottle

  • Interface: SCSI-2 (Fast SCSI), 8-bit parallel, D-Sub 50-pin connector

  • Waste ink tank capacity: Approximately 2000 ml

Canon Manual Features & Selected Content Preview

Publication Pages

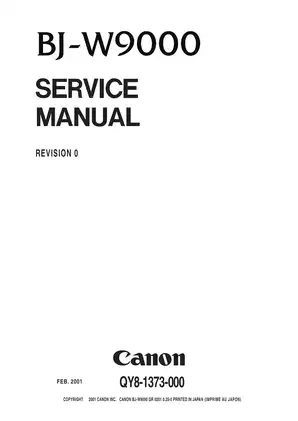

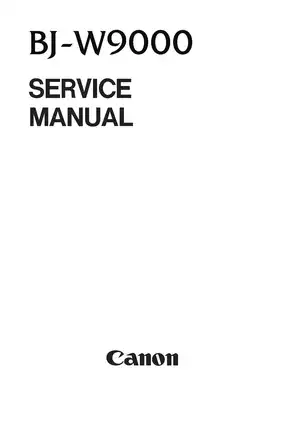

Canon BJ-W9000 Large Format Printer Service Manual — P/N QY8-1373-000, Revision 0 (February 2001) 419
Canon TU-01 Take-Up Unit Service Manual 35

The printer manual covers service work on the main machine, while the take-up unit manual adds installation and winding-mechanism diagnosis for the optional attachment.

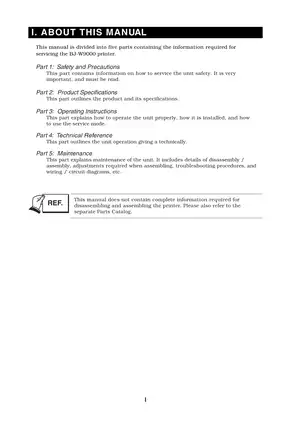

Disassembly scope: The printer manual's Part 5 provides component-specific procedures and precautions. Both manuals also refer to a separate Parts Catalog for complete disassembly and assembly; parts catalogs are not included.

Searchable Text, Bookmarks & Circuit Detail

Search and schematic navigation: The PDF includes searchable service text and bookmarks for both manuals. Small circuit labels require zooming; some labels overlap in the TU-01 circuit diagram.

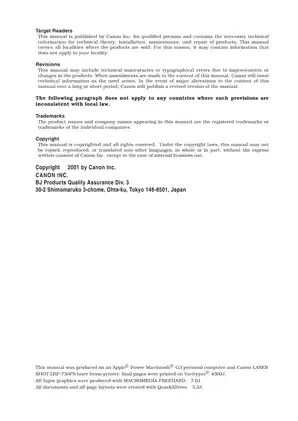

The set is supplied as one printable, English-language PDF with 455 pages. This total includes the manuals' cover and introductory pages, six intentionally blank pages, and one closing back cover.


Ink-System, Paper-Feed & Controller Service

These selected service topics provide a preview rather than a complete contents list. Further topics include user-mode paper-feed settings and print-head temperature protection.

  • Ink-system repair: Removal and reassembly precautions for the carriage, sub-tank, purge, ink bottle, and waste ink tank units, plus step-by-step automatic and manual ink-drain procedures.

  • Paper-path repair: Roll media cassettes A/B, pressure rollers, feed motor and feed roller assembly, cut sheet feed unit, and cutter installation details.

  • Factory adjustments: Roll-feed drive belt tension, wiper blade positioning, and nozzle-check auto position adjustment following component replacement.

  • Service-mode testing: Sensor and clutch I/O checks, operation-panel testing, nozzle test prints, component counters, and error-history review.

  • Controller diagnosis: General Circuit Diagram, board schematics, and connector pinouts for the system, image process, head, carriage, mechanical, and motor controllers.

  • Take-up unit service: TU-01 installation, cardboard tube holder service, and symptom-based troubleshooting for automatic and manual winding.

Written for qualified service personnel working on printer installation, maintenance, and repair.

Installation, Safety & SCSI Configuration

Part 1 addresses ink handling, electrical precautions, and moving assemblies. These precautions should be reviewed before hands-on mechanical work.

Setup and relocation: General specifications and installation requirements accompany procedures for leveling, check-valve release, ink filling, transport preparation, and reinstallation.

SCSI configuration: Interface coverage includes SCSI-II (Fast SCSI) configurations and the printer's built-in termination, which cannot be disabled.

Print Heads, Ink Delivery & Sensor Layouts

Part 4 explains firmware logic, electrical component arrangements, and sensor detection functions. The bidirectional print system uses four BC-1100 print heads, each with three nozzle arrays, and BCI-1101 ink bottles, including photocyan and photomagenta.

Ink circulation: Open and closed sub-tanks are described alongside carriage air buffers, supply and suction pumps, and A-C/C-S/A-H valve control. Waste ink monitoring uses tank weight and conductive leak detection.

The Schematic Diagram of the Ink Passage (for one color) and Overview of Paper Path show the relationships between the corresponding assemblies. The Power Supply Block Diagram and Covers/Cassettes Sensor Layout support supply-circuit and cover-interlock diagnosis.

Fault Isolation & Firmware Utilities

Error diagnosis: Troubleshooting distinguishes operator calls from warning, service-error, and firmware-error codes. Diagnostic procedures address ink-circulation failures, valve-sensor errors, nozzle-check faults, carriage/feed motor overloads, and SCSI communication problems.

Separate symptom charts cover no-power, missing-color, and poor-output conditions that may occur without a display message.

System controller updates: System Controller Version Up Software is documented for firmware updates and counter-data backup and restoration during board replacement.

Carriage and motor controller updates: The manual describes CR/MT Controller Version Up Software and upgrade tool QY9-0114-000 for updating these controllers.

The troubleshooting utility provides real-time monitoring of sensor states and sub-tank ink levels. The PDF explains these utilities; software and firmware files are not included.

Alignment Tools & Repair Precautions

The Manual Print Position Adjustment Pattern supports alignment evaluation. Electrical diagnostic procedures also include motor-resistance and circuit-continuity checks.

Special tools: Dummy head QY9-0101-000 is specified for wiper blade alignment, and valve releasing tool QY9-0111-000 is used for the ink-bottle check valves.

Carriage and ink handling: Moving the carriage while it is capped can damage the print heads. Conductive ink on powered electrical assemblies can damage the circuitry.

TU-01 Winding Mechanism & Fault Trees

The take-up unit manual covers cardboard tube holders for 2- and 3-inch cores, drive-ring and spring positioning, lubrication points, and the paper-sensor-controlled winding mechanism.

Separate fault trees distinguish FEED/FORWARD switch failure, unavailable AUTO mode, and complete loss of winding. Continuity and voltage checks are supported by a circuit diagram and a PCB component-location view; the TU-01 does not report error codes to the printer.

Selected Motor-Resistance Reference Values

For the BJ-W9000 carriage-motor overload diagnosis, the manual gives an approximate normal resistance of 1.3 Ω for the motor's electrode checks. The feed-motor overload procedure specifies approximately 3.6 Ω between the motor's two electrodes.

These checks form part of fault-isolation procedures that also examine the carriage path, paper passage, mechanical obstructions, and relevant controller boards.
