2002 Yamaha XV1700PCR, XV1700PCRC Road Star Warrior Service Manual (P/N LIT-11616-15-37, LIT-11616-16-36)

• 605-page PDF set: 514-page base manual P/N LIT-11616-15-37, 32-page PCR/PCRC supplement P/N LIT-11616-16-36, and 59-page PCV/PCMV supplement P/N LIT-11616-19-46.
• Exact model coverage includes XV1700P/XV1700PC, XV1700PCR/XV1700PCRC, and XV17PCV(C)/XV17PCMV(C), with U.S., California, and Canadian variants.
• Engine repair sections cover the valvetrain, camshafts, heads, pistons, clutch, starter clutch, transfer gears, crankcase, oil pump, crankshaft, and transmission.
• Chassis procedures include wheels and brake discs, master cylinders and calipers, hydraulic bleeding, fork overhaul, steering-head service, rear suspension, and drive-belt work.
• FI and electrical diagnostics provide ECU fault-code and fail-safe information, sensor and actuator checks, fuel-pressure testing, circuit diagrams, coupler views, and system troubleshooting.
• Model-specific supplements add revised cable routing, suspension and brake layouts, fuel-tank and front-end changes, transfer-case and transmission updates, and a 2006 wiring diagram.
• Factory reference content includes exploded job-order drawings, torque and lubrication charts, capacities, wear limits, adjustment data, electrical test values, and special-tool numbers.

Complete Three-Manual Reference Chain

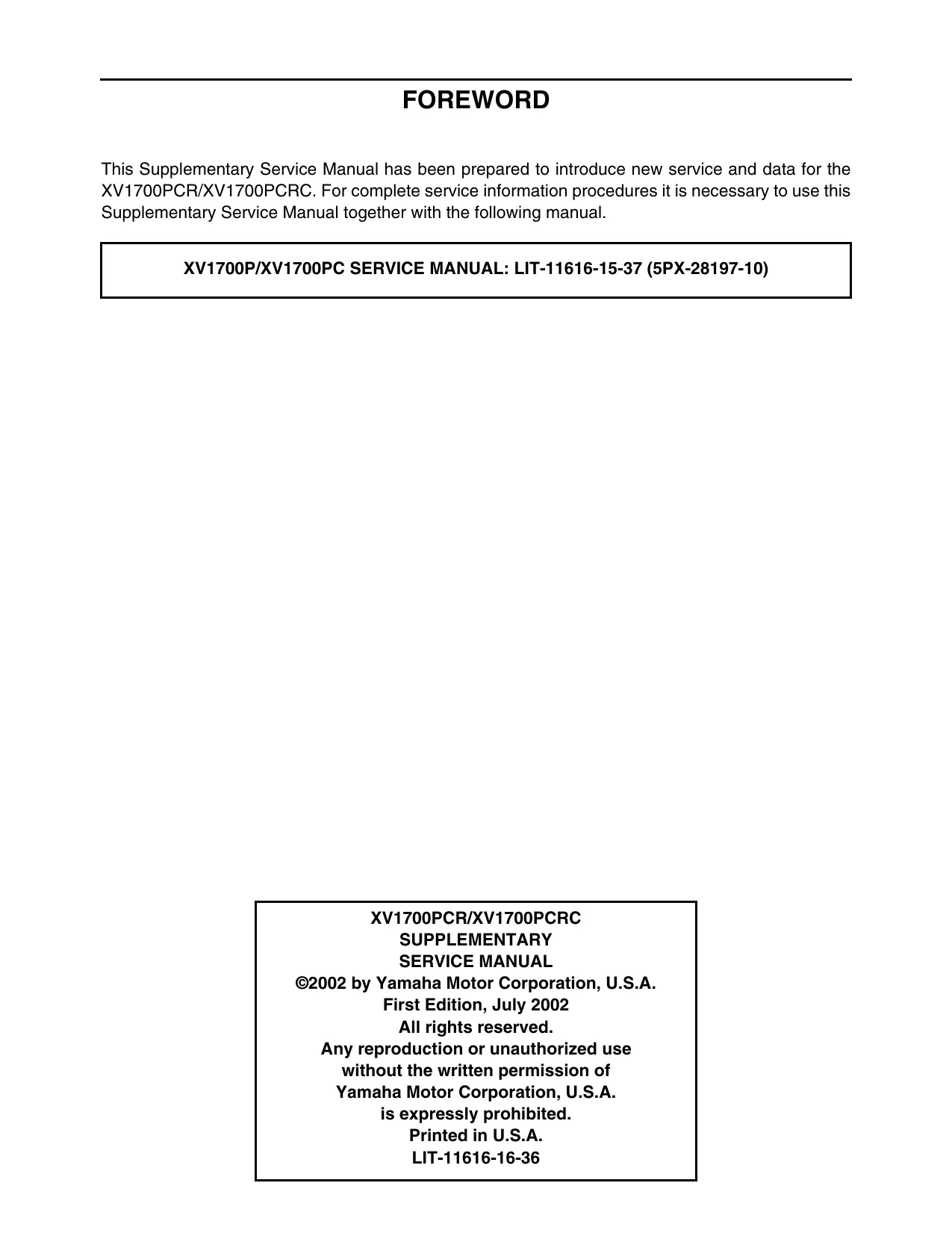

This is not one 605-page supplement. It is the full three-publication factory reference chain for the covered Road Star Warrior configurations. The XV1700PCR/XV1700PCRC supplement directs the technician to use it with the XV1700P/XV1700PC base service manual. The later XV17PCV(C)/XV17PCMV(C) supplement requires both earlier publications. All three are included, so cross-references to Manual No. 5PX-28197-10 and 5PX-28197-11 lead to material within the same set.

The model-code tables distinguish the regional builds before parts, routing diagrams, or specifications are selected. The base manual covers 5PX1, 5PX2, and 5PX3. The PCR/PCRC supplement adds 5PX4, 5PX5, and 5PX6, while the later supplement covers 2D84, 2D85, 5PXG, and 5PXH.

Workshop Repair and Diagnostic Depth

The base manual covers full mechanical repair of the air-cooled, dry-sump OHV V-twin. Top-end work includes rocker arms, push rods, hydraulic valve lifters and lifter bleeding, camshafts, the decompression system, cylinder heads, valves and seats, cylinders, and pistons. Lower-end and drivetrain coverage handles the clutch and primary drive, generator and starter clutch, transfer gear case, crankcase, engine oil pump, crankshaft and connecting rods, shift drum and forks, and transmission gearsets.

The chassis chapters document wheel and brake-disc inspection, static balancing, brake-pad replacement, master-cylinder and caliper disassembly, hydraulic-system bleeding, front-fork overhaul, handlebar and steering-head work, rear-shock and swingarm service, relay-arm inspection, and drive-belt/sprocket repair. Procedures are organized around removal, disassembly, inspection, assembly, installation, adjustment, and final checks rather than maintenance notes alone.

The PCR/PCRC supplement supplies the changed rear brake master-cylinder arrangement, revised rear-shock and swingarm layouts, spring-preload and rebound-damping adjustment data, updated camshaft sprocket cover and engine left-side cover arrangements, and stator-coil removal. The later supplement adds fuel hose joint installation, revised front wheel and brake components, front-caliper assembly, front-fork changes, drive-belt and drive-pulley installation, engine mounting, transfer-case assembly, crankcase bearing-retainer orientation, and updated main- and drive-axle gear stacks.

Fuel-injection coverage explains the first-idle control system, sensor and actuator functions, injector and throttle-body checks, and fuel-pump/pressure-regulator testing. ECU diagnosis includes fault codes displayed through the tachometer and clock LCD, DIAG-mode sensor values and actuator operation, fail-safe behavior, wiring, and fault-isolation tables. Separate electrical sections cover component and coupler locations, switch continuity, ignition, starting-circuit cut-off operation, starter motor, charging, lighting, signaling, and FI circuits.

Diagrams, Tools, and Repair Cautions

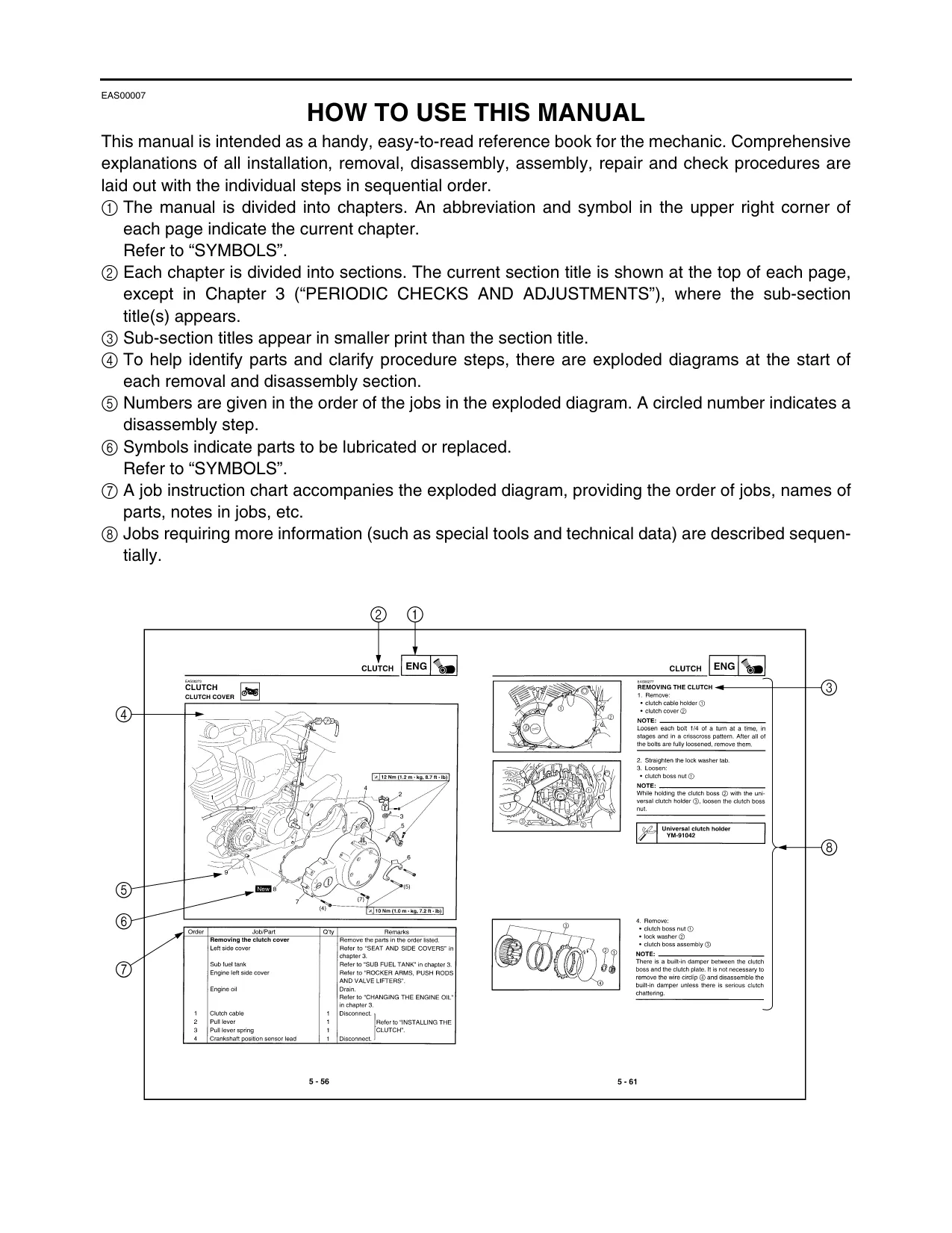

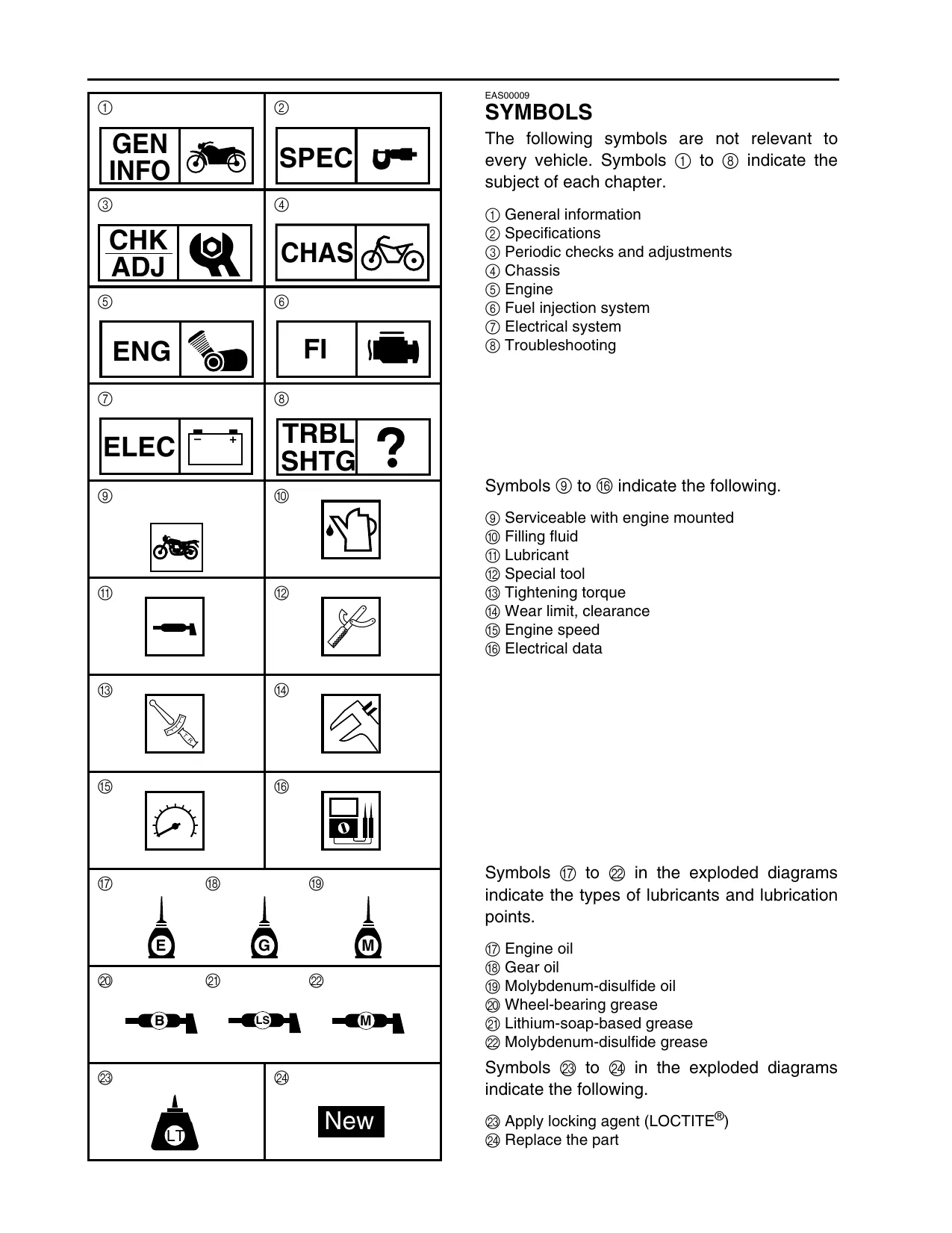

Exploded drawings are paired with job-order charts that identify parts, quantities, replacement symbols, lubrication points, and sequence references. Key diagrams include engine-oil and transfer-gear-oil flow diagrams, the FI circuit diagram, electrical component and coupler location views, rear-shock and swingarm exploded assemblies, and the full XV17PCV(C)/XV17PCMV(C) 2006 wiring diagram. Cable-routing sheets identify harness, brake-hose, throttle-cable, clutch-cable, ignition-lead, sensor, and emissions-component paths and retaining points.

The special-tool section gives Yamaha tool numbers for work that is easily damaged by improvised equipment. Examples include alternator rotor puller YM-01080-A, fork spring compressor YM-01441, fork seal driver YM-01442, belt tension gauge YM-03170, and fuel-pressure adapter YM-03176.

Manual-specific cautions flag several expensive repair traps. The rear shock contains highly compressed nitrogen; opening, heating, or deforming it can cause rupture or ruin damping performance. Solvents can swell and distort brake-caliper piston seals, and incorrect or mixed brake fluid can deteriorate the seals and reduce braking. A removed drive belt must retain its original running direction and must not be twisted during installation.

Brake, fuel-system, suspension, engine-removal, and electrical repair work requires secure motorcycle support, the specified service tools, and appropriate shop safety experience.
