Honda CBR1100XX 1999–2002 Factory Service Manual (P/N 61MAT53)

This three-PDF set combines two Honda CBR1100XX service-manual editions for the 1999-2002 PGM-FI motorcycles with an illustrated parts catalog covering 1997-2002. Honda states that the service material is written for people who already have basic knowledge of Honda motorcycle maintenance, making it suited to experienced owners and technicians equipped for fuel-system, electrical, engine, and linked-brake work. It is repair documentation, not an owner's handbook or a beginner-level maintenance guide.

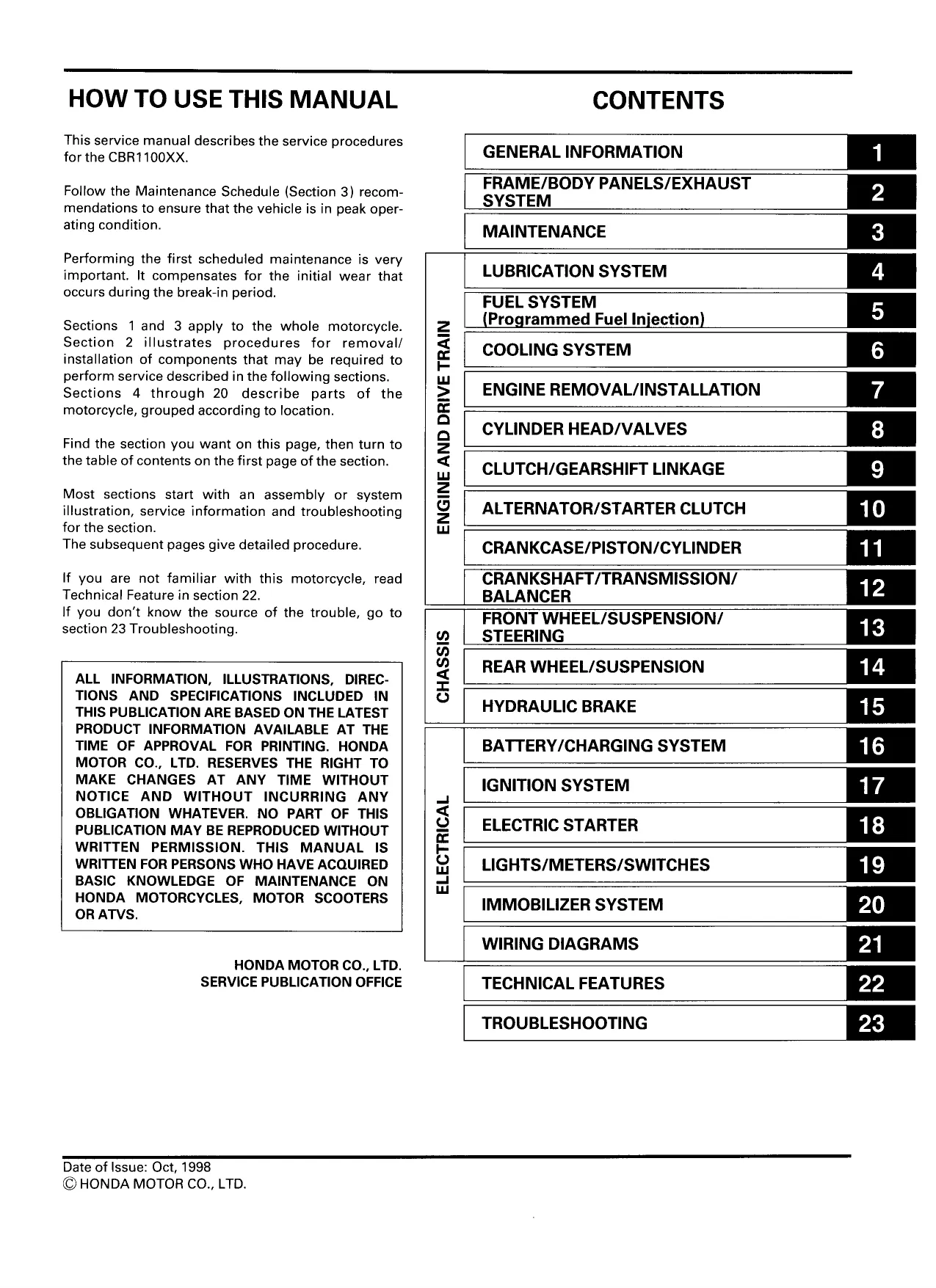

• 1,157 PDF pages total - 518-page multi-market service manual issued October 1998; 557-page North American service manual, cover number 61MAT53, issued December 1998; and an 82-page CBR1100XX '97-'02 parts catalog.
• Engine repair scope covers removal and installation, cylinder-head and camshaft service, valve-guide replacement and seat refacing, crankcase separation, piston and connecting-rod inspection, crankshaft bearing selection, transmission work, and balancer service.
• PGM-FI diagnosis provides self-diagnostic procedures and malfunction-indicator code charts, fuel-line and pump testing, injector checks, sensor and relay fault isolation, starter-valve synchronization, first-idle wax-unit service, and ECM testing.
• Dual Combined Brake System service addresses fluid replacement and the system-specific bleeding sequence, brake pads and discs, both master cylinders, the secondary master cylinder, proportional control valve, delay valve, and three-piston front and rear calipers.
• Chassis procedures cover wheel and bearing service, fork disassembly and assembly, steering-stem work, rear shock removal, suspension linkage and swingarm repair, drive-chain service, and the related inspection limits and torque tables.
• Electrical chapters document battery and charging-system testing, alternator output, regulator/rectifier diagnosis, ignition peak-voltage tests, starter-motor and relay service, combination-meter checks, lighting, switches, sensors, and harness routing.
• Illustrated parts identification maps year-specific engine, fuel, brake, electrical, frame, and body assemblies, with model-code and serial/VIN application data alongside the exploded views and part-number tables.

Coverage by Year and Market

Full service and repair coverage begins with the fuel-injected 1999 model and continues through 2002. The 1997-1998 motorcycles appear in the parts catalog only; their carburetors and related assemblies are illustrated, but this set does not provide full service procedures for those carbureted model years. That distinction matters when selecting the set for an early Super Blackbird.

The North American manual separates 49-state/Canada and California fuel and emissions configurations, including California EVAP canister, purge-control, and vacuum-hose routing information. The other service edition adds an immobilizer chapter for models other than U and BR types, covering key registration, diagnostic-code indication, ECM checks, and receiver testing. The parts catalog further identifies A and AC applications by SC35E engine serial and JH2SC350/JH2SC351 frame/VIN families, then marks year and application changes within each illustrated group.

Factory Procedures and Reference Data

The engine chapters go well beyond routine maintenance. They cover oil-pressure inspection, oil pump and pressure-relief-valve service, cooling-system testing, thermostat and water-pump repair, cylinder-compression testing, cam timing, clutch hydraulic bleeding, internal transmission inspection, and select-fit crankshaft and connecting-rod bearing work. Chassis sections add fork rebuilding, steering-bearing replacement, swingarm-pivot adjustment, brake-component overhaul, and final operational checks.

Diagnostic work is supported by Honda tool references, including the PGM-FI peak-voltage adapter 07HGJ-0020100, ECU test harness 07WMZ-MBG0100, test pin box 07WGZ-0010100, and immobilizer inspection adapter 07XMZ-MBW0100. The manuals also supply component-specific torque data, fluid capacities and approved-fluid information, wear and clearance limits, pressure-test values, electrical resistance and peak-voltage specifications, bearing-selection tables, and adjustment data.

Diagrams and Repair Cautions

Named visual references include the lubrication-system diagram, PGM-FI system location and system diagram, cooling-system flow pattern, Dual Combined Brake System line layout, immobilizer system diagram, and regional full-motorcycle wiring diagrams. Cable and wiring-harness routing views support reassembly after engine, bodywork, or electrical repair.

During crankcase and crankshaft work, the manual warns that bearing inserts must return to their identified locations; an incorrectly placed insert can block an oil passage and lead to engine seizure. It also cautions against applying carburetor cleaner to the molybdenum-coated throttle bore or disturbing the factory-painted throttle-body screws, either of which can damage the calibrated surface or upset throttle and idle synchronization. Follow the manual's stated precautions for fuel-pressure relief, hot cooling-system work, engine support, the nitrogen-charged rear shock, and linked-brake bleeding before starting those jobs.
