2000-2004 Yamaha WaveRunner GP1200R Service Manual

Complete factory service manual for the 2000-2004 Yamaha WaveRunner GP1200R, covering all systems and procedures. PN LIT-18616-02-15

4.5starstarstarstarstar_half(2)
visibility Preview Available
Yamaha 2000-2004 Yamaha WaveRunner GP1200R Service Manual manual page preview - page 1 of 250

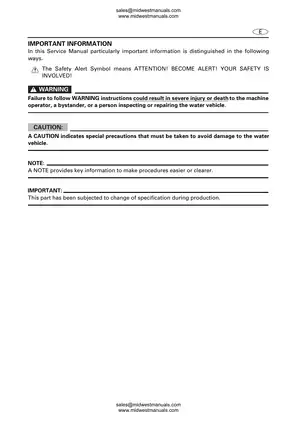

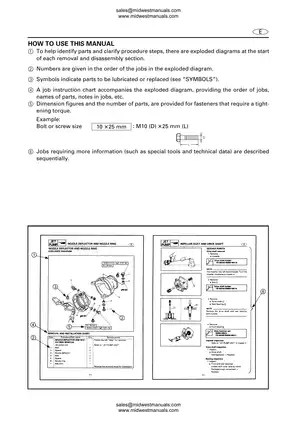

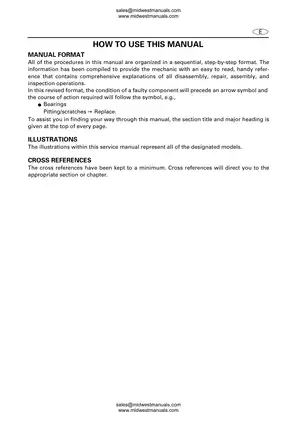

Sample pages from the 2000-2004 Yamaha WaveRunner GP1200R Service Manual manual

Yamaha 2000-2004 Yamaha WaveRunner GP1200R Service Manual manual preview page 1 - thumbnail
info_outline Click thumbnails to preview different pages
$16.98 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Yamaha Models Covered & Key Technical Specifications

Models: Yamaha WaveRunner GP1200R
Build Years: 2000–2004
Serial Numbers: F0X: 800101~ (Primary), 67X: 000101~ (Engine), 67X: 800101~ (Jet Pump)
Technical Data:

  • Engine: 2-stroke, 3-cylinder, 1,176 cm³ displacement
  • Max Output: 114.0 kW (155 PS) @ 7,000 r/min
  • Compression Ratio: 5.9:1
  • Bore x Stroke: 80.0 mm x 78.0 mm
  • Carburetor: BN44 (MIKUNI) x 3
  • Dry Weight: 306 kg (675 lb)
  • Impeller: 3-blade stainless steel, 13.5° pitch
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
23962 / Kenneth Harris
File Size:
8.47 MB
File Type:
PDF
Language:
English
Pages:
250
Printable:
Yes
Category:
Personal-Watercraft-PWC
Last updated / verified
Apr 17, 2025

Yamaha Manual Features & Content Preview

2000–2004 Yamaha WaveRunner GP1200R Technical Documentation

  • Covers 2000–2004 Yamaha WaveRunner GP1200R, providing technical maintenance data for the 1,176 cc 2-stroke triple engine and jet propulsion system
  • Official Yamaha publication LIT-18616-02-15, first edition February 2000
  • Contains 47 exploded-view assembly diagrams and 39 detailed torque-specification tables
  • Accessible from your device as soon as the order is placed
  • Suitable for printing individual sections for shop-floor use
  • Indexed PDF search covers every chapter and appendix
  • This 2000 first edition acts as the foundational service document for the entire production run of the F0X/67X series watercraft

Procedural Scope

This factory service document organizes maintenance requirements into nine distinct chapters, documenting everything from engine disassembly and fuel system calibration to electrical troubleshooting. Detailed exploded views accompany every mechanical procedure, specifying component assembly order, fastener torque values, and lubricant application points for critical systems like the jet pump, power unit, and oil injection assembly.

Specification Previews

Cylinder head warpage limits are documented at 0.1 mm, with compression pressure specified at 500 KPa. Engine oil pump cable adjustment is set by aligning specified marks on the oil pump lever and body. The flywheel magneto nut is torqued to 75 Nm (54 ft-lb) as noted in the tightening torque tables. The spark plug gap is documented at 1.0–1.1 mm. Stator pickup coil resistance is specified at 445–545 ohms. This how factory workshop documentation is structured reference provides technicians and owners with all factory-mandated tolerance charts and wiring routing diagrams necessary for outboard maintenance intervals and internal service. Note: This page is a contents overview for the manual. It does not provide repair or diagnostic instructions.

An official 250-page Yamaha OEM workshop manual covering the 2000–2004 WaveRunner GP1200R, documenting engine, chassis, electrical, and fuel-injection specifications for the F0X and 67X series watercraft builds.
