KTM 400/620 LC4 & LC4e Engine Repair Manual – 1997 (P/N 3.205.18)

This German-language KTM factory engine repair manual covers the 1997 400/620 LC4 and LC4 e family. It carries P/N 3.205.18 and the 5/97 publication date. Its focus is internal engine repair. Maintenance schedules also list chassis service tasks, but detailed chassis, suspension, brake, and bodywork repair procedures are outside its scope.

PDF Search, Navigation and Diagram Detail

Finding text and reading schematics: PDF text search is not available, and there are no embedded PDF bookmarks. Small component numbers and wire-color abbreviations in the charging, electric-start, and ignition schematics require zooming for comfortable reading.

One printable 76-page PDF contains 75 manual pages plus the original one-page cover, already included in the total.

Engine Overhaul, Lubrication and Electrical Diagnosis

The following selected coverage highlights summarize the main workshop areas rather than reproduce the complete contents.

• Variant coverage: SX, SC, EGS/EGS Classic, EGS-E, LSE, and DUKE e application data distinguish electric-start, SLS, catalyst, and carburetor configurations.

• Engine overhaul: Step-by-step procedures cover engine removal and installation, disassembly, crankcase separation, component inspection, crankshaft shimming, and reassembly.

• Cylinder head and timing: Valve-train repair, piston/cylinder measurement, automatic-decompressor inspection, cam timing, chain-tensioner service, and water-pump rebuilding.

• Clutch, gearbox and starting drives: Clutch repair, transmission-shaft assembly, shift-mechanism service, kickstarter repair, and electric-start gear and freewheel work.

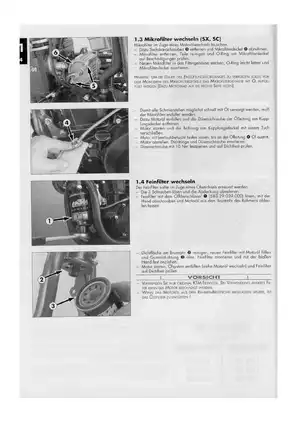

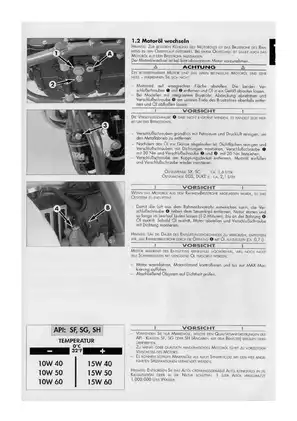

• Lubrication service: Variant-specific oil circuits, microfilter and fine-filter replacement, oil-system bleeding, bypass-valve inspection, and oil-pump wear checks.

• Electrical diagnosis: Kokusan and SEM ignition tests, charging checks, starter-interlock diagnosis, circuit schematics, and separate troubleshooting tables for electric-start and non-electric-start models.

Suited to mechanics experienced in internal engine work, with access to precision measuring equipment, suitable pullers, and an engine mounting stand.

Crankcase, Crankshaft and Top-End Repair

Case and rotating assembly: Inspection covers case bearings, seals, oilways, crankshaft runout, connecting-rod bearing play, and crankshaft axial-play measurement and shimming. Countershaft-sprocket and primary-drive procedures accompany the internal overhaul work.

Piston and cylinder: The manual explains piston-ring end-gap checks, piston and cylinder measurement, and inspection of the Nikasil-coated bore. It also describes the replacement-cylinder option for worn coating.

Cylinder head: Valve-seat, guide, spring, and rocker inspections accompany head disassembly and assembly instructions. Valve-guide replacement is assigned to a suitably equipped workshop. Upper-head service includes the manual decompressor, rocker-shaft shimming, and sealing arrangements.

Camshaft and timing-chain inspection is followed by installation data, automatic-tensioner preparation, automatic-decompressor testing, and valve-clearance adjustment. Water-pump coverage extends to shaft, bearing, and seal replacement.

The manual cautions that levering crankcase halves apart can damage their sealing faces. Its flywheel sections warn that impact during removal or excessive heat during freewheel-hub work can loosen the magnets.

Clutch, Gearbox and Lubrication Variants

Clutch and shifting: Beyond plate and spring inspection, the component chapter covers clutch-basket damper replacement and riveting. Clutch-release-shaft installation and adjustment, shift-shaft preparation, shift-carrier inspection, and input- and output-shaft assembly receive separate treatment.

Starting drives: Kickstarter components, intermediate gears, the starter freewheel, and freewheel-hub replacement are covered. Internal starter-motor rebuilding is not developed as a repair procedure; coverage centers on testing, unit replacement, and flange O-ring service.

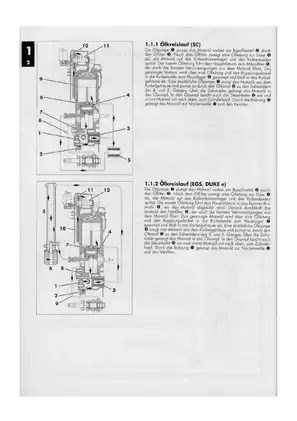

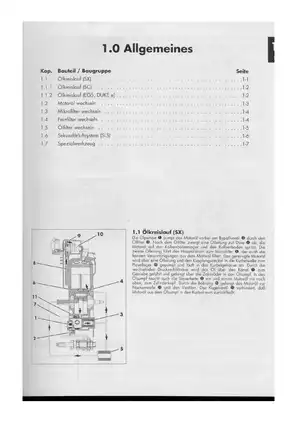

Oil-system differences: Separate SX, SC, and EGS/DUKE e oil-circuit and oil-line illustrations help match service work to the lubrication layout. They distinguish the SX single-pump arrangement from the additional scavenging pump and show the frame oil reservoir used on applicable models.

Engine support, heated cases, spring-loaded mechanisms, and electric-start circuits require normal workshop safety controls and verified equipment.

Carburetor Settings and Service Reference

Separate LC4 and LC4 e reference tables provide component-specific torques, installation clearances, wear limits, lubrication and cooling capacities, ignition settings, and transmission ratios. Valve settings distinguish the 400 models and 620 SX from the 620 SC/EGS and 620 LC4 e.

PHM 38/40 basic-setting charts identify 400 SC, 400 EGS Classic, 620 SX/SC, EGS Classic with and without SLS, EGS-E/LSE catalyst and non-catalyst versions, and DUKE 620 e. Carburetor coverage consists of setup tables and troubleshooting references, rather than a dedicated overhaul chapter.

Separate maintenance tables serve SX/SC/EGS and EGS-E/LSE/DUKE e configurations. The SLS airflow diagram explains the secondary-air valve and vacuum-operated control valve.

Charging, Ignition and Starter Fault Isolation

Electric-start models: EGS-E, LSE, and DUKE e sections cover parasitic-current and charging-voltage checks, battery service, auxiliary and main starter relays, diodes, clutch and neutral switches, the starter/kill switch, and side-stand interlocks.

The interlock tests help distinguish a starter or ignition fault from a switch, diode, relay, or supply problem. Separate symptom/cause/remedy tables address starting, idle, power loss, overheating, oil consumption, and charging complaints.

Ignition and non-electric-start systems: Tests include ignition-coil and plug-cap resistance, Kokusan stator and pulse-generator checks, SEM stator inspection and replacement, and variant-specific timing. A true CDI function test requires an ignition test stand. SC/EGS coverage also includes Shindengen regulator/rectifier, Tympanium regulator, and capacitor tests.

Charging-system, E-starter, and ignition circuit schematics accompany these procedures. The separately referenced Chapter 9 wiring-diagram section is not included.

Special Tools and Assembly Illustrations

The tool plate identifies KTM part numbers for the universal engine stand, clutch holder, Kokusan and SEM flywheel pullers and crankshaft caps, piston installation rings, and primary-gear/clutch-hub puller.

Valve assembly tools, a bearing puller, flywheel holder, crankshaft locking screw, countershaft-sprocket holder, and clutch riveting tool are also listed. Dimensioned drawings for a wooden support and steel support plate provide a basis for making those workshop aids.

Clutch and gearbox exploded assemblies, timing illustrations, and water-pump views support component identification and assembly orientation.

A Sample of Crankshaft and Clutch Inspection Data

The crankshaft inspection and assembly sections specify axial play of 0.03–0.12 mm, with measurement and shimming information for work involving the crankshaft, crankcase, or main bearings.

Clutch inspection data give a 2.5 mm minimum friction-plate thickness and a 34.5 mm minimum spring length, compared with 37 mm when new. These examples accompany the manual’s component inspection and replacement criteria.
