KTM LC4 400–660 1998–2003 Engine Repair Manual (P/N 3.206.006-E)
387 Pages • Printable PDF • 18.44 MB • Download
KTM Models Covered & Key Technical Specifications
Models: LC4 (400, 540, 620, 625, 640, 660)
Sub-models / Variants: SX, SXC, SC, SMC, Adventure, Duke, Supermoto, LC4-E, 400/640 LC4 R, 620 LC4 Competition, 640 Adventure R, 640 Duke-E, 640 Duke II
Trade Names: LC4, SMC, Adventure
Model Years: 1998–2003 (1998, 1999, 2000, 2001, 2002, 2003)
Engine Number Prefixes: Engine numbers beginning with 8 (1998), 9 (1999), 0 and 1 (2000/2001), 2 (2002), 3 (2003)
Transmission: 5-speed claw-shifted gearbox
-
Oil capacity (up to 2002): 1.40 liters (oil-change instructions for models without frame oil)
-
Oil capacity (2003 onwards): 1.50 liters (oil-change instructions for models without frame oil)
-
Swingarm pivot torque: 100 Nm (74 ft.lb)
-
M8 engine mounting bolt torque: 40 Nm (30 ft.lb)
-
M10 engine mounting bolt torque: 70 Nm (50 ft.lb)
-
Idle speed range: 1400–1500 rpm
-
Valve clearance (intake/exhaust): 0.15–0.20 mm depending on model
-
Crankshaft journal run-out limit: 0.04 mm (0.0016 in) in the component inspection section; 0.08 mm in the general wear-limit table
-
Conrod radial clearance limit: 0.05 mm (0.0019 in)
KTM Manual Features & Selected Content Preview
This KTM factory repair manual, P/N 3.206.006-E, Edition 4/2003, covers documented 1998–2003 LC4 engine variants in the 400–660 model series, including the 540 and 625. Engine repair instructions are accompanied by model-specific electrical diagnosis, chassis specifications, and periodic maintenance schedules.
Text Search, Bookmarks and Wiring Detail
Search and diagram navigation: Text search works throughout the repair chapters, but most wiring-diagram labels are not searchable. Embedded bookmarks cover the main chapters; the Home link and four Service Information entries point to separate PDF files. Dense wiring labels require zooming.
The manual is supplied as one printable, English-language PDF with 387 pages, including seven preliminary pages—covers, contents, update notes, introduction, and a feedback form—and 27 blank pages.
LC4 Engine Rebuilding and System Diagnosis
The following highlights are a selection of the contents. Further topics include automatic decompression testing and Adventure speedometer-sensor diagnosis.
-

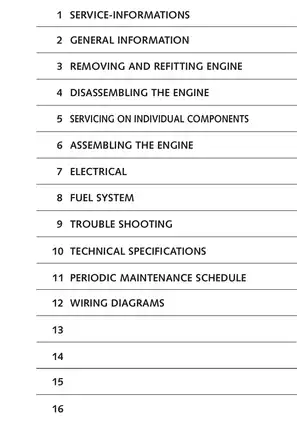

Engine overhaul: Step-by-step procedures for engine removal, crankcase separation, component inspection, and reassembly, with piston, cylinder-head, and timing-system checks.
-
Clutch and transmission: Clutch wear inspection, hydraulic clutch bleeding, mainshaft and countershaft service, and shift-mechanism adjustment.
-
Lubrication and cooling: Oil-pump inspection, frame-oil and non-frame-oil circuit drawings, filter service, and water-pump disassembly and reassembly.
-
Carburetor service: Mikuni, Dell’Orto, and Keihin disassembly and assembly procedures, float checks, idle adjustment, and throttle-position sensor testing.
-
Electrical diagnosis: Ignition and charging tests, starter-relay and safety-switch checks, troubleshooting charts, and model-specific wiring diagrams.
-
Workshop reference: Engine and chassis specifications, component torque tables, assembly clearances, wear limits, and model-specific maintenance schedules.
KTM assumes repairs will be performed by qualified, professionally trained mechanics and does not teach general workshop methods.
Engine, Clutch and Transmission Repair
Internal engine work: The component sections cover crankshaft shimming, piston and cylinder measurement, valve-guide and valve-seat inspection, and camshaft timing marks. ELKO and ARIAS piston-ring identification is included. Factory torque data and wear limits can be used alongside the illustrated assembly sequences when checking an engine rebuild.
The special-tool table identifies equipment such as clutch holder 583.29.003.000 and hydraulic clutch bleeding syringe 503.29.050.000.
Transmission and starting components: Gear layouts, shift-fork and shift-roller wear checks, return-spring adjustment, and the 660 SMC’s different countershaft bearing arrangement are explained. Electric starter coverage includes removal, installation, and functional testing; internal starter-motor repair is expressly excluded.
Engine removal involves heavy components and potentially hazardous fluids; secure the motorcycle on a stable support and observe the procedure-specific warnings.
Oil Circuits and Water-Pump Service
Separate oil-circuit drawings show the frame-oil layout and the 660 SMC arrangement. Water-pump service includes bearing and shaft-seal replacement.
The frame-oil section warns that inadequate bleeding can leave engine bearings without sufficient lubrication and cause engine damage.
Carburetors, EPC and Secondary Air
The fuel-system chapter covers Mikuni BST 40; Dell’Orto PHM 40 SD, PHM 38 ND, and VHSB 38 QS; and Keihin FCR 41 and FCR-MX 41. Mikuni part-load and full-load section views explain fuel metering, while the Keihin procedures include accelerator-pump inspection and throttle-position sensor checks.
The 2003 625 SXC data distinguish the Keihin FCR-MX 41 configuration from the USA model’s Mikuni BST40-266 setup. Electronic Power Control (EPC) coverage includes solenoid-valve, microswitch, and gear-contact checks; the secondary air system (SLS) section explains valve operation and airflow.
Ignition, Charging and Fault Tracing
Resistance tests cover SEM and Kokusan 4K-2/4K-3 ignition components. Peak-voltage adapter charts provide separate test information for LC4-E/625 SXC and SC/660 SMC systems; the 2003 640 LC4 specifications identify Kokusan 4K5 ignition.
Starter-system and ignition schematics accompany relay, diode, clutch-switch, and side-stand circuit checks. These checks help distinguish an interlock fault from a starter-motor fault before replacement. Troubleshooting charts address starting, idling, power loss, overheating, and charging problems.
The freewheel-hub section warns that overheating the flywheel can loosen its magnets.
A Preview of Axial-Clearance and Clutch-Release Data
Crankshaft axial clearance is specified as 0.03–0.12 mm, with measurement and shim-selection instructions for replacement of the crankshaft, housing, or roller bearings. The cylinder-head section specifies rocker-arm axle clearance of 0.20–0.30 mm.
For hydraulic clutch models from 2003, dimension “Y” is 2.75 mm: the distance from the slave-cylinder mounting face, without its gasket, to the fully seated pushrod.
