Yamaha FZS600 Fazer Service & Parts Manual Set, 1998–2001 (P/N 5DM1-AE1)
483 Pages • ZIP Download: 2 Printable PDFs (EN, ES)
Yamaha Models Covered & Key Technical Specifications
Model & Model Codes: FZS600 (5DM1: base service manual; 5DM7, 5DM8, 5DM9: supplementary service manual)
Sub-models / Variants: FZS600 (5DMC, production code 040; Spain parts catalog)
Model Years: 1998–2001 (1998, 1999, 2000, 2001)
- Engine displacement: 599 cm3
Yamaha Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| FZS600 ’98 Service Manual — English; model code 5DM1; P/N 5DM1-AE1 | 364 |
| FZS600 2000 Supplementary Service Manual — English; model codes 5DM7 / 5DM8 / 5DM9; P/N 5DM1-AE2 | 41 |
| FZS600 Parts Catalog — Spanish; Spain-market 5DMC, production code 040; P/N 115DM-352S2 | 78 |
This set pairs Yamaha repair procedures with model-specific parts identification. Yamaha directs readers to use the supplement together with the included base manual; the parts catalog’s exploded illustrations identify components rather than provide assembly instructions.
PDF Search, Bookmarks and Diagram Detail
Search and diagram access: The service PDF has searchable text throughout its main sections, although covers and some diagram labels are not searchable. Parts descriptions and part numbers in the Spanish catalog are not text-searchable. Both PDFs have embedded bookmarks. Small wiring-diagram labels require zooming.

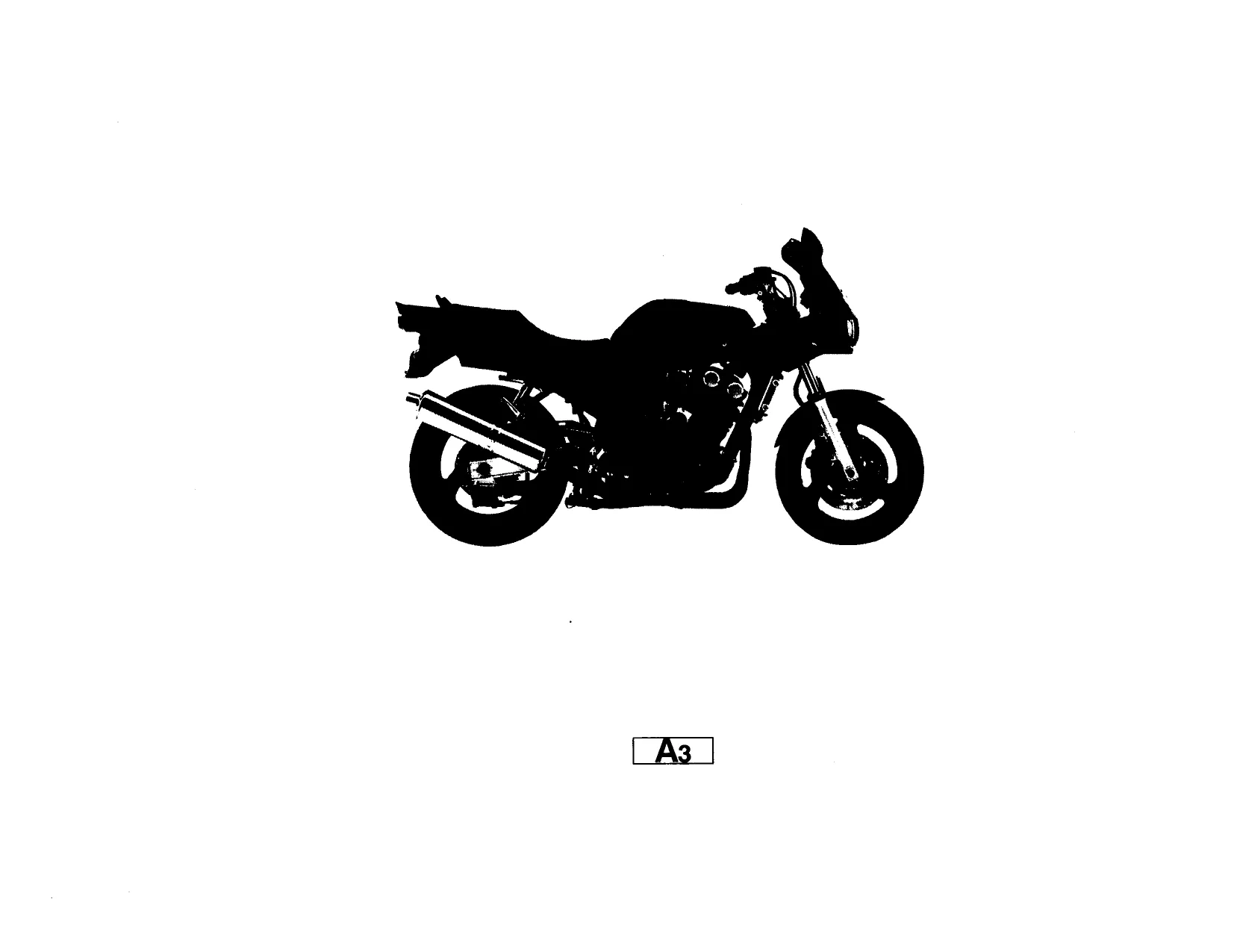

The ZIP contains two printable PDFs: a combined service PDF and a separate parts catalog. The 483-page total includes three original publication covers, five blank pages and one model-illustration page in the catalog.
Engine Overhaul, Chassis Service and Electrical Diagnosis
These selected coverage highlights outline the main workshop areas. Other included topics range from sealed-battery charging charts to headlight-beam adjustment.
-
Engine repair: Step-by-step procedures for engine removal and installation, camshaft timing, cylinder-head and valve work, piston inspection, crankcase separation, clutch service and transmission repair.
-
Carburetor service: Disassembly, component inspection, reassembly, synchronization, fuel-level adjustment and throttle-position-sensor testing and adjustment.
-
Cooling and lubrication: Radiator pressure testing, thermostat inspection, water-pump service, coolant replacement, engine oil-pressure testing and oil-pump inspection.
-
Brakes and chassis: Wheel removal and static balancing, brake-disc and pad inspection, master-cylinder and caliper service, hydraulic bleeding, fork rebuilding, steering-head service and swingarm inspection.
-
Electrical troubleshooting: Circuit-based diagnosis for ignition, starting, charging, lighting, signals, cooling-fan control and fuel-pump operation, plus tachometer-based self-diagnosis.
-

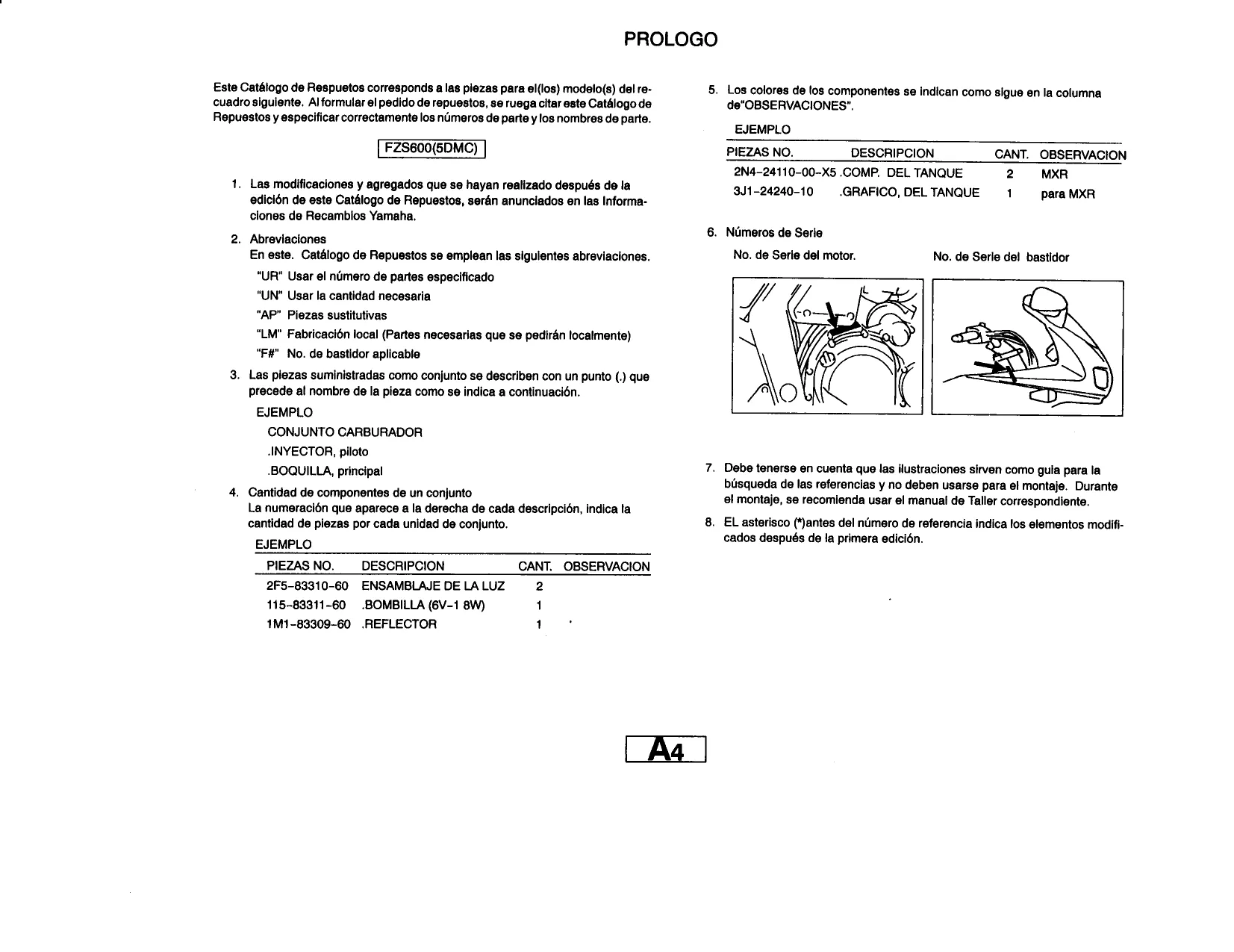

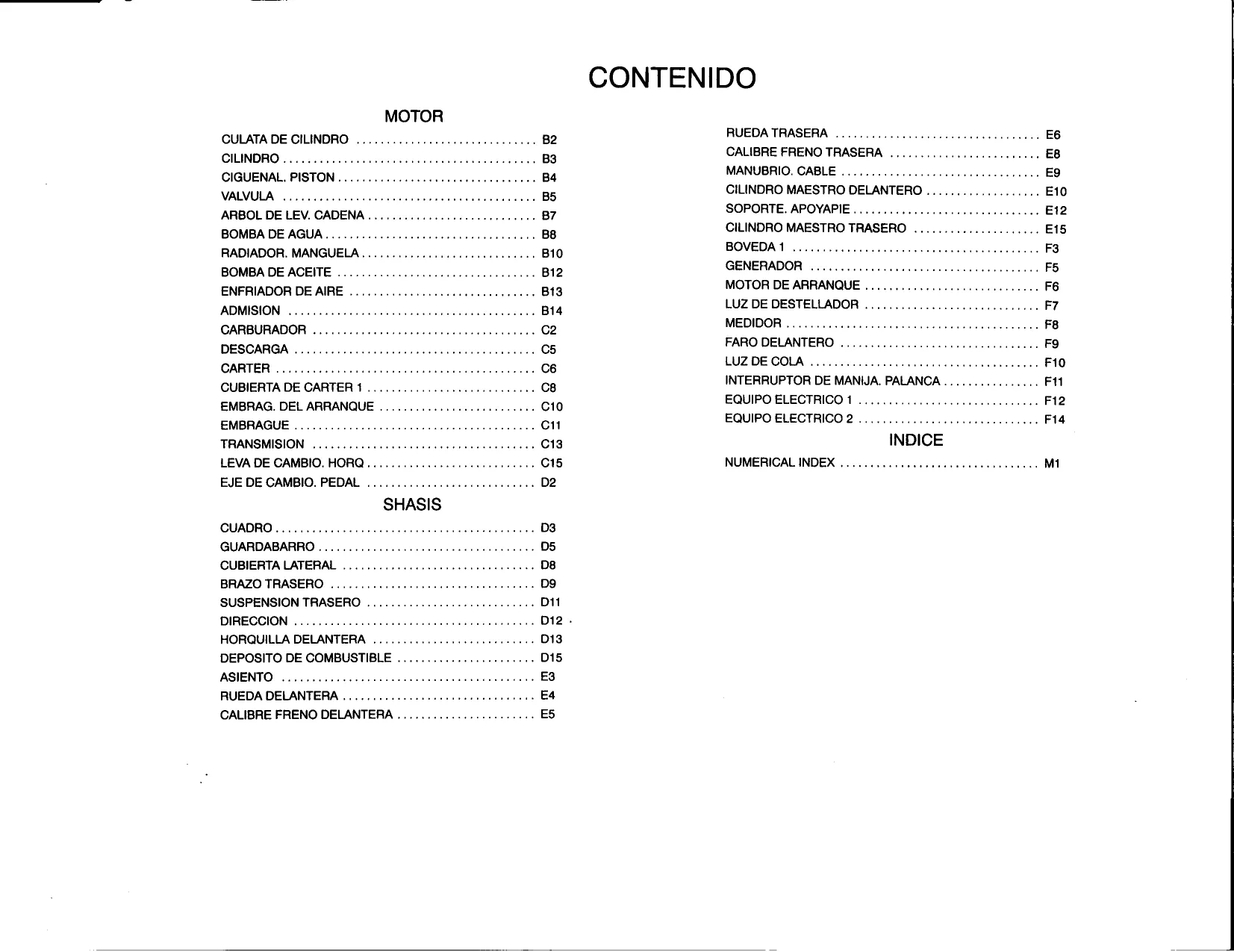

Parts identification: 46 numbered exploded assembly views with Yamaha part numbers, Spanish descriptions, quantities, application remarks and a numerical part-number index.
Yamaha produced the service material primarily for its dealers and qualified mechanics and assumes basic repair knowledge, so it is best suited to technicians or users with equivalent workshop experience and the specified tools.
Internal Engine Inspection and Repair
Removal and disassembly sections open with exploded job diagrams and order charts, followed by inspection, repair, assembly, installation and final-adjustment information. Internal coverage extends to valve-seat and guide work, cam-chain and tensioner checks, connecting-rod bearing selection, crankshaft inspection, clutch measurement and oil-pump assembly.
Transmission inspection addresses shaft runout, gear dogs, gear engagement, shift-drum grooves and shift forks. Periodic procedures also include valve-pad selection, ignition-timing checks, compression testing, clutch-cable adjustment and drive-chain setup.
The manual explains how improper camshaft-cap loosening or uneven tightening can damage the cylinder head, caps and camshafts. It also warns that interchanging crankshaft-journal or connecting-rod big-end bearings can alter bearing clearance and damage the engine.
Carburetor and Cooling-System Checks
Carburetor inspection covers diaphragms, piston valves, needle valves, jets and fuel passages. The throttle-position-sensor section distinguishes resistance testing from angle adjustment using the tachometer display.
Cooling-system diagrams trace the radiator, pump and hose connections, while lubrication diagrams show oil distribution to the crankshaft, camshafts and transmission shafts.
2000 Updates and Suspension Scope
The supplement adds speedometer and clock information, revised specifications and cable routing, updated maintenance data, front-fork procedures, and signal and hazard-circuit checks.
Rear-shock coverage addresses removal, inspection and replacement of the assembly. Yamaha specifically prohibits opening the nitrogen-charged shock absorber.
Brake hydraulics, pressurized cooling-system tests, fuel-system work, suspension disassembly, and internal engine repair require suitable training and equipment.
Electrical Test References and Special Tools
The FZS600 ’98 and FZS600 2000 wiring diagrams accompany system-specific references such as the electric-starting and fuel-pump circuit diagrams. Guided checks connect circuit readings to fault isolation, helping distinguish wiring, switch, relay and component faults before replacement decisions.
Yamaha’s special-tool list provides tool numbers and intended uses. Examples include vacuum gauge 90890-03094 for carburetor synchronization, radiator-cap tester and adapter 90890-01325 / 90890-01352, oil-pressure gauge and adapter 90890-03153 / 90890-03139, and ignition checker 90890-06754.
Related tables supply component-specific tightening torques, fluid and lubricant data, clearances, wear limits and electrical test specifications.

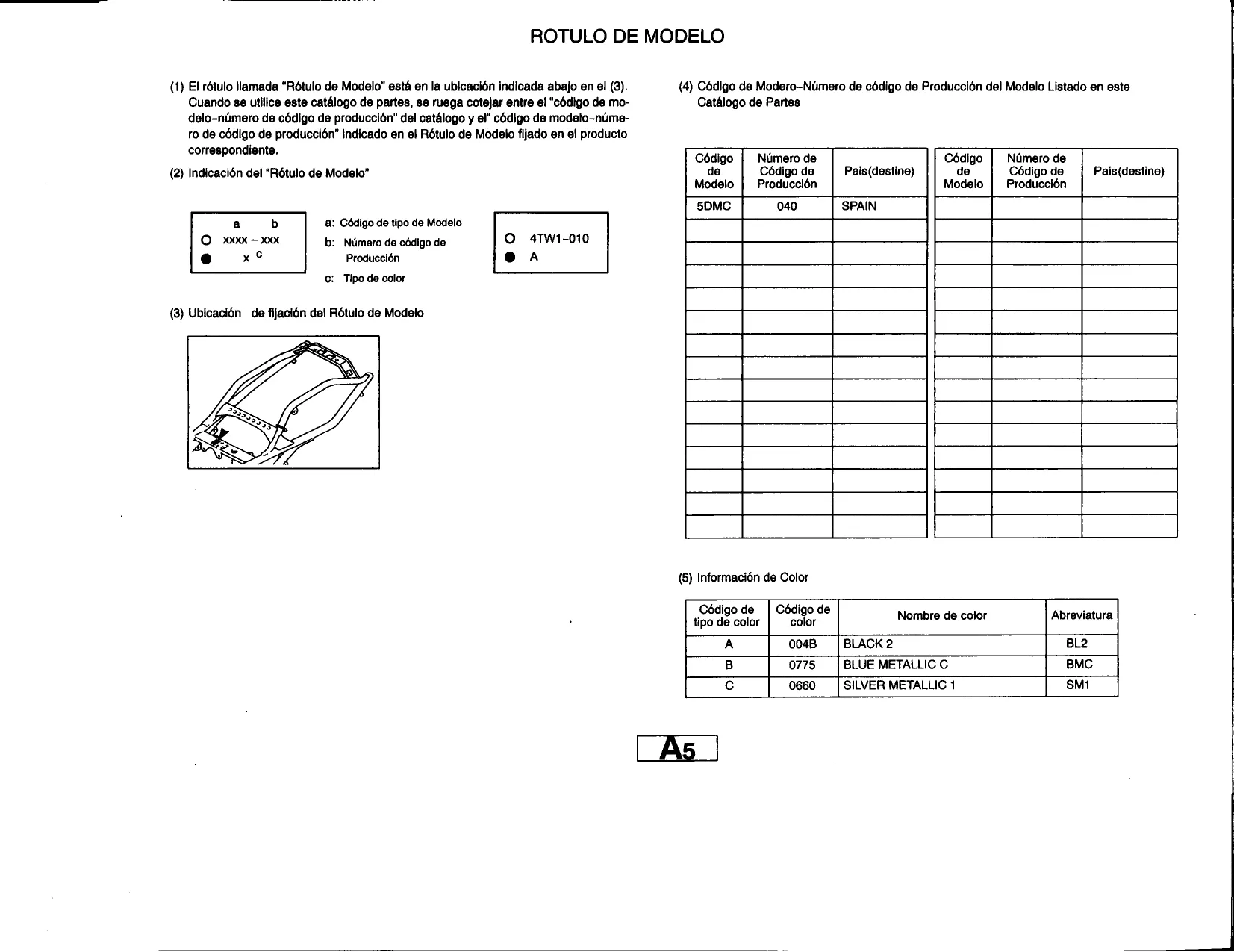

Spanish-Market Parts and Color Identification
The catalog spans engine assemblies and running gear through bodywork, instruments, lighting and switchgear. Its model-label guide identifies three cataloged finishes: Black 2 (BL2), Blue Metallic C (BMC) and Silver Metallic 1 (SM1), supporting selection of color-dependent parts.
Examples of Valve-Clearance and Ignition-Test Data
For the base manual’s valve-clearance inspection, the cold-engine ranges are 0.11–0.20 mm for intake valves and 0.21–0.30 mm for exhaust valves. Valve-pad selection tables accompany the adjustment procedure.
Ignition-coil testing specifies primary resistance of 1.87–2.53 Ω and secondary resistance of 12–18 kΩ, both at 20°C. The diagnostic charts pair these readings with tester connections and fault-isolation decisions.
