Sachs XTC 125 4-Stroke 2003 Repair Manual (P/N P00 677 008 06 02 000)

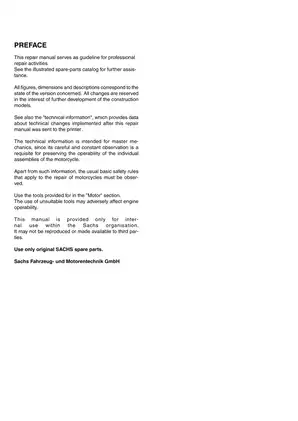

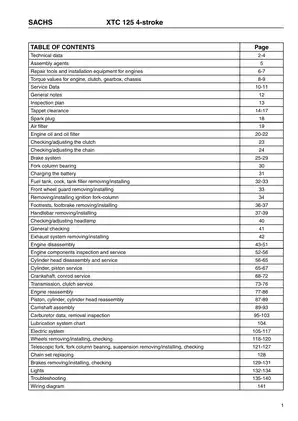

This Sachs workshop manual covers the 2003 XTC 125 4-stroke, types 677 001 and 677 003, with the FX 125 engine. It is the October 2003 edition of Repair Instructions (P/N P00 677 008 06 02 000).

PDF Search and Wiring-Diagram Readability

Text search and diagram labels: The body text is searchable. The PDF has no embedded bookmarks, and labels inside the full wiring diagram are outside the text search. The ignition schematic is clear. Some small wire codes on the full wiring diagram remain hard to read when enlarged.

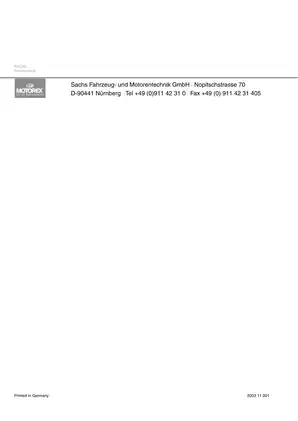

The download is one printable English PDF with 146 pages, including the title page, one publisher-information page, the preface, and five blank or header-only pages.

Engine Rebuilds, Chassis Service, and Electrical Diagnosis

These are selected workshop topics. The manual also covers fuel-tank and fuel-cock removal and installation, plus headlight aiming.

• Engine repair: Engine disassembly and reassembly, crankcase separation, cylinder head and valve service, crankshaft inspection, and camshaft timing.

• Transmission, clutch, and final drive: Internal gearbox service, gearshift-fork inspection, wet multi-plate clutch checks and adjustments, and chain-and-sprocket replacement.

• Carburetor service: Mikuni BS 26 removal, disassembly, needle-valve inspection, float-height adjustment, and reassembly, with operating diagrams and setting data.

• Chassis and brakes: Telescopic fork rebuilds, steering-head bearing replacement, swingarm bearing service, front and rear caliper repair, and brake disc replacement.

• Electrical diagnosis: CDI, pickup coil, and ignition coil tests, starter motor repair, starter relay checks, and a no-spark troubleshooting flowchart.

• Workshop references: Inspection schedule, engine, clutch, gearbox, and chassis torque tables, wear limits, electrical test specifications, an oil-flow chart, and the full wiring diagram.

Sachs prepared this manual for professional repair work. It is suited to mechanics familiar with measuring internal engine components and using the specified workshop tools.

FX 125 Engine and Transmission Repair

Separate intake and exhaust shim charts help select replacement shims when valve clearances are out of specification. Cylinder head service covers valve-guide replacement, valve-seat cutting, and valve-spring inspection. The camshaft section also covers journal wear and runout.

The cylinder and piston section lists oversize piston dimensions and ring markings. The bottom-end section covers connecting-rod wear, balancer-shaft assembly, and bearing replacement. Gear ratios and a transmission assembly view accompany the clutch plate, spring, and release-bearing inspection criteria.

The assembly notes warn that driving the crankshaft into the case with a hammer can misalign it. The primary drive gear nut has a left-hand thread.

Mikuni Carburetor and Engine Lubrication

The fuel-system section identifies the Mikuni BS 26, I.D. 47E3. Its diagrams explain the variable-venturi design and show how the main, slow, starter, and float circuits work. The needle-valve section connects sticking or wear with fuel starvation or overflow.

Lubrication coverage includes the oil cooler, oil-pump removal and installation, sump-filter inspection, and oil-pressure reference data. The oil-flow chart traces delivery to the crankshaft, camshafts, transmission, and clutch.

Fork, Swingarm, and Brake Service

Chassis specifications identify the tubular steel trellis frame. The repair sections cover fork seals and alignment checks, steering-head bearing races, rear shock removal, and swingarm needle bearings.

Wheel service covers bearing replacement, static balancing, and rear-wheel alignment during chain adjustment. The front and rear caliper sections cover piston inspection and seal replacement, with brake-fluid service and final function checks.

Ignition, Starting, and Fault Diagnosis

The no-spark flowchart helps narrow a fault to a connection, switch, or ignition component before replacing the CDI unit. The manual includes a CDI terminal-resistance table and identifies the full wiring diagram as 677 001 05 01 000.

Starter inspection covers the brushes, commutator, and armature. The electrical section also covers maintenance-free battery commissioning and charging. Separate symptom tables address charging faults, poor running, clutch slip, and shifting problems.

Special Tools and Related Publications

The tool reference contains 26 numbered illustrations and ordering information, including crankcase separator K 09920-13120-000 and crankshaft installer K 09910-32812-000. The illustrated spare parts catalog and later Sachs Technical Information bulletins are separate publications.

Sample Valve, Crankshaft, and Carburetor Specs

With the FX 125 engine cold, the tappet clearance range is 0.10–0.20 mm on the intake side and 0.20–0.30 mm on the exhaust side.

The FX 125 cylinder head distortion limit is 0.05 mm. The crankshaft runout limit is 0.08 mm when checked on V-blocks with a dial indicator.

The Mikuni BS 26 float height is 17.1 ± 0.5 mm with the carburetor inverted and the float arm just touching the needle valve.
