Yamaha FZR1000 Service Manual Set, 1989 (P/N 3GM-28197-20)

446 Pages • 1 Printable PDF (English) • Download

$17.75 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Yamaha Models Covered & Key Technical Specifications

Models: FZR1000, FZR1000 (A), FZR1000 (B)

Models & Model Codes:

FZR1000 — 3GM1, 3GM2 (E), 3LE1 (D, S, A), 3LF1 (F), 3LG1 (GB), 3LH1 (CH), 3LJ1 (AUS, NZ)

FZR1000 (A) — Service Information only: 3GM3, 3GM4 (E), 3LE2 (D, S, A), 3LF2 (F), 3LG2 (GB), 3LH2 (CH), 3LJ2 (AUS, NZ)

FZR1000 (B) — Service Information only: 3GM5 (I, B, N, GR, NL), 3GM6 (E), 3GM7 (DK), 3LE3 (D, S, A, SF), 3LF3 (F), 3LG3 (GB), 3LH3 (CH), 3LJ3 (AUS, NZ)

Sub-models / Variants: The (A) and (B) publications contain supplementary service information. The technical specifications below apply to the base service manual.

Model Year: 1989

Serial Numbers: Base manual — frame and engine starting numbers: 3GM-000101, 3GM-007101 (E), 3LE-000101 (D, S, A), 3LF-000101 (F), 3LG-000101 (GB), 3LH-000101 (CH), 3LJ-000101 (frame: NZ; engine: AUS, NZ). Starting VIN: JYA3LJT0 * KA000101 (AUS).

FZR1000 (A) starting numbers: Frame and engine: 3GM-009101, 3LE-009101 (D, S, A), 3LF-007101 (F), 3LG-004101 (GB), 3LH-005101 (CH), 3LJ-002101 (frame: NZ; engine: AUS, NZ). Engine only: 3GM-016101 (E). Starting VINs: JYA3GMS0 * LA016101 (E), JYA3LJT0 * LA002101 (AUS).

FZR1000 (B) starting numbers: Frame and engine: 3GM-018101 (I, B, N, GR, NL), 3GM-026101 (DK), 3LE-016101 (D, S, A, SF), 3LF-015101 (F), 3LG-009101 (GB), 3LH-008101 (CH), 3LJ-004101 (frame: NZ; engine: AUS, NZ). Engine only: 3GM-025101 (E). Starting VINs: JYA3GMS0 * MA025101 (E), JYA3LJT0 * MA004101 (AUS).


  • Engine: Liquid-cooled 4-stroke, DOHC 4-cylinder parallel

  • Displacement: 1,002 cm³ (61.1 cu in)

  • Compression Ratio: 12:1

  • Transmission: 5-speed, constant-mesh

  • Carburetor: BDST38 x 4 (MIKUNI)

  • Front Tire Pressure: 250 kPa (36 psi), cold

  • Rear Tire Pressure: 250 kPa (36 psi) up to 90 kg (198 lb) total load; 290 kPa (42 psi) from 90 kg to maximum load or for high-speed riding, cold. Total load includes rider, passenger, cargo, and accessories.

  • Cooling System Capacity: 2.1 L (2.2 US qt)

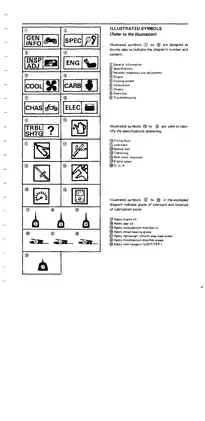

Yamaha Manual Features & Selected Content Preview

Publication Pages
Yamaha FZR1000 ’89 Service Manual — P/N 3GM-28197-20 415
FZR1000 ’89–’90 (W–A) Service Information — P/N 3GM-SE2 6
Additional FZR1000 color wiring diagram 1
FZR1000 ’91 (B) Service Information — P/N 3GM-SE3 24

The base manual supplies the detailed repair procedures. The 1990 (A) and 1991 (B) supplements identify the later variants and provide revised service data. The 1991 supplement also includes updated routing drawings and a color wiring diagram.

Later-model coverage: For complete service procedures, Yamaha specifies microfiche manual 3GM-ME2 for the 1990 (A) or 3GM-ME3 for the 1991 (B), plus Service Information 3GM-SE1 for both. Those publications are sold separately from this set. The 1991 foreword also calls for the 1990 supplement included here.

PDF Bookmarks, Wiring Diagram Detail, and Included Pages

Navigation and diagram detail: Use the embedded bookmarks to jump to the base manual’s chapters, the 1990 supplement, and the additional color wiring diagram. The 1991 supplement has no dedicated bookmark. PDF text search is unavailable. Zoom in to read small component labels, connector details, and wire color codes.

The set comes in one printable, 446-page English PDF, including the original covers, introductory pages, and the separately listed color wiring diagram.


Engine Overhaul, Carburetor Service, and EXUP Diagnosis

These selected workshop topics are part of the coverage. The manual also covers cowling and fuel-tank removal and meter-assembly service.

  • Engine overhaul: Step-by-step engine removal, disassembly, inspection, and reassembly, including crankshaft bearings, the wet multi-disc clutch, transmission, and shift mechanism.
  • Valve train: Clearance checks, replacement-pad selection, valve-guide replacement and reaming, valve-seat refacing and lapping, and camshaft timing.
  • Carburetion: Mikuni BDST38 teardown, diaphragm and jet inspection, float and fuel-level adjustment, carburetor synchronization, and throttle-cable adjustment.
  • Cooling system: Radiator-cap and system pressure tests, thermostat inspection, and water-pump bearing, oil-seal, and mechanical-seal replacement.
  • Brakes and chassis: Caliper and master-cylinder overhaul, hydraulic-clutch repair and bleeding, wheel balancing, front-fork overhaul, and steering and swingarm service.
  • Electrical diagnosis: Tests for ignition, starting, charging, lighting, signals, cooling-fan controls, the fuel pump, and EXUP, with circuit diagrams and symptom charts.

Yamaha wrote the base manual primarily for its dealers and qualified mechanics, assuming a working knowledge of motorcycle repair.

Internal Engine Inspection and Assembly

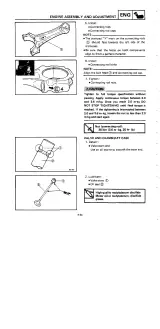

Cylinder-head inspection covers the camshaft case, lifters, valve stems and guides, seats, and springs. The assembly section shows camshaft installation and timing-chain tensioner setup. It also covers the pistons, rings, connecting rods, HY-VO chain, oil pump, primary drive, starter drives, transmission shafts, and crankcase.

Bearing-selection charts and Plastigage checks help match replacement bearings to measured clearances. The manual also provides compression-test data, component torque tables, lubrication requirements, fluid capacities, and wear limits. The Lubrication Diagrams trace oil delivery to internal components.

Tool references include clutch holder YM-91042 / 90890-04086 and the valve-guide remover, installer, and reamer, respectively YM-04116 / 90890-04116, YM-04117 / 90890-04117, and YM-04118 / 90890-04118. Service cautions address valve damage from camshaft rotation during head disassembly and bearing damage from spinning bearings dry with compressed air.

Carburetor and Cooling-System Repair

Regional jetting tables accompany inspection and assembly instructions for the throttle and piston valves, jet needles, needle jets, pilot and main circuits, floats, and needle valves and seats. The 1990 (A) supplement gives revised jetting, fuel-level, and idle-speed specifications.

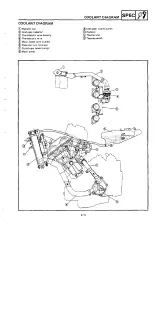

The water-pump section shows the bearing and seals in an exploded view and identifies the installer used for the mechanical seal. The Coolant Diagram traces circulation through the hoses, joints, and thermostat housing.

Chassis Repair and Fork Differences

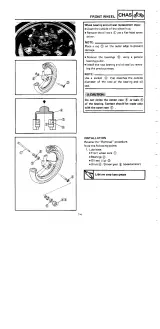

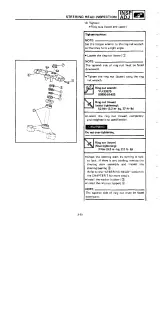

Wheel procedures cover bearing, axle, and rim checks. Brake and clutch work includes cylinder inspection and seal replacement, with DOT 4 fluid recommendations. The manual also covers steering-head and handlebar service, rear-shock removal, swingarm and linkage inspection, and drive-chain and sprocket checks. Factory dimensions, tool references, and wear limits support repair planning and inspection.

The base fork overhaul identifies seal-driver weight YM-33963 / 90890-01367 and adapter YM-08020 / 90890-01374. Its separation cautions explain how excessive force can damage seals and bushings and how bottoming the tubes can damage the oil-lock piece. For the 1991 inverted fork, the supplement provides an exploded view, tool references, and revised oil quantity, grade, and level. The step-by-step overhaul in this PDF applies to the base fork.

Circuit Testing and Fault Finding

The Digital Ignition Control System section explains ignition and fuel-pump control. Starting checks cover the neutral, clutch, and sidestand interlocks. Charging diagnosis covers stator and rotor windings, brushes, and the rectifier/regulator. EXUP coverage pairs cable adjustment and valve inspection with servo operation and potentiometer tests.

The FZR1000 Circuit Diagram, Digital Ignition and EXUP circuit diagrams, and Cable Routing drawings help trace connections. Symptom charts cover hard starting, poor idle or high-speed performance, faulty shifting, clutch slip or drag, abnormal cooling, brake faults, fork leakage, unstable handling, lighting faults, and EXUP problems.

Follow the manual’s warnings and specified test and support conditions for fuel-system work, hot pressurized coolant, brake hydraulics, battery service, and chassis work.

Examples of Valve-Clearance and Carburetor Data

The 1989 manual specifies cold intake-valve clearance of 0.11–0.20 mm, alongside the measurement procedure and replacement-pad selection charts.

The base carburetor specifies a 12–14 mm float height, measured with the float-chamber gasket removed and the needle valve uncompressed. The separate fuel-level check specifies 10.5–11.5 mm above the float-chamber reference line.
