Yamaha FZR1000 Service Manual Set, 1987–1995 (P/N LIT-11616-06-80)

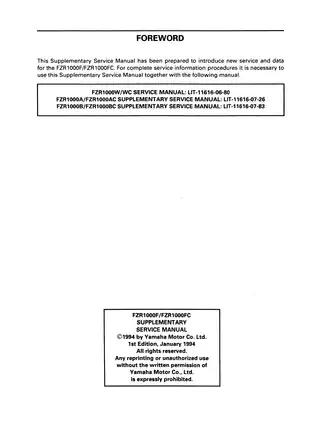

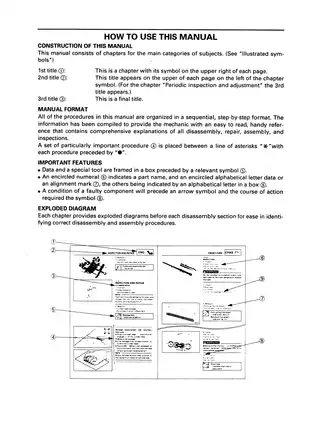

Yamaha structured this material as a full W/WC base manual with model-change supplements. The F/FC foreword requires all three earlier publications for complete service information: unchanged procedures remain in the earlier books, while the supplements supply revised specifications and procedures.

The F/FC supplement contains conflicting Canadian VIN and engine starting numbers between its identification section and specifications. Confirm the Canadian application before selecting model-specific data.

PDF Search, Bookmarks, and Diagram Detail

Search and diagram navigation: PDF text search is not available. Embedded bookmarks provide access to the base manual, supplements, chapters, and many individual procedures. Small wiring labels require zooming, particularly in the F/FC diagram.

The ZIP download contains one printable, English-language PDF with 552 pages, including one additional front cover. The four publication totals above include their own covers and introductory material; the additional front cover is already included in the overall page count.

Engine Overhaul, Chassis Service, and Electrical Diagnosis

These selected coverage highlights summarize the main workshop areas. Additional topics include California canister inspection and emission-hose routing.

• Engine repair: Step-by-step procedures for engine removal, disassembly, inspection, reassembly, adjustment, and installation, including cylinder-head, camshaft, valve, piston, and crankshaft work.

• Clutch and transmission: Mechanical clutch inspection and assembly, internal transmission service, shift-fork and shift-cam inspection, starter-clutch checks, and shift-shaft adjustment.

• Chassis and brakes: Wheel-bearing replacement, static balancing, brake caliper and master-cylinder repair, hydraulic-clutch service and bleeding, fork overhaul, steering-head service, and swingarm and drive-chain inspection.

• Fuel and cooling: Carburetor disassembly and assembly, fuel-level adjustment, synchronization, radiator testing, thermostat inspection, and water-pump bearing and seal replacement.

• Scheduled service: Maintenance charts and procedures for valve-clearance adjustment, compression testing, ignition-timing checks, EXUP-cable adjustment, coolant changes, oil-filter replacement, and battery inspection.

• Electrical fault tracing: Complete W/WC, B, and F/FC wiring diagrams, plus circuit drawings and troubleshooting charts for ignition, starting, charging, lighting, signals, cooling-fan control, fuel-pump operation, EXUP, switches, bulbs, and the meter assembly.

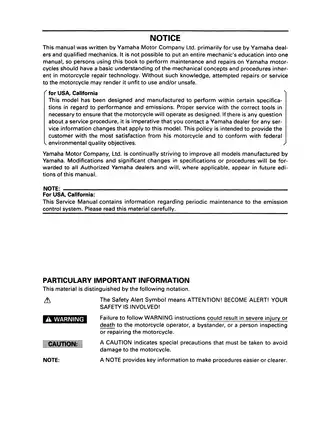

Written primarily for Yamaha dealers and qualified mechanics, these publications assume a basic understanding of motorcycle repair and access to the specified tools and test equipment.

What Changes Between Supplements

A/AC updates: Revised carburetor and chassis specifications accompany front-fork adjustment instructions and recommended front/rear suspension-setting combinations.

B/BC updates: Revised engine, chassis, and electrical data accompany coolant-flow, lubrication, and cable-routing drawings. Dedicated sections address the replacement oil-filter arrangement, sealed MF-battery testing and charging, headlight adjustment, and front-fork overhaul.

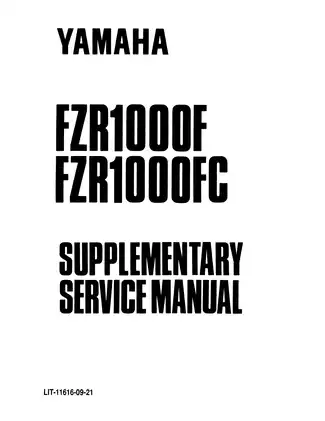

F/FC updates: Revised cowling, seat, side-cover, and fuel-tank removal procedures accompany updated brake and fork chapters. Its starting-system troubleshooting and fuel-pump circuit description should be used with the earlier publications specified in the foreword.

Internal Engine and Drivetrain Work

The base manual distinguishes cylinder-head work with the timing chain disconnected from work performed by removing the camshafts. Valve-pad selection charts, bearing color-code selection, and Plastigage checks support measurement and parts selection during overhaul.

Internal coverage extends to piston rings, crankshaft and connecting-rod clearances, transmission gears and shafts, lubrication components, oil and water pumps, generator removal and installation, and starter drives. The timing-rotor callout 33M-81673-10 identifies the tool used for valve-clearance work.

Carburetors and Cooling-System Testing

Carburetor section views identify the fuel, air, and mixture passages alongside inspection and assembly instructions. Synchronization follows valve-clearance correction; the tool list identifies vacuum gauge YU-08030-A / 90890-03094.

Cooling-system checks distinguish radiator-cap testing from system leak testing and thermostat inspection. Radiator-cap tester YU-24460-01 / 90890-01325 is specified, and the water-pump chapter covers bearing and seal replacement.

Forks, Brakes, and Rear Suspension

Fork tooling changes between versions. B/BC specifies damper-rod holder YM-01445, while F/FC specifies YM-01447 and spring compressor YM-01458; the W/WC tools should not be assumed to fit every version.

Rear-suspension coverage includes shock removal, inspection, replacement, and swingarm/linkage service. The shock cylinder is sealed and must not be opened for an internal rebuild.

Yamaha warns against spinning cleaned bearings with compressed air because it damages their surfaces. In the brake and hydraulic-clutch sections, incompatible fluid can damage seals and cause leakage, while water contamination lowers the fluid’s boiling point.

Support the motorcycle securely and follow the publication’s fuel, cooling-system, brake, and electrical safety instructions throughout service.

Circuit Checks and Fault Isolation

The electrical chapters pair wiring diagrams with component checks and decision charts. Starting-system diagnosis includes the neutral, clutch, and sidestand interlocks; EXUP diagnosis separates valve and cable faults from servo-motor, potentiometer, wiring, and ignitor faults.

The final troubleshooting chapter links starting, running, shifting, clutch, cooling, braking, handling, lighting, and EXUP symptoms to probable causes and the relevant inspection procedures.

Selected Valve-Clearance and Cooling-Test Specifications

For the W/WC engine, cold valve-clearance specifications are 0.11–0.20 mm at the intake and 0.21–0.30 mm at the exhaust, alongside the valve-pad selection information.

The W/WC radiator-cap inspection specifies an opening pressure of 95–125 kPa. The cooling chapter supplies the associated tester setup and inspection procedure.
