2002 Yamaha YN50 / YN50R Scooter Service Manual (P/N 5RN-AE1)

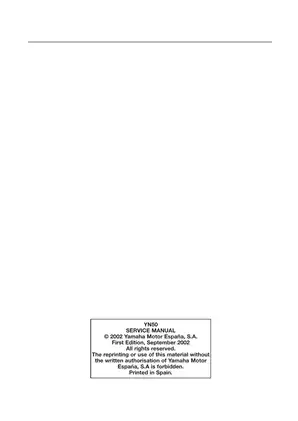

Yamaha Motor España’s YN50 service manual, First Edition September 2002, covers YN50R specifications and EU0, EU1, and Mofa configurations. The cover carries identifier 5RN-AE1.

Searchable Text, Chapter Bookmarks and Wiring Detail

Text access and diagram detail: Text search is available throughout the main service sections, and embedded bookmarks open all eight chapters. Small wiring labels require zooming; labels within diagram images are not all searchable.

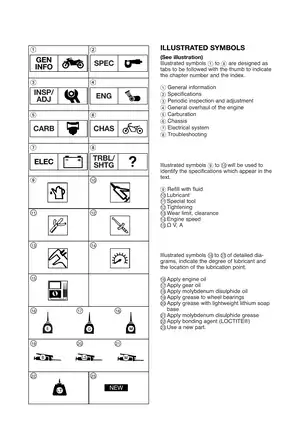

One printable 161-page PDF in English contains the manual, including six front-matter pages, eight chapter-divider pages, and three blank pages.

Engine Overhaul, Variator Service and Electrical Fault Finding

These selected topics are supplemented by headlight beam adjustment and battery-electrolyte inspection procedures.

• Engine repair: Step-by-step procedures for engine removal, crankcase separation, crankshaft installation, cylinder and piston inspection, and engine reassembly.

• Belt drive and transmission: Primary and secondary pulley disassembly, centrifugal-clutch inspection, belt replacement, kickstarter service, and final-reduction gear inspection.

• Carburetion and lubrication: Dell’Orto and Gurtner carburetor service, autochoke testing, fuel-cock checks, reed-valve inspection, and Autolube pump removal and installation.

• Brakes and chassis: Front brake pad and hose replacement, hydraulic bleeding, rear drum-brake service, front-fork overhaul, and steering-bearing replacement.

• Electrical diagnosis: DC-C.D.I. ignition, electric starting, charging, lighting, and signaling tests, supported by circuit diagrams and troubleshooting charts.

• Maintenance references: Periodic inspection schedules, component-specific tightening specifications, wear limits, lubrication information, and cable-routing diagrams.

Written primarily for Yamaha/MBK service agents and qualified mechanics, this manual assumes existing knowledge of mechanical maintenance and repair.

Engine Rebuilding and Drive-System Inspection

The engine chapter follows removal through internal inspection and reassembly. Cylinder taper and eccentricity checks, piston-ring measurements, crankshaft deflection checks, and bearing inspections provide the reference points needed to assess components before reassembly.

Crankshaft/crankcase and primary/secondary pulley exploded views identify component positions and lubrication points. The special-tool references include crankcase separator 90890-01135 and clutch spring compressor 90890-01337, making the equipment requirements visible before teardown.

Transmission coverage extends to the main axle, drive axle, secondary-pulley shaft, bearings, and oil seals. Tightening specifications accompany the cylinder-head, transmission-cover, and steering assemblies.

Carburetors, Reed Valve and Autolube Coverage

Fuel-system documentation covers float-height measurement, jet and needle inspection, autochoke operation, and vacuum-operated fuel-cock testing. Separate specification entries distinguish Dell’Orto and Gurtner carburetors and the EU0, EU1, and Mofa configurations, helping match the service data to the installed equipment.

The carburetor chapter treats float height as factory set and describes inspection and replacement criteria rather than float-tab adjustment. Reed-valve coverage includes sealing checks, stopper-height measurement, and clearance inspection.

Autolube information covers the pump, supply line, O-ring, and drive gears. The engine-installation instructions call for pump bleeding, but the referenced bleeding procedure is missing from this PDF.

Fork, Steering and Brake Service

Front-fork instructions cover disassembly, seal installation, oil-level setup, and reassembly. Steering service includes bearing-race replacement and the staged ring-nut tightening procedure; brake coverage provides disc inspection, rear shoe and drum measurements, and hydraulic-system bleeding.

The steering section warns that an incorrectly seated bearing race can damage the steering tube. The fork chapter also identifies weakening of a bent tube as a risk of attempted straightening.

Always verify torque specs and wear limits before putting any vehicle back into service to ensure rider safety.

Circuit Diagrams and Diagnostic Charts

The no-spark chart separates spark-plug, plug-cap, ignition-coil, pickup-coil, and wiring checks before CDI replacement is considered. This gives mechanics a documented fault-isolation path rather than relying on component substitution alone.

Charging diagnosis addresses battery condition, charging voltage, coil resistance, and regulator/rectifier faults. The Ignition and Starter System and Charging System circuit diagrams support these checks, while Electrical Diagram YN50 provides component references and wire-color codes.

Additional fault-finding sections address the horn, turn signals, brake lights, oil-warning circuit, and speed sensor. Cable-routing drawings show harness, fuel-line, oil-line, and brake-hose placement during reassembly.

Examples of Engine Clearances and Variator Wear Data

Engine inspection data includes a cylinder-head warping limit of 0.02 mm and standard piston-to-cylinder clearance of 0.034–0.047 mm, with a 0.1 mm service limit.

The cylinder-head assembly section gives a 1.4 m·kg tightening specification alongside its staged, crisscross tightening instructions. Primary-pulley inspection lists a standard roller diameter of 15.0 mm and a 14.5 mm wear limit.
