2001 Yamaha YZF-R1P / YZF-R1PC Service Manual PDF (P/N LIT-11616-15-47)

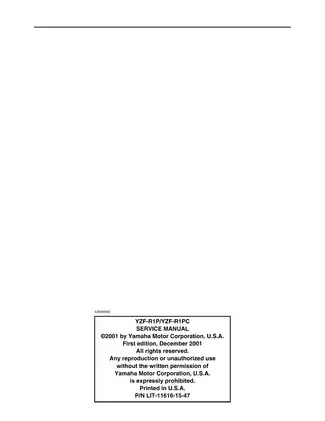

This 2001 Yamaha YZF-R1P/YZF-R1PC service manual, P/N LIT-11616-15-47, is the first edition dated December 2001. The cover also carries publication number 5PW-28197-10. It covers the 5PW4 USA, 5PW5 California, and 5PW6 Canada configurations.

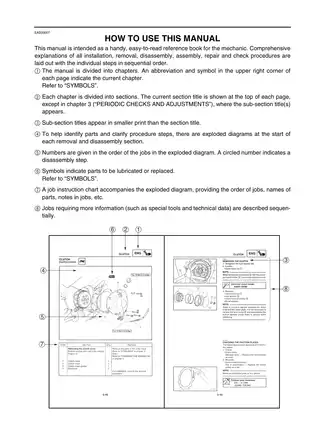

Searchable Text, Bookmarks and Wiring Detail

Text search and diagram detail: Searchable text and internal bookmarks provide access to chapters and major service sections. Small connector labels and wire codes in the detailed electrical diagrams require zooming; the full-color wiring chart also benefits from enlargement.

One printable English-language PDF contains 437 pages: 19 opening pages, including the front cover and two blank pages; 415 pages across nine technical chapters; two wiring-diagram and legend pages; and one back cover.

Engine Overhaul, Fuel Injection and Chassis Service

The following selected service topics show the manual’s scope rather than its complete contents. Further subjects include wheel balancing and instrument-display settings.

• Periodic maintenance: Emission-control and general maintenance charts, valve-clearance adjustment, throttle-body synchronization, compression testing, and EXUP cable adjustment.

• Engine and transmission: Engine removal, cylinder-head and valve service, crankcase separation, piston and crankshaft inspection, clutch repair, and transmission disassembly.

• Fuel injection: ECU fault-code diagnosis, fail-safe tables, sensor and actuator checks, injector inspection, fuel-pressure testing, and throttle-position sensor adjustment.

• Brakes and chassis: Hydraulic brake bleeding, master-cylinder and caliper service, front-fork overhaul, steering-head bearing replacement, and swingarm inspection.

• Cooling and lubrication: Radiator-cap testing, thermostat checks, water-pump seal replacement, oil-cooler service, and oil-pump clearance inspection.

• Electrical troubleshooting: Ignition, starting, charging, lighting, and signaling circuits, with wiring diagrams, connector views, component tests, and starter-motor repair.

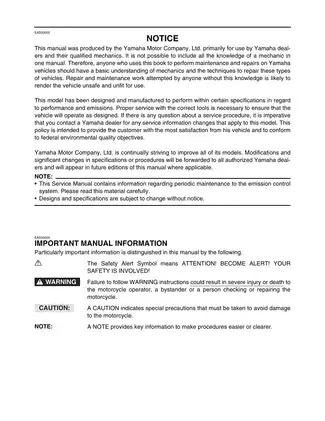

Written primarily for Yamaha dealers and qualified mechanics, this manual assumes an understanding of mechanical repair and access to the tools required for the work.

Valve Service and Internal Engine Repair

Step-by-step procedures cover valve adjustment and internal engine work, supported by valve-pad selection tables, exploded assemblies, and component inspection limits. Crankshaft and connecting-rod sections explain Plastigauge checks and bearing selection using identification marks and color codes.

The transmission chapter goes beyond external adjustment to main-axle and drive-axle disassembly, gear inspection, shift-fork checks, and shift-drum assessment. Clutch coverage includes friction-plate thickness, plate warpage, housing wear, and starter-clutch operation.

Component-specific torque tables identify lubrication and locking-agent requirements. The general clean, dry-thread convention applies only where no exception is specified. Uneven camshaft-cap tightening can damage the cylinder head, caps, and camshafts.

FI Fault Codes, TPS Checks and EXUP Diagnosis

For workshop diagnosis, the ECU fail-safe tables and sensor test specifications connect a displayed fault with the relevant wiring checks, component tests, and reinstatement method. The troubleshooting chart also addresses irregular running without an illuminated engine warning light.

Meter-based diagnostic mode provides sensor readings and actuator tests. Throttle-position sensor adjustment has a separate voltage-check procedure, while fuel-pump and regulator testing uses pressure and vacuum measurements.

EXUP coverage includes cable adjustment, servo resistance checks, and motor testing. The manual warns that prolonged battery-powered testing can damage the EXUP servomotor.

The emissions material explains three-way catalytic converter operation and covers air-induction reed-valve and solenoid checks. California-specific hose routing identifies the evaporative canister and rollover valve connections.

Forks, Brakes and Rear Suspension

Front-fork instructions cover disassembly, damper inspection, seal installation, and reassembly, with identified tools such as fork spring compressor YM-01441 and seal driver YM-01442. Brake sections address piston and seal inspection as well as hydraulic bleeding.

Steering-head and swingarm procedures include bearing inspection and installation. Rear-shock coverage concerns removal, inspection, replacement, and installation of the assembly; the manual expressly warns against opening the pressurized shock absorber or gas cylinder.

Fuel-system, brake, and lifting work require the precautions described in the manual and the appropriate mechanical training.

Cooling Circuits and Electrical Fault Tracing

Water-pump service covers the impeller, mechanical seal, oil seal, and bearing within the combined oil/water-pump assembly. Cooling-system diagrams and the engine oil lubrication chart show the associated flow paths.

Electrical troubleshooting separates starting-interlock faults from starter-motor problems and includes charging-system checks. The fuel-injection wiring diagram, starting-circuit diagram, and air-induction system diagrams provide system-specific references alongside the overall wiring chart.

Selected Engine Clearances, Fuel Pressure and Brake Dimensions

For valve service, the specified cold intake clearance is 0.11–0.20 mm. Internal engine inspection includes a standard crankshaft-journal-to-bearing clearance of 0.029–0.053 mm, supported by the bearing measurement and selection procedures.

The fuel-system explanation specifies regulated pressure at 284 kPa above intake-manifold pressure, distinguishing this pressure difference from an unqualified pump-output figure.

For the front dual-disc brakes, the chassis specifications list a disc diameter of 298 mm alongside separate thickness and deflection limits used during inspection.
