2008 Husqvarna Viking Designer Diamond Sewing & Embroidery Machine User's Guide (P/N 413 24 34-26B)

This User's Guide covers the 2008 Husqvarna Viking Designer Diamond sewing and embroidery machine, document code 413 24 34-26B. It explains operation, routine care, and troubleshooting.

• Machine setup: Main and auxiliary spool pin threading, bobbin winding and insertion, needle replacement, and presser foot changes.

• Sewing adjustments: Exclusive SEWING ADVISOR, EXCLUSIVE SENSOR SYSTEM settings, stitch balance, buttonholes, and Free-Motion Floating and Spring Action modes.

• Embroidery preparation: BE17 unit attachment and removal, embroidery arm calibration, hooping, and needle, thread, and stabilizer selection with EMBROIDERY ADVISOR.

• Design editing and stitch-out: Design Shaping, Resize, Design Positioning, Color Block Sort and Merge, Smart Save, and resuming interrupted embroidery.

• Screen and files: Ultimate Interactive Screen navigation, touch calibration, File Manager, USB transfers, memory defragmentation, and 4D Embroidery connection instructions.

• Care and troubleshooting: Needle plate removal and replacement, bobbin-area cleaning, and problem/cause/remedy tables for sewing and embroidery faults.

It is suited to owners learning this machine's controls and sewing setup, with illustrated threading instructions and fabric-specific sewing examples.

Operational Overview and Machine Setup

The setup chapter distinguishes horizontal and vertical spool positions and explains bobbin winding through the needle or while sewing. Needle replacement uses the multipurpose tool; the built-in needle threader has its own operating instructions.

Labeled machine and embroidery hoop overviews, threading drawings, and presser foot tables identify the controls and accessories used throughout the guide.

Sewing Adjustments and Embroidery Positioning

Stitch charts cover utility, buttonhole, heirloom, quilting, and appliqué selections. The sewing sections explain thread tension, Sensor Foot Pressure, and stitch balance, including the difference between temporary adjustments and settings saved in My Stitches.

The free-motion section distinguishes Floating from Spring Action settings and warns that using the optional Open Toe Free-Motion Spring foot in Floating mode can damage the foot.

Design Positioning instructions explain how locking and matching points align new embroidery with an existing stitched design. This helps when joining motifs or matching embroidery to patterned fabric. Scale and Resize are distinguished by whether the stitch count changes.

The embroidery setup section warns that calibration with the hoop attached can damage the needle, presser foot, hoop, or embroidery unit.

USB Connections and File Management

USB connection, driver installation, and machine update instructions cover the 4D Embroidery system for Windows XP and Windows Vista; the XP driver instructions specify 32-bit systems. The software CD, embroidery design files, and separate Sampler Book discussed in the guide are not included in this PDF.

File Manager instructions cover organizing internal and USB storage, checking available memory, and handling full-memory or invalid-file-type messages.

Bobbin-Area Maintenance and Troubleshooting

Maintenance instructions cover cleaning the feed teeth and beneath the bobbin case, including the area around the Selective Thread Cutter knife. The machine does not require routine oiling.

The troubleshooting tables connect symptoms such as irregular feeding, thread breakage, poor stitch formation, and distorted embroidery with settings, threading, or cleaning checks. Internal electrical and mechanical repair procedures are outside this guide's scope; unresolved faults are referred to an authorized dealer.

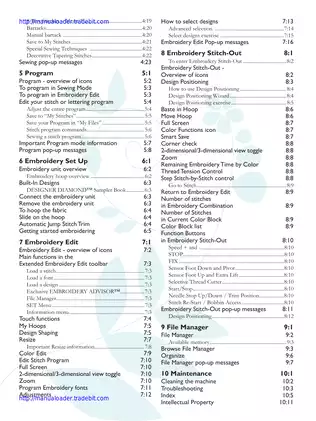

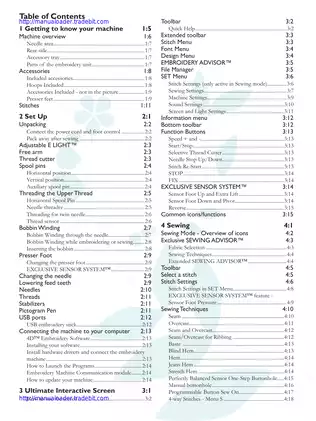

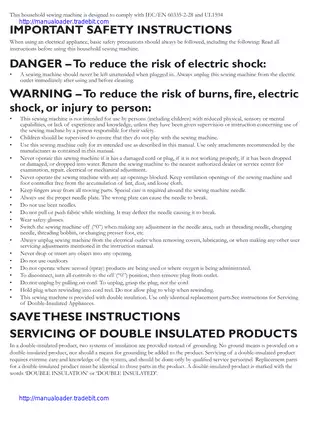

The safety section requires unplugging before cleaning and reserves servicing of the double-insulated electrical system for qualified personnel.

Selected Stitch Limits and Defragmentation Timing

These are a few of the operating limits and maintenance timings covered in the guide. Straight stitching offers up to 29 needle positions. Stitch programs can be approximately 500 mm (20 inches) long and contain up to 99 stitches.

Memory defragmentation can take up to 45 minutes and is described as an occasional task prompted by the machine.

PDF Search, Navigation, and Page Count

Text search and navigation: The main text is searchable; text within embedded screen images may not be found by search. There are no embedded PDF bookmarks. Added text overlays partly obscure some headings.

One printable 134-page PDF in English, including two cover pages and one otherwise blank page, all already counted in the total. The other 131 pages contain the instructions, reference sections, and front matter.
