2003–2007 Ducati Multistrada 1000 DS Service & Repair Manual (P/N 914.7.043.1A)

This Ducati workshop manual for the 2003–2007 Multistrada 1000 DS covers chassis, powertrain, and electrical service, with European and U.S. configuration details. The 08-03 edition includes scheduled maintenance, diagnostic procedures, and internal engine repair.

• Engine repair: Engine removal, cylinder-head and piston inspection, desmodromic valve adjustment, timing-belt installation, and crankcase disassembly and reassembly.

• Clutch and transmission: Dry-clutch inspection, primary-drive service, gearbox shaft disassembly, selector inspection, and crankshaft and transmission shimming.

• Fuel and ignition: MATHESIS diagnostics, throttle-position sensor zero setting, airflow balancing, stepper-motor service, and fuel-tank and injector removal.

• Suspension and steering: Showa front-fork overhaul, single-sided swingarm service, suspension-linkage inspection, steering-bearing adjustment, and frame alignment references.

• Brake service: Brembo brake removal, pad and disc inspection, hydraulic bleeding, and component replacement within the manual’s stated service limits.

• Electrical troubleshooting: Wiring diagrams, charging and starting tests, instrument-panel fault codes, CAN communication, and immobilizer and transponder programming.

Written for Ducati service-center personnel and experienced workshop technicians, this manual assumes established repair skills and access to the specified diagnostic equipment and service tools.

Desmodromic Valve Gear and Engine Rebuilds

The engine chapters distinguish opening- and closing-rocker clearances and explain shim measurement, valve-guide inspection, camshaft checks, and timing verification. Belt-tension procedures use the MATHESIS tester with an optical reader and dedicated crankshaft and camshaft locking tools.

The timing section warns that reused self-locking pulley nuts can loosen and cause serious engine damage. This is a component-specific assembly precaution, separate from the belt-frequency specification.

Bottom-end work: Cylinder and piston inspection extends to ring clearances and component matching. Crankcase procedures cover main bearings, connecting-rod bearing selection, and separate shimming calculations for the crankshaft, gearbox shafts, and selector drum.

Dry-clutch coverage includes friction plates, the housing, pressure plate, and springs. The lubrication system diagram accompanies oil-pump overhaul, oil-cooler inspection, and oil-breather service; engine and chassis torque tables provide the related assembly references.

MATHESIS, Fuel Delivery and Ignition

Throttle-body adjustment combines sensor zero setting, airflow balancing, and idle-mixture checks. The manual identifies MATHESIS tester 88765.1363A, a vacuum gauge, and a CO tester for this work. Some injection-component tests also refer to the tester’s separate operating instructions.

Replacement setup: The throttle-position learning procedure applies after replacement of the throttle body, position sensor, or engine control unit. That distinction helps a technician recognize when mechanical installation must be followed by electronic setup.

Fuel-system procedures cover the tank assembly, pump flange, fuel-level sensor, filters, and breather plumbing. Exhaust coverage includes catalytic-converter precautions and the canister filter fitted to U.S. versions, with hose-routing illustrations.

Fork, Swingarm and Brake Service

Front-fork overhaul includes cartridge disassembly, bushing inspection, seal replacement, and reassembly. The assembly notes identify handling errors that can damage the fork seals and guide bushings.

The single-sided swingarm chapter covers pivot inspection, bearing service, eccentric-hub removal, and chain adjustment. The eccentric hub is replaced as a complete assembly; internal disassembly is prohibited. Rear suspension coverage includes shock removal and linkage overhaul, but the maintenance-free shock absorber must not be dismantled.

Brake service limits: The manual excludes internal brake-caliper overhaul and internal rear master-cylinder repair. It specifies permitted replacement components instead. These restrictions matter because incorrect overhaul can compromise braking safety.

Steering-bearing procedures and the frame size and front subframe size diagrams support chassis inspection and alignment checks.

Wiring, Instruments and Immobilizer Diagnosis

The main wiring diagrams and fuel injection-ignition system diagram identify connections, fuse circuits, and wire colors. Harness-routing views show how the wiring is arranged on the frame.

Charging-system tests, starter-contactor checks, and the safety devices function table support electrical fault tracing. The CAN section explains communication between the instrument panel and engine control unit, alongside the instrument panel’s diagnostic-code functions.

Immobilizer coverage explains the red programming key, black operating keys, and programming verification. Its LED fault indications help distinguish a transponder problem from an antenna or communication-line fault when the engine will not start.

A Preview of Valve, Belt and Compression Specifications

These examples are a small selection of the adjustment and diagnostic figures in the manual.

Valve gear and belts: Nominal opening-rocker clearance is 0.10–0.15 mm for both intake and exhaust valves, measured with the valve at rest. The MATHESIS optical-reader procedure specifies a timing-belt frequency of 142 Hz ± 5 Hz for each cylinder.

Compression testing: With the engine warmed and throttles fully open, standard cylinder compression is 11–12 bar. The manual lists a minimum of 10 bar and a maximum difference of 2 bar between cylinders.

PDF Search, Diagram Viewing and Page Count

Text search and navigation: Searchable PDF text is available, but there are no embedded PDF bookmarks. Small connector numbers and wire-color labels in the main wiring and injection diagrams are readable when enlarged.

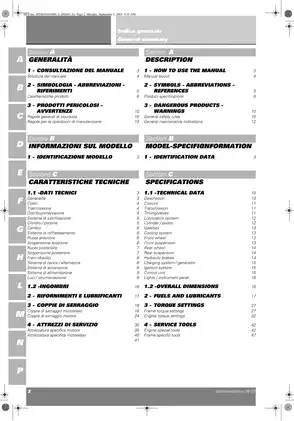

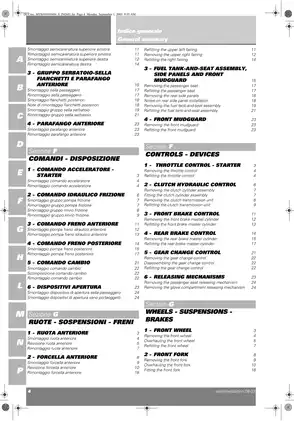

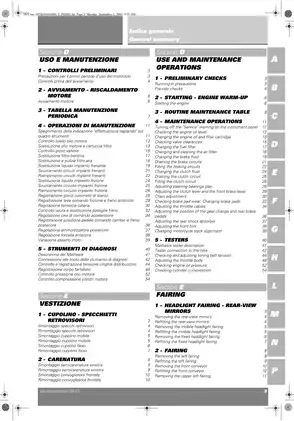

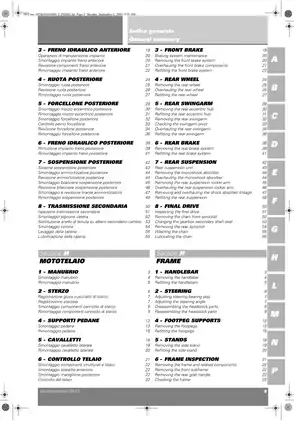

Supplied as one printable, 592-page PDF in English and Italian. The total includes the contents pages, subject index, and five blank divider pages; no additional pages need to be added.
