Ducati Monster S2R 1000 (2006–2008) Workshop Manual & Parts Catalog Collection

Use the workshop manual for service and repair procedures and the parts catalogs to match components to the model year and market. The EU catalogs are multilingual and include English. The USA catalogs are in English.

Model-year coverage: The workshop procedures are for the 2006 model. The 2007 and 2008 publications cover parts identification.

Searchable Text and Wiring Detail

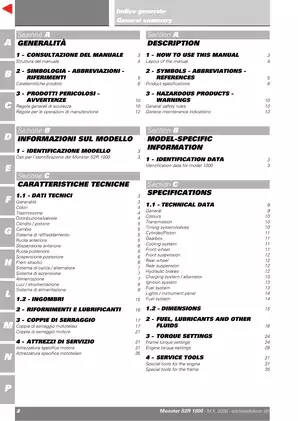

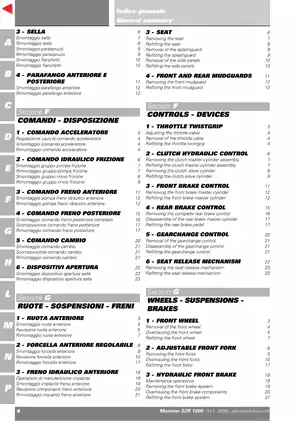

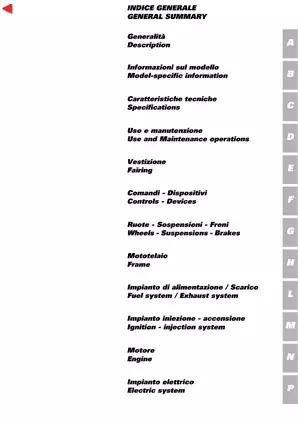

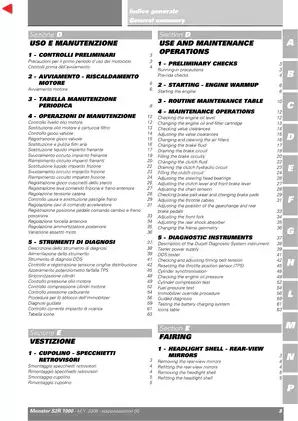

Search and navigation: All seven PDFs have searchable text. The workshop manual has Italian-language bookmarks for chapters, procedures, and the subject index. The parts catalogs have numerical part indexes and no embedded bookmarks. Small pin numbers and wire-color codes in the main wiring diagram are legible when zoomed in.

The RAR download contains seven printable PDFs totaling 1,319 pages. That total includes the cover pages, seven pages with only a navigation symbol in the workshop manual, and two blank pages in each parts catalog.

1000DS Overhaul, DDS Tests, and Chassis Service

These are selected workshop topics. The manual also covers fuel-tank flange replacement and oil-pump overhaul.

• Engine repair: Engine removal, cylinder-head overhaul, crankcase separation, crankshaft inspection, and connecting-rod bearing selection for the air-cooled 1000DS twin-spark engine.

• Desmodromic valve gear: Opening and closing shim checks, camshaft timing, and DDS-based timing-belt frequency measurement and adjustment.

• Clutch and transmission: Dry-clutch pack and basket inspection, primary-drive backlash checks, gear-selector adjustment, and six-speed gearbox shaft shimming.

• DDS diagnostics: Fault retrieval, live sensor readings, actuator tests, throttle position sensor reset, cylinder synchronization, and fuel pressure, oil pressure, and compression tests.

• Chassis repair: Adjustable front-fork overhaul, steering-head bearing replacement, single-sided swingarm pivot inspection and shimming, plus rear suspension linkage and ride-height adjustment.

• Electrical fault tracing: Main wiring diagram, harness-routing drawings, starting-interlock checks, charging-system tests, and immobilizer key programming.

Ducati wrote the workshop manual for technical staff at its authorized service centers and specifies that the procedures require experienced technicians.

Desmodromic Timing and Engine Rebuild

The engine section distinguishes valve-clearance checking limits from adjustment specifications. Rebuild coverage extends to valve guides and seats, piston-to-cylinder matching, main-bearing preload, and selector-drum endplay. Cylinder-head and crankcase assembly procedures reference component-specific torque tables and fastener preparation requirements.

The lubrication diagram traces oil delivery through the cooler, filters, and engine. Tool references such as valve-lift gauge 88765.1058 and cylinder-head nut wrench 88713.2676 show what equipment a job requires before disassembly. The timing section warns that reused self-locking pulley ring nuts can loosen and cause serious engine damage.

Marelli Injection and Starting Interlocks

The manual covers the Marelli IAW 5AM2 injection and ignition system. The starting-interlock table shows how neutral, clutch, and side-stand inputs affect starter operation, helping isolate a no-crank condition. The electrical section also covers multimeter continuity checks and immobilizer fault indications.

DDS-guided tests require the Ducati Diagnostic System and the relevant test accessories. The charging section warns that disconnecting the battery with the engine running can permanently damage the regulator.

Fuel Delivery, Brakes, and Clutch Hydraulics

The fuel-system diagram maps the pump, filter, pressure regulator, and delivery circuit. Throttle-body and air-intake coverage includes injectors and stepper-motor operation. Separate emissions sections cover the EU catalytic converter and the USA evaporative-emissions canister.

Brake and clutch coverage includes hose-routing drawings, fluid replacement and bleeding, and component removal and installation. The brake section gives disc and pad inspection limits. Follow Ducati’s safety procedures around pressurized fuel lines and live electrical circuits.

Trellis Frame, Rear Hub, and Parts Identification

The frame section provides dimensional checks and a structural disassembly flowchart. The rear eccentric hub is serviced by removing and replacing the complete assembly. Routine maintenance tables, fluid capacities, wear limits, and electrical test specifications round out the service reference.

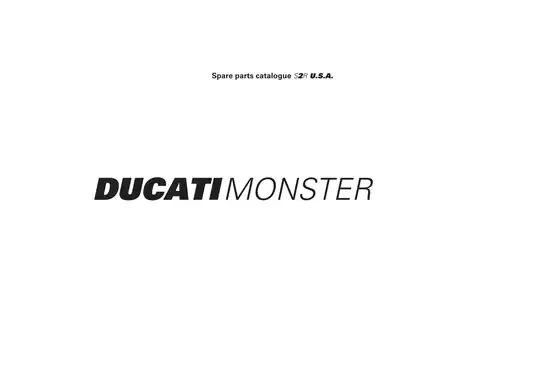

The parts catalogs pair exploded views with part codes, quantities, and applicability notes. Drawing 011 identifies which alternator-cover parts apply on either side of the engine-number break.

Oil Pressure and Compression Test Examples

For the warm-engine oil pressure test, Ducati specifies an oil temperature of at least 80°C. Pressure must exceed 0.8 bar at 1,100–1,300 rpm and 4 bar at 3,500–4,000 rpm. The manual gives 6.0 bar as the upper limit.

For the DDS compression test with the engine warmed up and the throttles fully open, the manual specifies a minimum of 10 bar per cylinder and a maximum difference of 2 bar between cylinders.
