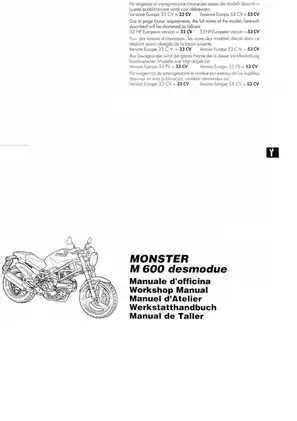

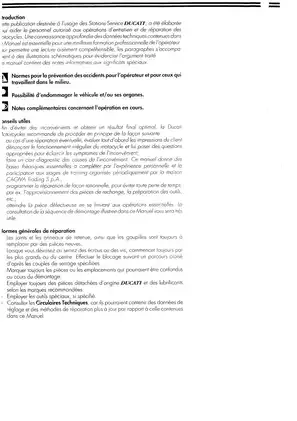

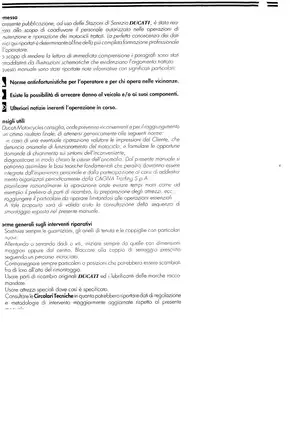

1994–2002 Ducati Monster M600 Desmodue Workshop Manual

Ducati’s workshop manual for the 1994–2002 Monster M600 Desmodue covers the 33 CV and 53 CV European variants, with maintenance, repair, and adjustment information for the engine and trellis chassis.

• Engine repair: Engine removal, cylinder-head disassembly, piston and crankshaft inspection, crankcase separation, and internal reassembly.

• Desmodromic timing: Valve-clearance checks, shim selection, timing-belt replacement and tensioning, camshaft timing, and ignition-advance checks.

• Fuel system: Mikuni BDST calibration data, carburetor synchronization, idle-mixture adjustment, component inspection, and circuit-based troubleshooting.

• Clutch and gearbox: Hydraulic clutch service, plate inspection, gearbox shaft shimming, selector-fork checks, and shift-linkage adjustment.

• Suspension and brakes: Marzocchi fork and Boge shock overhaul, wheel-bearing work, Brembo brake-pad replacement, disc inspection, and hydraulic bleeding.

• Electrical diagnosis: Charging-system tests, Kokusan ignition checks, switch and relay testing, component circuit diagrams, and harness-routing drawings.

Written for Ducati workshop personnel, this manual calls for mechanical experience and the specified service tools.

Engine Overhaul and Desmodromic Timing

The overhaul chapters cover cylinder and piston matching, valve guides and seats, rocker-arm inspection, crankshaft checks, and main-bearing preload.

The desmodromic timing-system illustration and lubrication-circuit schematic accompany the mechanical data. Routine maintenance schedules and component-specific torque tables support servicing and reassembly.

Belt procedures specify dynamometric tensioner 88713.0748. The manual warns that reused self-locking timing-pulley nuts can loosen and cause serious engine damage.

Clutch, Gearbox, and VIN Differences

Clutch exploded views show the release mechanism and disc assembly. Gearbox procedures cover shaft-endplay calculations, selector-drum wear checks, and centering the shift mechanism.

Separate transmission specifications apply up to V.I.N. 002961 and from V.I.N. 002962. The distinctions in primary drive, final drive, and chain data help match the installed drivetrain before selecting replacement parts or adjustment data.

Mikuni Carburetor Tuning and Fault Tracing

The adjustment section combines mercury-column vacuum readings with exhaust-gas analysis and explains why synchronization and idle-mixture adjustments affect one another. The BDST calibration sheet identifies jets, needle, and throttle-slide components.

Carburetor cutaways explain float, pilot, transition, main-metering, and starter circuits. General theory compares slide-type and constant-velocity designs, while diagnostic notes connect float-level and diaphragm faults with poor starting or hesitation.

Suspension, Brakes, and Frame

Marzocchi fork instructions cover seal replacement and internal reassembly. Boge shock overhaul includes nitrogen charging and the required service fixtures; rear linkage, swingarm pivots, wheel hubs, and steering-bearing replacement are also covered.

Brembo brake sections explain disc wear checks, pad replacement, fluid draining, and bleeding. Dimensioned frame drawings support chassis checks. Follow the manual’s pressure-release and support precautions for shock and chassis work.

Electrical Tests and Diagram Coverage

Test charts separate generator and regulator checks, with connector diagrams for ignition components, switches, and dashboard lamps. Battery specifications and fuse ratings accompany the electrical information.

The regulator section warns that disconnecting the battery while the engine is running can destroy the regulator.

Diagram limitation: Component wiring/test diagrams and harness-routing drawings are included. The full motorcycle wiring diagram and ignition-system schematic are missing from this file.

A Preview of Valve-Clearance and Fork-Oil Data

These examples represent a small selection of the manual’s adjustment data.

For a cold engine, intake opening-rocker clearance is 0.10–0.12 mm; intake and exhaust closing-rocker clearance is 0.03–0.05 mm. Opening and closing clearances are specified separately.

Each Marzocchi fork leg has a nominal oil quantity of 380 cc. The overhaul procedure also specifies a 90 mm air gap below the top of the outer tube, with the leg fully compressed and the spring removed. Retained oil can make refilling by volume alone inaccurate.

Bookmarks, Readability, and PDF Contents

Navigation and legibility: PDF text search is unavailable; section bookmarks are present, with generic filenames for most individual pages. Small connector labels need zooming, some page-edge text is clipped, and some pages are repeated or out of order.

One printable 346-page PDF contains English, Italian, French, German, and Spanish text. The total includes one added cover page and 345 pages of manual content, including repeated pages.
