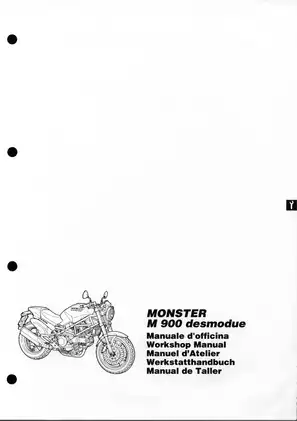

1993–2003 Ducati Monster M900 desmodue Carburetor Workshop Manual (P/N 914.7.012.1A)

Ducati’s workshop manual for the 1993–2003 Monster M900 desmodue covers the carbureted, air-cooled configuration, with engine repair, chassis service, electrical testing, and market-specific carburetor calibration data.

PDF Format and Navigation

Text search and wiring detail: PDF text search is not available, and there are no embedded PDF bookmarks. Small wire-color codes and connector labels in the main wiring diagram require zooming; the separate component legend and color-code key support circuit tracing.

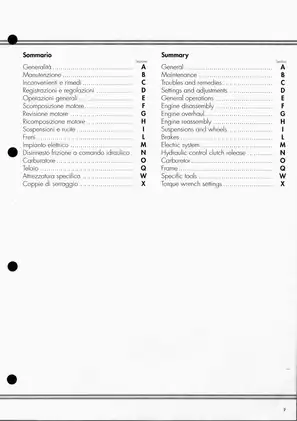

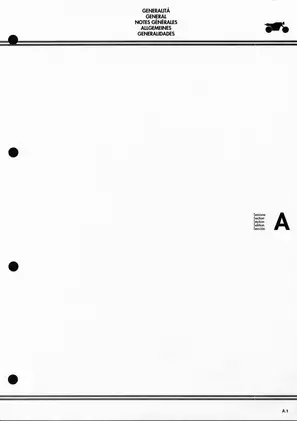

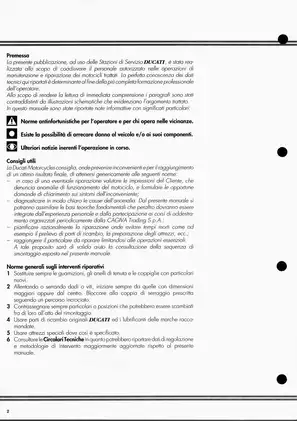

One printable PDF contains 271 pages, including the front and rear covers. The publication contains English, Italian, French, German, and Spanish text, although some sections are presented only in Italian.

Desmo Engine, Carburetor, and Chassis Work

These are selected workshop topics. The manual also includes headlight aiming and checks for dashboard indicator lamps.

• Engine overhaul: Step-by-step procedures for engine removal, crankcase separation, cylinder-head disassembly, crankshaft inspection, and engine reassembly.

• Desmodromic valve gear: Opening and closing shim adjustment, rocker-arm inspection, timing-belt replacement, tensioning, and pulley timing.

• Fuel-system diagnosis: Mikuni carburetor synchronization, mixture adjustment, circuit explanations, component inspection, and market-specific calibration tables.

• Clutch and transmission: Dry-clutch inspection and assembly, hydraulic release-system bleeding, gearbox inspection, shaft shimming, and selector adjustment.

• Suspension and running gear: Showa fork overhaul, Boge rear shock disassembly and reassembly, wheel-bearing service, chain inspection, and steering-bearing replacement.

• Brakes and electrics: Brembo brake inspection and bleeding, ignition-component tests, charging-system checks, wiring diagrams, and cable-routing illustrations.

Written for Ducati service stations and authorized personnel, this manual assumes workshop experience and the specified measuring equipment and special tools.

Engine Inspection and Desmodromic Timing

The engine overhaul section provides inspection criteria for cylinder wear, piston fit, connecting-rod bearings, crankshaft journals, valve guides, and valve seats. It distinguishes component selection classes and explains crankshaft and gearbox shimming rather than treating reassembly as a simple reversal of removal.

For valve service, the manual separates opening and closing clearances and shows how the adjusters are measured. Its desmodromic layout, lubrication-circuit illustrations, and timing-pulley reference views connect the inspection data with the assemblies being serviced.

Having the clearance tables alongside the disassembly and reassembly instructions supports inspection and parts decisions during an overhaul. The manual also warns that reused self-locking timing-pulley nuts can loosen and cause serious engine damage.

Mikuni Calibration and Running Problems

The carburetor calibration card distinguishes USA-CH specifications from other versions, including different jet needles and needle positions. Synchronization and idle-mixture work is described with a vacuum gauge and exhaust-gas analyzer.

The carburetor chapter explains float, pilot, transition, midrange, main, and starting circuits, with sectional illustrations of the idle and main-metering systems. Its diagnostic discussion connects rich or lean running with blocked passages, float-valve faults, diaphragm problems, and needle or needle-jet wear.

Some of this chapter explains general carburetor designs, including slide-type units and accelerator-pump arrangements. Those examples should not be read as equipment fitted to every covered M900.

Chassis Repair and Electrical Fault Tracing

Suspension coverage extends beyond external adjustment to fork seals and bushings, rear shock internals, and swingarm bearings. The special-tool section identifies the fixtures required for fork work, while the shock overhaul procedure requires dedicated tools and nitrogen-charging equipment.

Brake coverage includes disc inspection, pad replacement, fluid drainage, and bleeding. Steering-bearing replacement and rear-wheel cush-drive inspection are also documented.

The electrical section pairs the main wiring diagram with an ignition-system diagram, component legends, and wire-color codes. Coil and pick-up resistance tests, switch-contact checks, and relay tests support fault tracing; the ignition-module test is expressly limited to identifying faults rather than assessing internal deterioration.

Cable and hydraulic-hose routing plates show critical paths and clamp positions around the frame. The regulator section warns that disconnecting the battery with the engine running can irreparably damage the regulator.

Please ensure you possess the proper tooling and mechanical experience before working on desmodromic valve trains or pressurized systems to avoid component damage or personal injury.

A Preview of Valve and Pick-Up Test Data

For the cold engine, the valve specifications give an intake opening clearance of 0.10–0.12 mm and an exhaust opening clearance of 0.12–0.15 mm. Closing clearance is listed as 0.03–0.05 mm for both intake and exhaust valves.

The electrical testing section specifies 100 Ω ±5% for the ignition pick-up circuit and illustrates the meter connection. These examples show the adjustment and component-test data supplied alongside the repair procedures.
