2003–2007 Ducati Monster S4R Workshop Manual (P/N ED08-03)

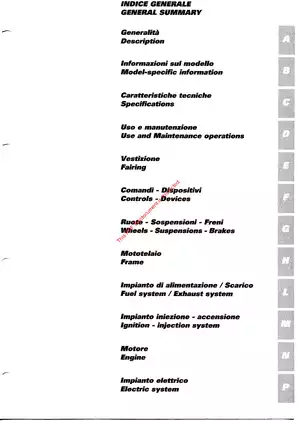

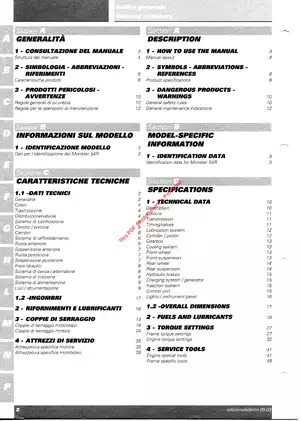

• Ducati workshop manual for the Model Year 2004 Monster S4R, Edition 08-03
• Includes Ducati 2005 update/page-change material in Sections A, B, C, D, N, and P; the manual itself does not state blanket 2003–2007 coverage
• 563-page PDF covering the 996 cm³ 90° L-twin, six-speed transmission, dry multi-plate hydraulic clutch, chassis, fuel injection/ignition, immobilizer, and electrical systems

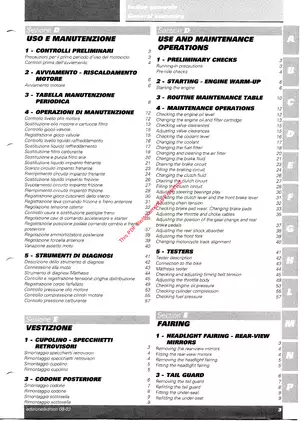

Service and Maintenance Overview

Navigating the maintenance schedule of the S4R requires precise data. This Ducati workshop manual runs from pre-ride checks and the first 1,000 km service through the recurring 1,000, 10,000, 20,000, and 30,000 km maintenance points. The schedule covers engine oil and filter service, valve-clearance checks, timing-belt inspection and tensioning, cooling-system service, brake and clutch hydraulics, chain adjustment, steering checks, wheel and suspension inspection, and fastener verification.

The technical tables give the values needed to judge condition rather than simply identify parts. Engine oil capacity is 3.4 liters, while cooling-system capacity is 2.7 ± 0.5 liters. Timing-belt tension is specified at 110 Hz ± 5 Hz in both horizontal and vertical cylinder positions using the MATHESIS method. Desmodromic rocker clearances are listed separately for intake and exhaust opening and closing rockers, with standard and maximum allowable values.

Engine, Clutch, and Gearbox Repair

The 996 cm³ engine is documented with a 94 mm bore, 66 mm stroke, 11.6 ± 0.5:1 compression ratio, and a 10,000 rpm maximum engine speed. Internal repair coverage goes well beyond routine servicing: complete engine removal and refitting, oil cooler and oil pump work, breather and liquid-cooling circuits, cylinder heads, timing components, camshafts, cylinder/piston assemblies, dry clutch, primary drive, gear-selector mechanism, gearbox shafts, generator, crankcases, crankshaft, and connecting rods are all addressed.

Factory limits are provided for wear and diagnostic work. At 80 °C oil temperature, oil pressure is specified above 0.8 bar at 1,100–1,300 rpm and above 4 bar at 3,500–4,000 rpm. Cylinder compression is listed at 11–12 bar, with 10 bar minimum and no more than 2 bar difference between cylinders. The engine torque tables also show the complete cylinder-head nut sequence: 15 Nm first snug, 30 Nm second snug, then 48 Nm final tightening.

The dry multi-plate clutch and six-speed gearbox receive full repair coverage, including clutch pack inspection and assembly data, clutch drum service, primary gears, selector drum and forks, gear shafts, and gear engagement components. This is the level of detail needed when a repair moves from external adjustment into engine-side disassembly.

Mechanical, Chassis, and Electrical Reference

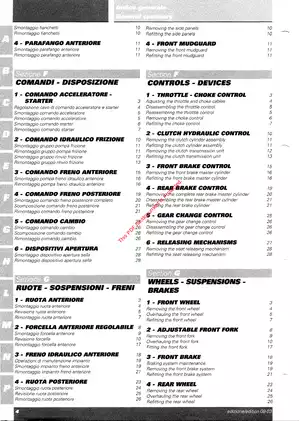

Chassis sections cover the front and rear wheels, Showa adjustable front fork, front and rear Brembo braking systems, swingarm, rear suspension, final drive, steering, frame inspection, stands, footpeg supports, and control assemblies. Brake specifications include disc wear limits, caliper and master-cylinder data, while suspension sections provide fork and shock settings plus inspection dimensions.

For fuel and engine management, the manual documents the Marelli 5.9M CPU, injection/ignition sensors, injectors, fuel pump, pressure regulator, throttle bodies, air-intake system, and exhaust system. MATHESIS diagnostic coverage includes ECU parameter checks, component activation, throttle-position and CO adjustment work, belt-tension measurement, oil-pressure testing, and cylinder-compression testing. The electrical section continues through charging, starting, lighting, protection devices, instrumentation, immobilizer/transponder programming, and multimeter checks.

Factory Tools, Diagrams, and Workshop Procedures

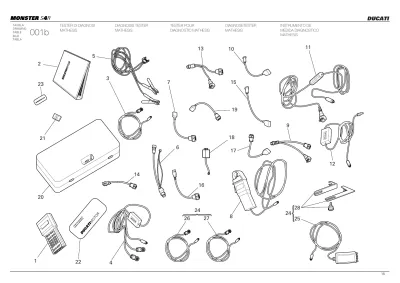

The special-tool section identifies the hardware the factory procedures were written around. Examples include the MATHESIS tester kits 88765.1363A–E, timing-belt roller ring-nut wrench 88700.5644, TDC check gauge 88765.1297, crankshaft gear locking tool 88713.0137, and clutch drum wrench 88713.2133. These references matter when a repair procedure depends on holding, measuring, or positioning a component without damaging it.

Representative visual references include the Injection-Ignition System Diagram, the main Wiring Diagram with connector and pin key, color-coded wire-routing Diagrams A–N, timing-system exploded views, clutch assembly exploded views, and gearbox-shaft exploded views. They are paired with removal/refitting, checking, adjustment, and fault-finding text rather than being parts illustrations alone.

The manual also shows repair details that are easy to miss when working from generic specifications. Timing-belt roller self-locking ring nuts are called out as replacement items after disassembly because loosening can cause serious engine damage. A clutch pressure-plate bearing removed by the specified extraction method is treated as a replacement item rather than a reusable bearing. Connecting-rod parts must remain matched and return to their original mounting position so the original rod-to-crankshaft bearing relationship is not disturbed.

The model-identification section provides European and USA frame/VIN coding plus engine-number identification. No blanket serial-number range is stated. The base publication is identified for Model Year 2004, with separate 2005 update/page-change references in selected sections, so fitment should be checked against the motorcycle’s actual model-year and identification data.
